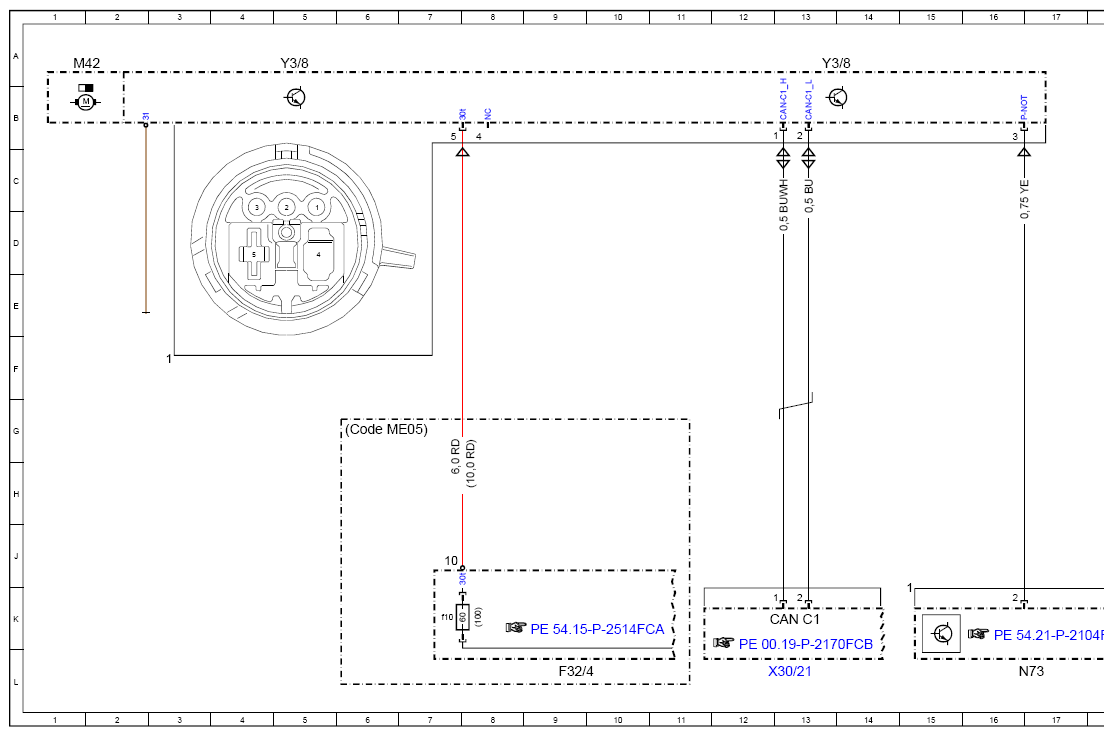

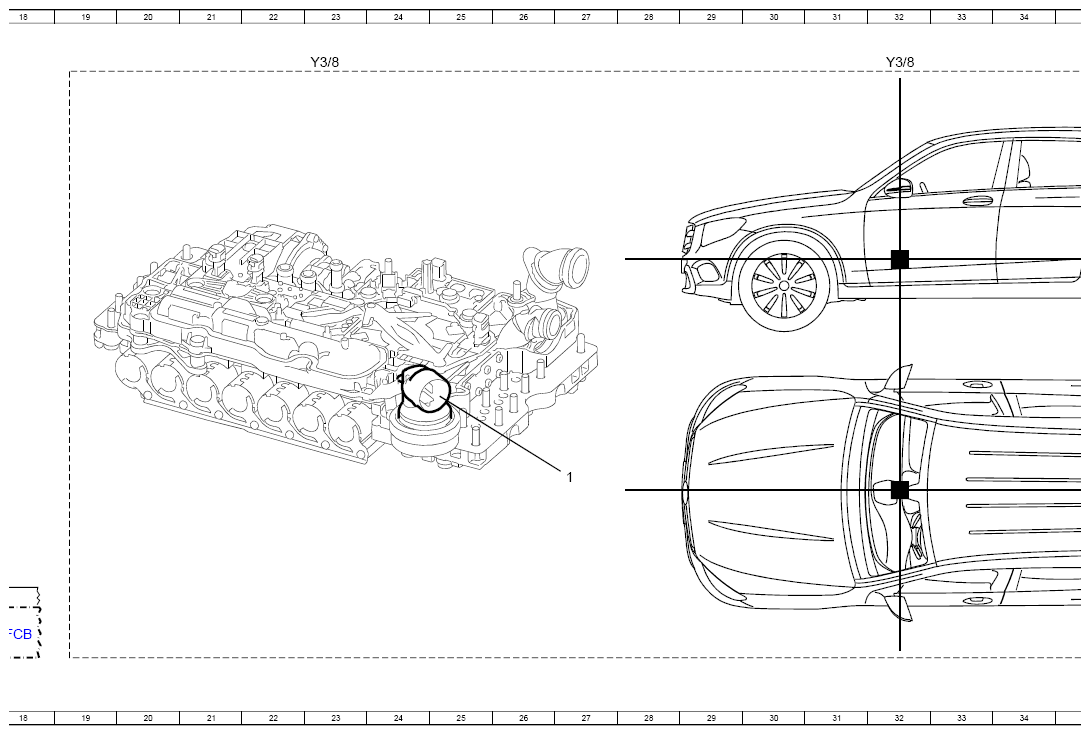

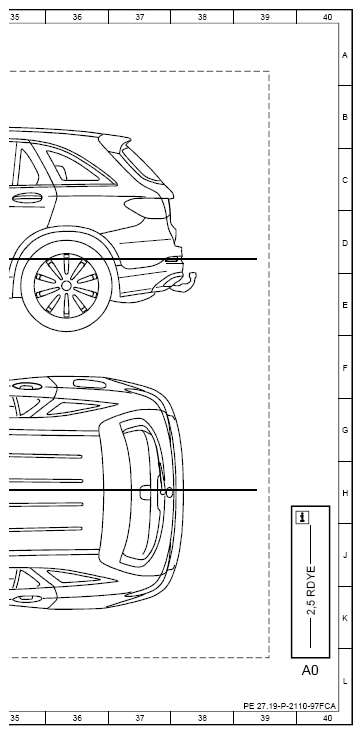

Wiring Diagram For Fully Integrated Transmission Control Electric Controller Unit - PE27.19-P-2110-97FCA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 253 (except 253.99)
as of model year 2020
with code 421 (9-speed automatic transmission)
Component part Y3/8
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 40L |
| CAN C1 | Drive train CAN | 13K |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 6G |
| F32/4 | Vehicle interior prefuse box | 9L |
| F32/4f10 | Fuse 10 | 7K |
| M42 | Electric auxiliary oil pump | 1A |
| N73 | Electronic ignition switch control unit | 17L |
| X30/21 | Drive train CAN (CAN C1) potential distributor electrical connector | 13L |
| Y3/8 | Fully integrated transmission control control unit | 5A |
| Y3/8 | Fully integrated transmission control control unit | 13A |
| Y3/8 | Fully integrated transmission control control unit | 23A |
| Y3/8 | Fully integrated transmission control control unit | 32A |
