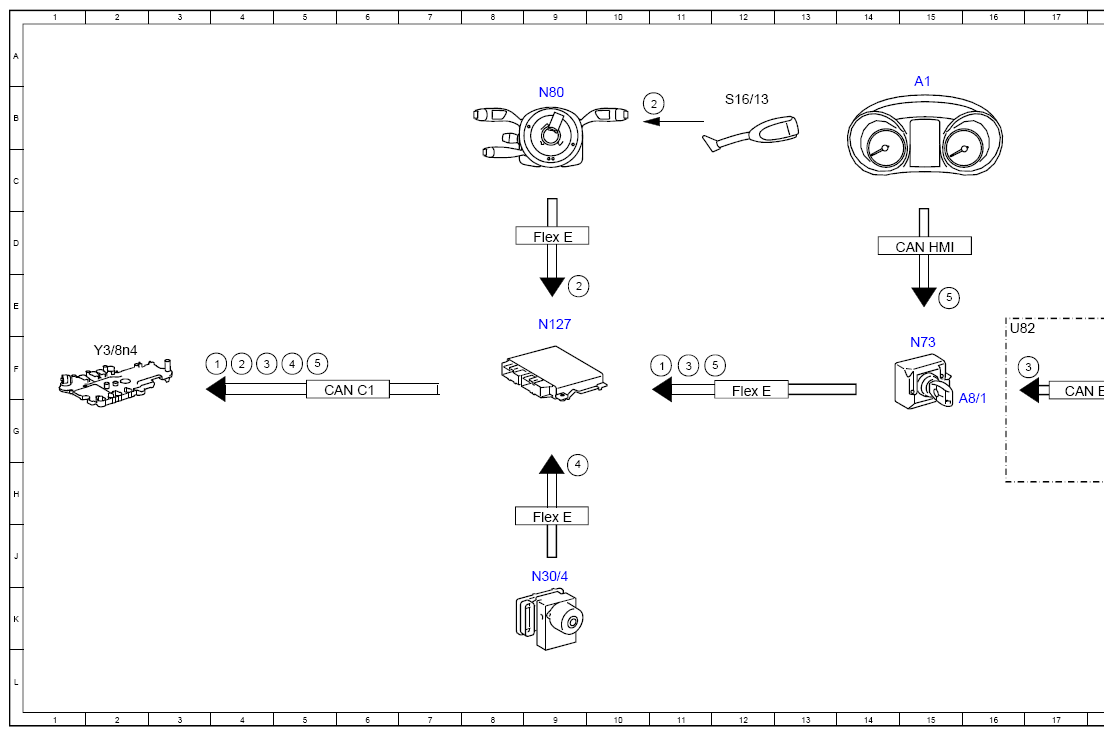

Electrical Function Schematic, Key-P - PE27.19-P-2058-97FBD
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Transmission 725.0 in model 253
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 4F |
| 1 | Circuit 15, status | 11F |
| 2 | DIRECT SELECT lever, status | 4F |
| 2 | DIRECT SELECT lever, status | 9E |
| 2 | DIRECT SELECT lever, status | 11B |
| 3 | Door rotary tumbler switch, status | 4F |
| 3 | Door rotary tumbler switch, status | 11F |
| 3 | Door rotary tumbler switch, status | 17F |
| 4 | Service brake, status | 5F |
| 4 | Service brake, status | 9H |
| 5 | Vehicle speed, signal | 5F |
| 5 | Vehicle speed, signal | 12F |
| 5 | Vehicle speed, signal | 15E |
| A1 | Instrument cluster | 15A |
| A8/1 | Transmitter key | 16G |
| CAN B | Interior CAN | 17F |
| CAN C1 | Drive train CAN | 6F |
| CAN HMI | User interface CAN | 15D |
| Flex E | Chassis FlexRay | 9H |
| Flex E | Chassis FlexRay | 9D |
| Flex E | Chassis FlexRay | 12F |
| N127 | Drivetrain control unit | 9E |
| N30/4 | Electronic Stability Program control unit | 9J |

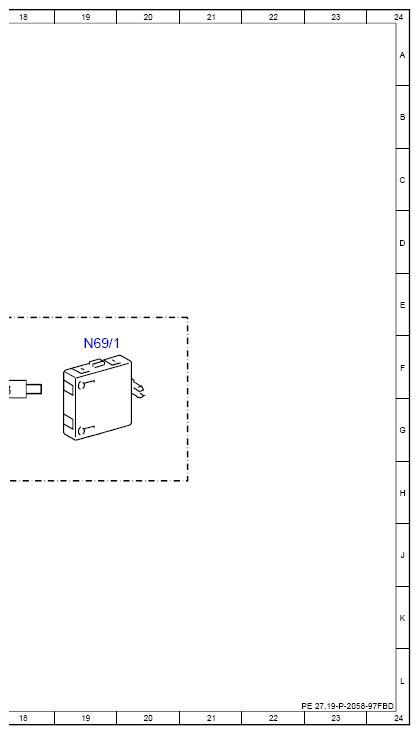

| N69/1 | Left front door control unit | 19F |
| N73 | Electronic ignition switch control unit | 15F |
| N80 | Steering column module control unit | 9B |
| S16/13 | DIRECT SELECT lever | 12B |
| U82 | Valid for KEYLESS GO | 16E |
| Y3/8n4 | Fully integrated transmission control control unit | 2F |
