Differential Lock Control Unit Wiring Diagram - PE27.19-P-2107-97FCA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 253 (except 253.99)
as of model year 2020
with code 467 (Electronic locking differential)
Control unit N3/2
| Code: | Designation: | Position: |
|---|---|---|

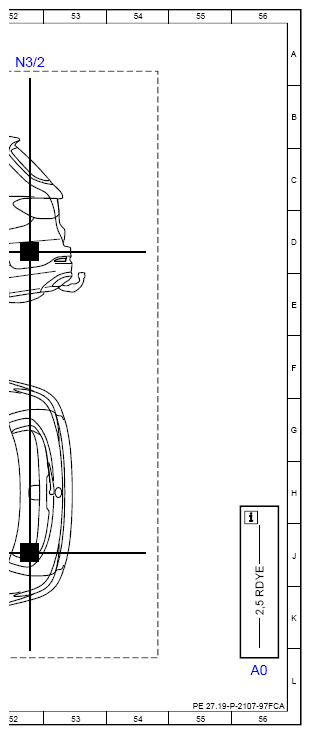

| A0 | Use of wiring diagrams | 56L |
| CAN AMG | AMG CAN | 18K |

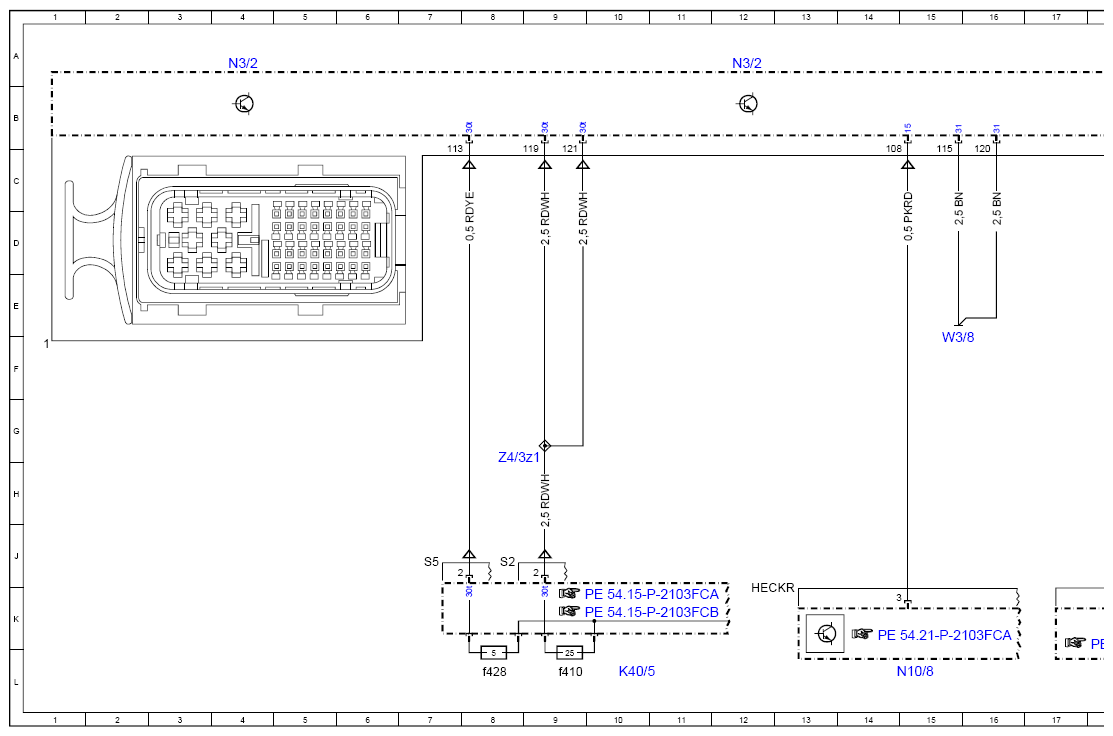

| K40/5 | Rear fuse and relay module | 10L |
| K40/5f410 | Fuse 410 | 9L |
| K40/5f428 | Fuse 428 | 8L |

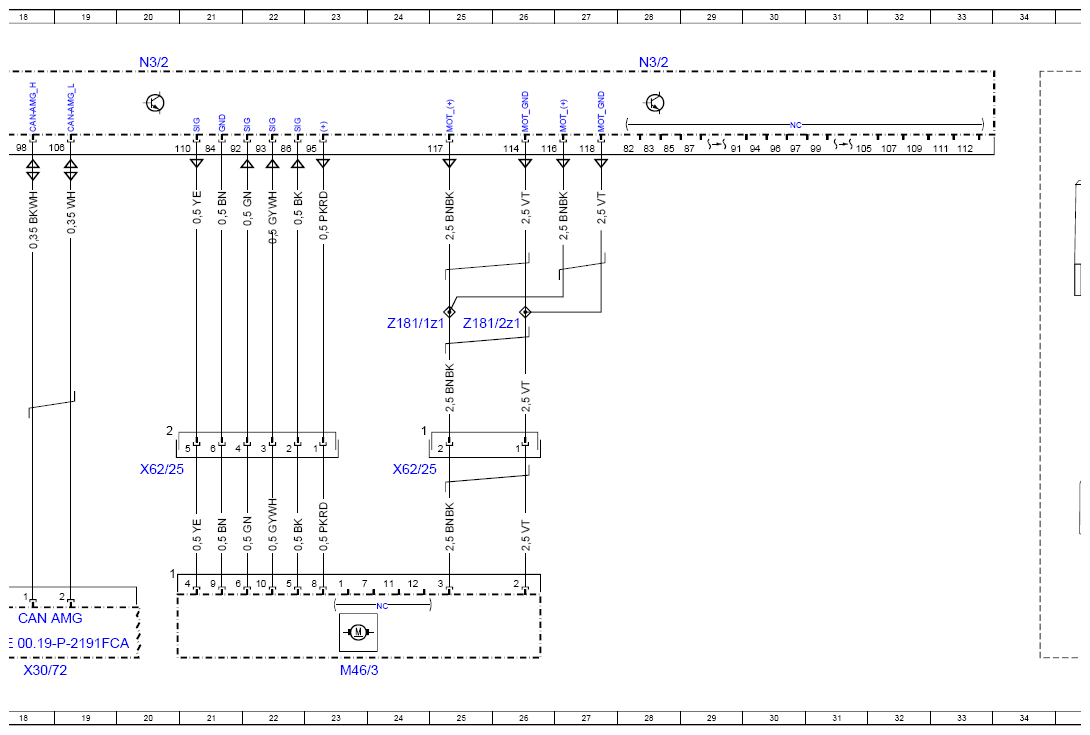

| M46/3 | Differential lock actuator | 23L |
| N10/8 | Rear SAM control unit | 15L |

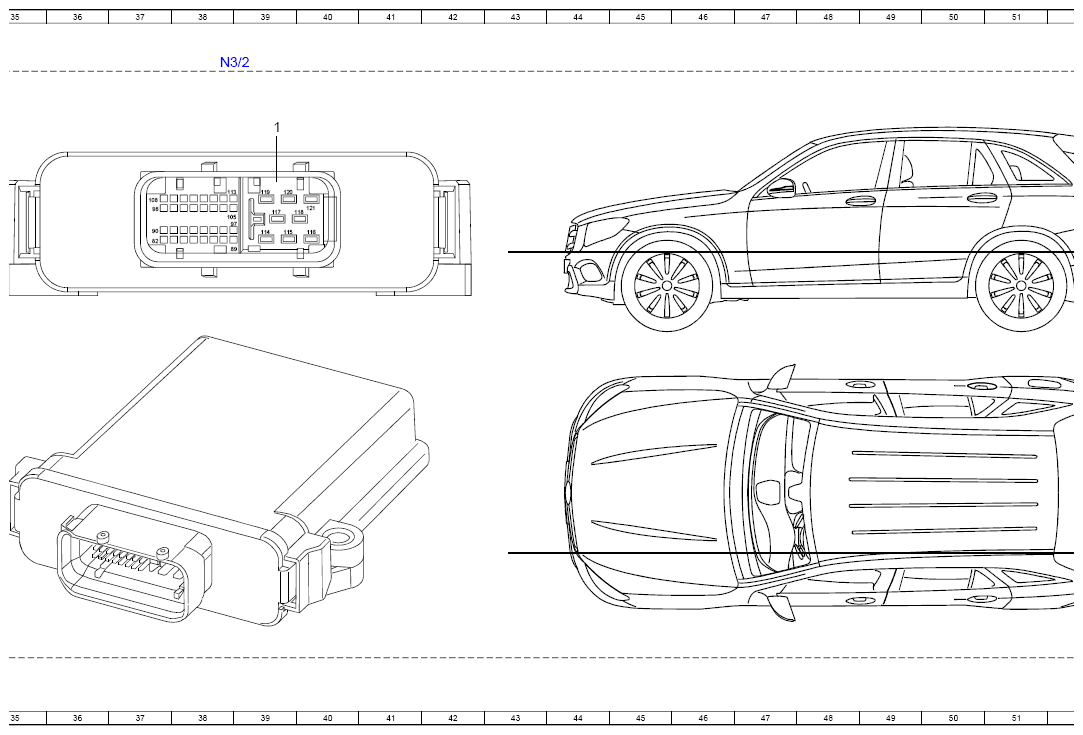

| N3/2 | Electronic differential control unit | 4A |
| N3/2 | Electronic differential control unit | 12A |
| N3/2 | Electronic differential control unit | 20A |
| N3/2 | Electronic differential control unit | 28A |
| N3/2 | Electronic differential control unit | 38A |
| N3/2 | Electronic differential control unit | 52A |
| W3/8 | Right rear wheel well ground point | 15F |
| X30/72 | AMG CAN potential distributor electrical connector | 18L |
| X62/25 | Differential lock electrical connector | 24H |
| X62/25 | Differential lock electrical connector | 20H |
| Z181/1z1 | AMG electric differential connector sleeve (+) | 24E |
| Z181/2z1 | AMG electric differential connector sleeve (-) | 25E |
| Z4/3z1 | Tml. 30 connector sleeve | 8G |
