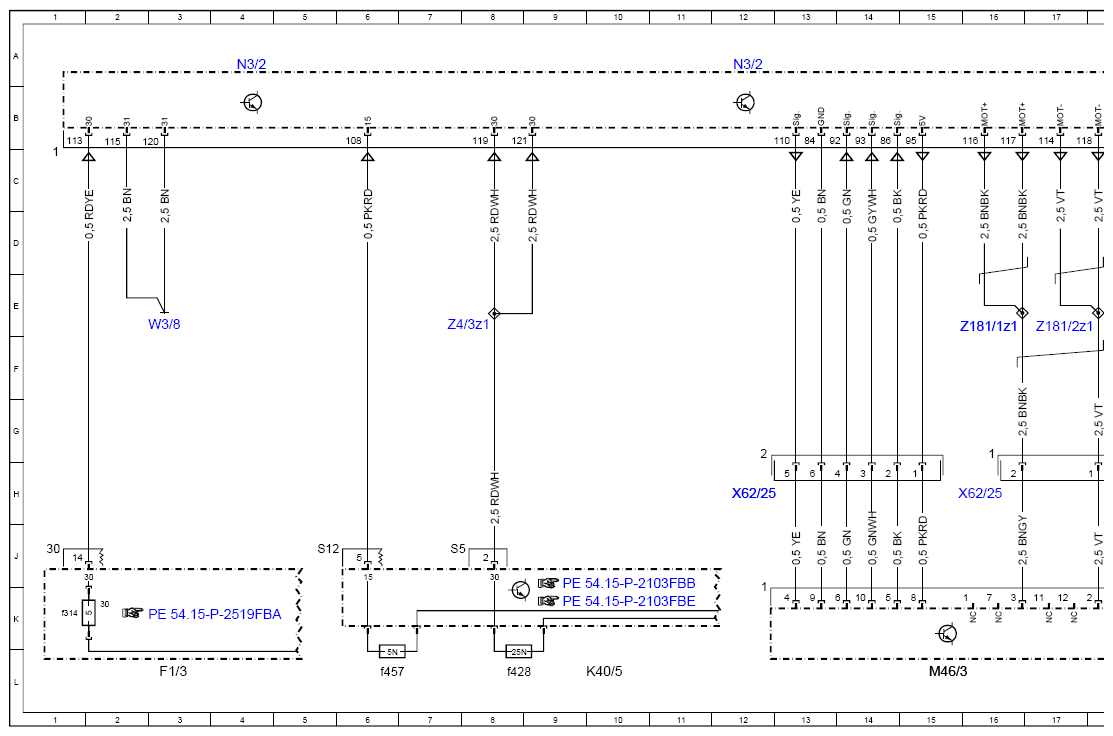

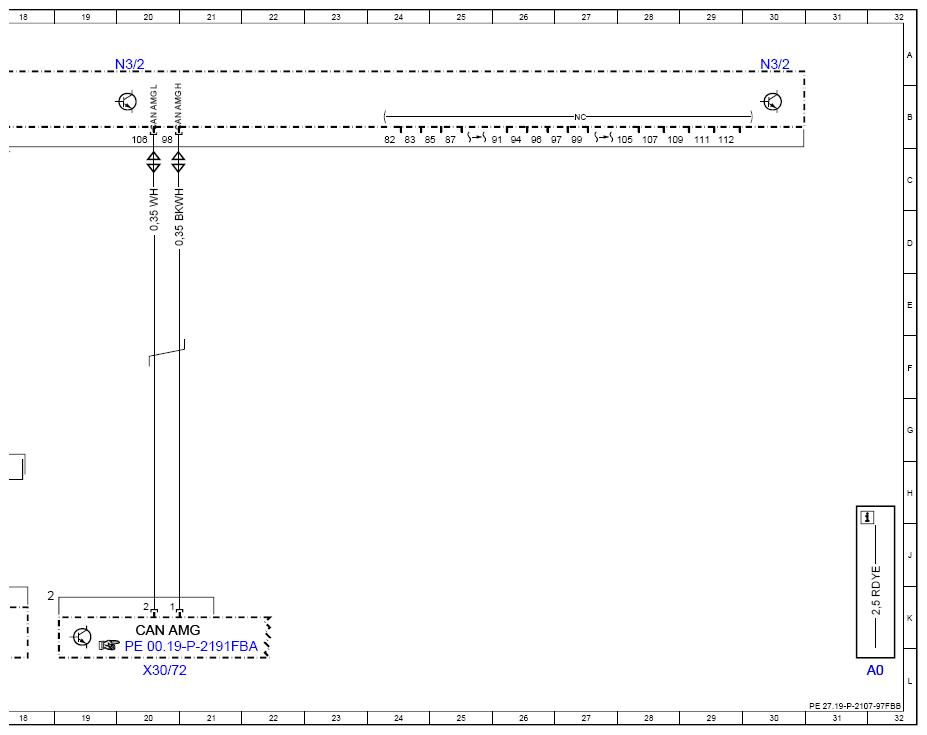

Differential Lock Control Unit Wiring Diagram - PE27.19-P-2107-97FBB
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Transmission 725 in model 253
up to model year 2020
with code 467 (Electronic locking differential)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| CAN AMG | AMG CAN | 20K |
| F1/3 | Passenger-side A-pillar fuse box | 3L |
| F1/3f314 | Fuse 314 | 1K |
| K40/5 | Rear fuse and relay module | 10L |
| K40/5f428 | Fuse 428 | 8L |
| K40/5f457 | Fuse 457 | 6L |
| M46/3 | Differential lock actuator | 15L |
| N3/2 | Electronic differential control unit | 4A |
| N3/2 | Electronic differential control unit | 12A |
| N3/2 | Electronic differential control unit | 20A |
| N3/2 | Electronic differential control unit | 30A |
| W3/8 | Right rear wheel well ground point | 3E |
| X30/72 | AMG CAN potential distributor electrical connector | 20L |
| X62/25 | Differential lock electrical connector | 16H |
| X62/25 | Differential lock electrical connector | 12H |
| Z181/1z1 | AMG electric differential connector sleeve (+) | 16E |
| Z181/2z1 | AMG electric differential connector sleeve (-) | 17E |
| Z4/3z1 | Tml. 30 connector sleeve | 8E |
