Disassemble/Assemble Planetary Gear Set 4 - AR27.50-P-0623-04EWM

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Transmission 725.0/1

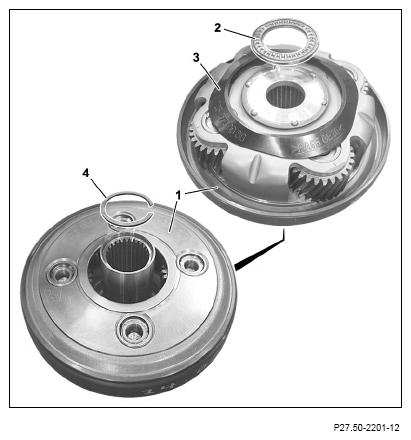

Unclip thrust bearing (2) from planetary gear set 4 (1).
Detach oil duct (3).
Assembly : Check oil duct (3) for damage and replace, if necessary.
Detach adjusting disk (4) from planetary gear set 4 (1) (underside).
Assembly : The adjusting disk (4) has to be determined, as this is required for the axial play of the transmission.
Assemble in the reverse order.

Courtesy of MERCEDES-BENZ USA
