Disassemble/Assemble Planetary Gear Set 3 - AR27.50-P-0623-03EWM

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Transmission 725.0/1

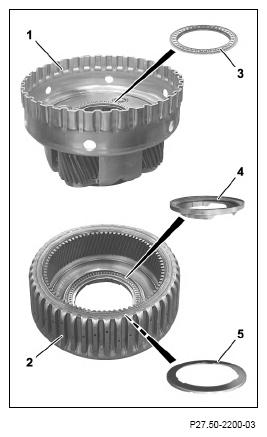

Remove planetary gear set 3 (1) from annulus gear (2).
Unclip thrust bearing (3) from planetary gear set 3 (1).
Check thrust bearing (3) for damage and replace, if necessary.
Unclip thrust bearing (4, 5) from annulus gear (2).
Check thrust bearing (4, 5) for damage and replace, if necessary.

Assembly : Check thrust bearing (4, 5) is in correct installation position (arrow). Thrust bearings (4, 5) must be lined up.
Assemble in the reverse order.

Courtesy of MERCEDES-BENZ USA
