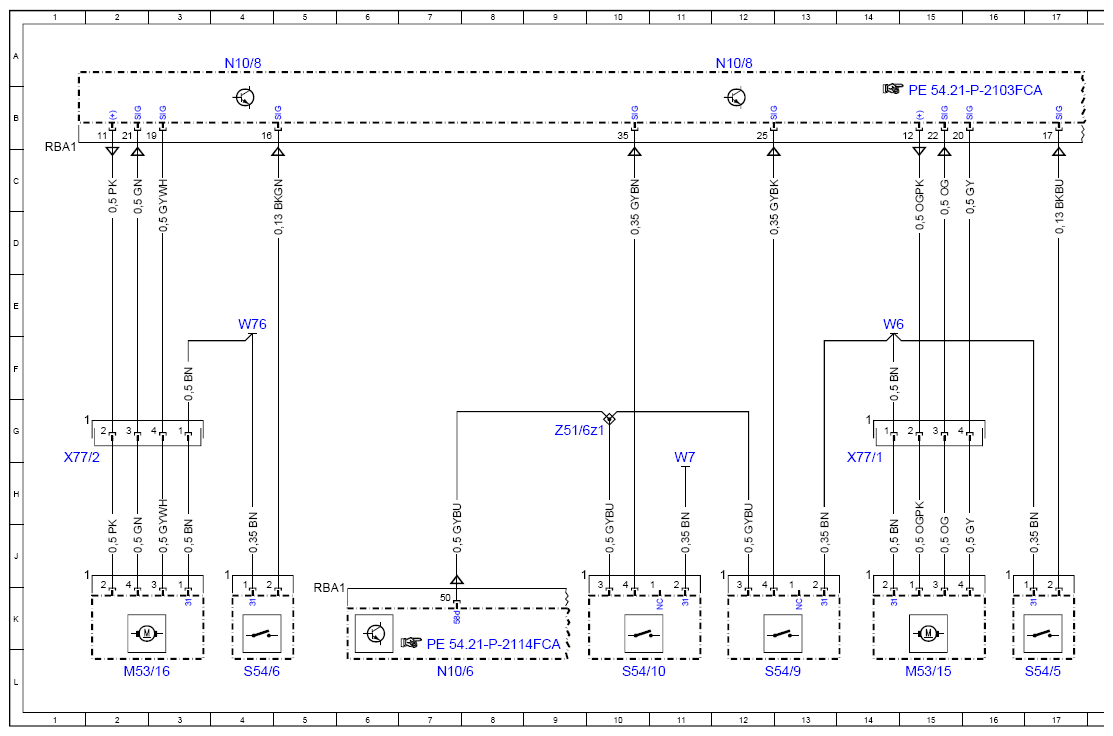

Wiring Diagram For Rear Seat Adjustment/Release - PE91.29-P-2007-97FCA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 253 (except 253.99)
as of model year 2020
MODEL 253.99
as of model year 2019
with code 9O1 (Fuel cell pre-installation)
| Code: | Designation: | Position: |
|---|---|---|

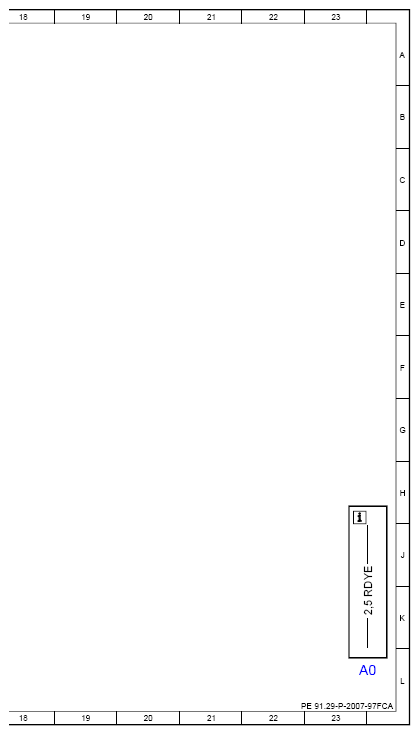

| A0 | Use of wiring diagrams | 23L |
| M53/15 | Left rear backrest release actuator | 15L |
| M53/16 | Right rear backrest release actuator | 2L |
| N10/6 | Front SAM control unit | 7L |
| N10/8 | Rear SAM control unit | 4A |
| N10/8 | Rear SAM control unit | 12A |
| S54/10 | Right luggage compartment rear backrest release button | 10L |
| S54/5 | Left rear backrest inclination switch | 17L |
| S54/6 | Right rear backrest inclination switch | 4L |
| S54/9 | Left luggage compartment rear backrest release button | 12L |
| W6 | Left wheel arch trunk ground point | 14E |
| W7 | Right wheelhouse trunk ground point | 11H |
| W76 | Fuel pump ground point | 4E |
| X77/1 | Left rear backrest release actuator electrical connector | 14H |
| X77/2 | Right rear backrest release actuator electrical connector | 1H |
| Z51/6z1 | Circuit 58d vehicle interior connector sleeve | 9G |
