Wiring Diagram For Multicontour Seat Control Unit - PE91.25-P-2103-97FCA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 253 (except 253.99)
as of model year 2020
with code 409 (Left and right front multicontour seat)

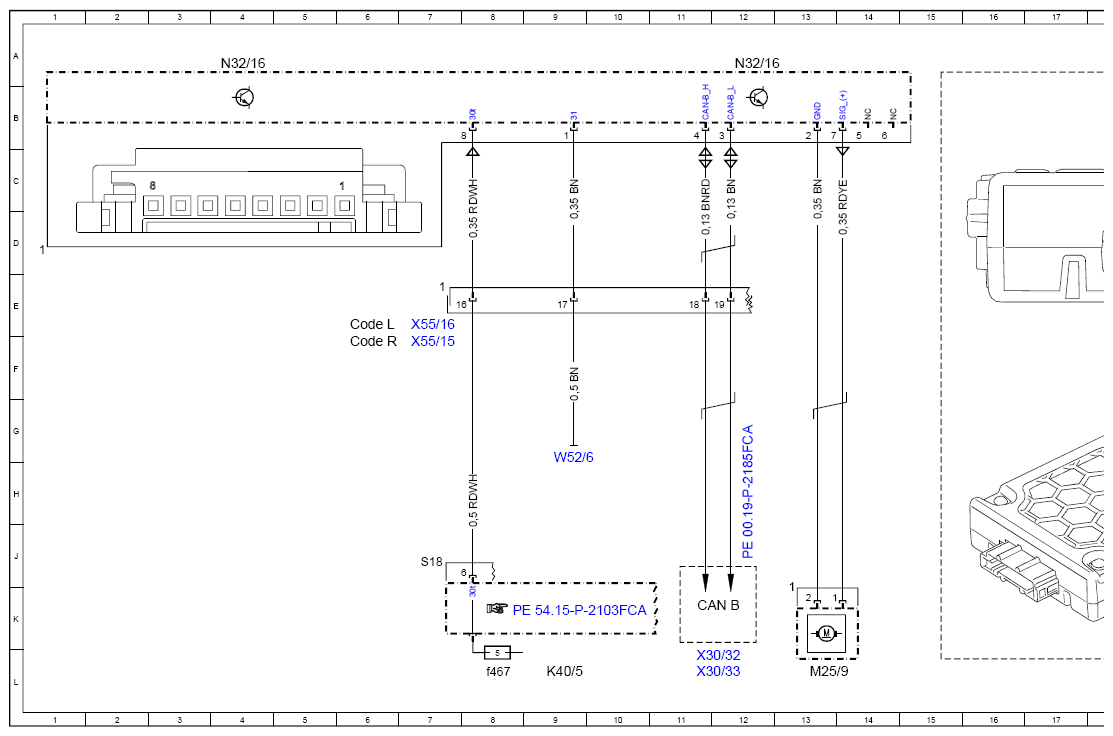

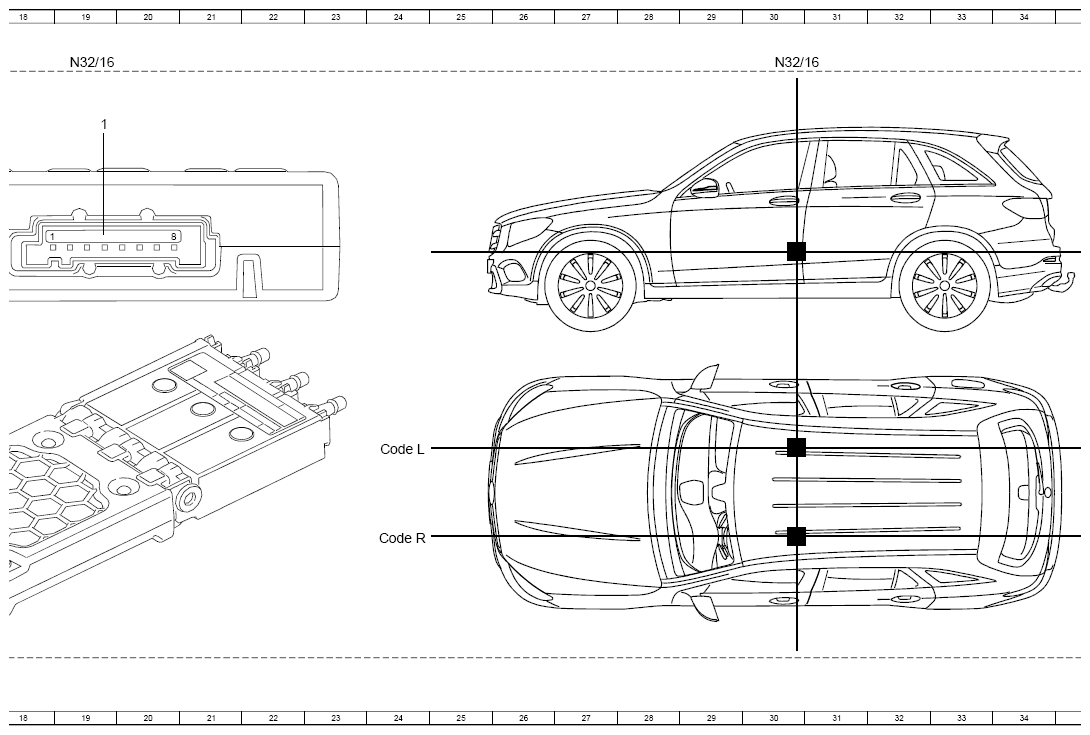

Control unit N32/16
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 40L |
| CAN B | Interior CAN | 11K |
| Code L | LEFT-HAND DRIVE | 6E |
| Code L | LEFT-HAND DRIVE | 24G |
| Code R | RIGHT-HAND DRIVE | 6F |
| Code R | RIGHT-HAND DRIVE | 24J |
| K40/5 | Rear fuse and relay module | 9L |
| K40/5f467 | Fuse 467 | 8L |
| M25/9 | Right front multicontour seat pneumatic pump | 13L |
| N32/16 | Right front multicontour seat control unit | 4A |
| N32/16 | Right front multicontour seat control unit | 12A |
| N32/16 | Right front multicontour seat control unit | 19A |
| N32/16 | Right front multicontour seat control unit | 30A |
| W52/6 | Right center longitudinal member ground point | 9H |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 11L |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 11L |
| X55/15 | Driver seat electrical connector | 7F |
| X55/16 | Front passenger seat electrical connector | 7E |
