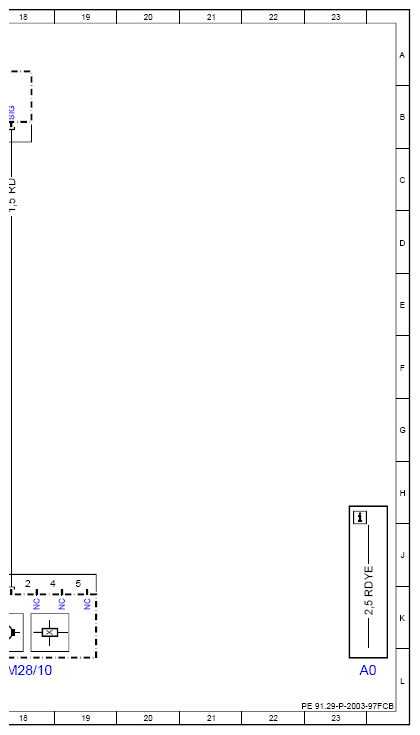

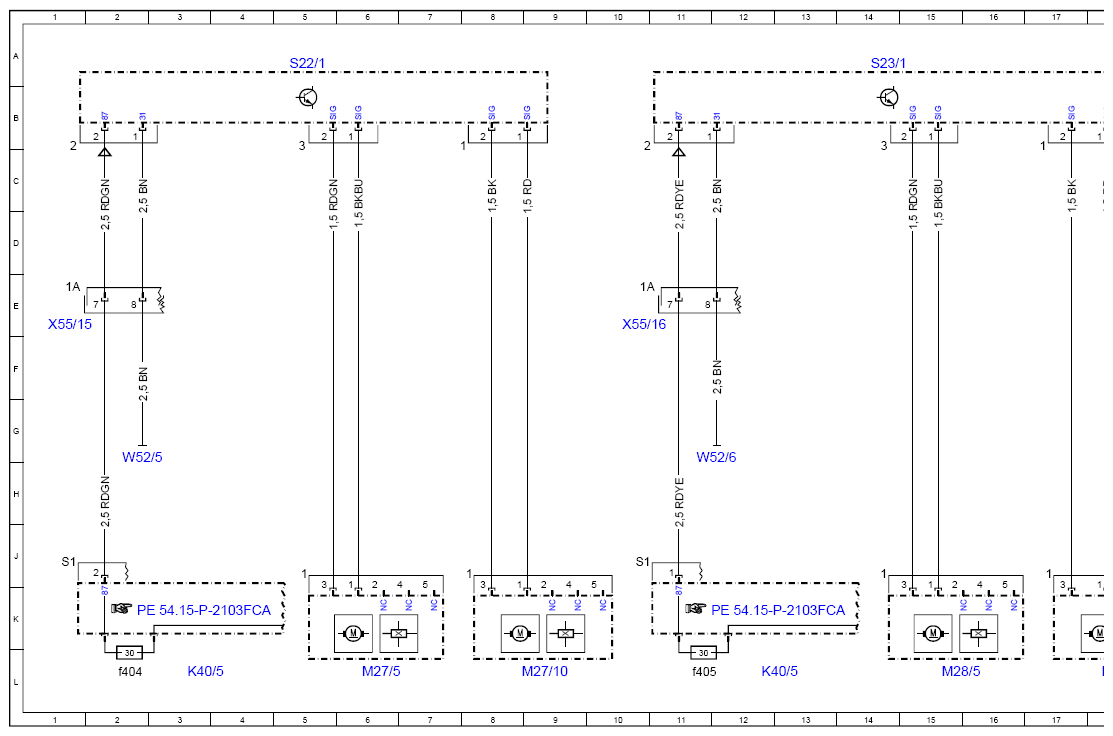

Partially Electric Seat Adjustment (ESA (ESV)) Wiring Diagram - PE91.29-P-2003-97FCB
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 253 (except 253.99)
as of model year 2020
except code P65 (Ergonomics package)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |
| K40/5 | Rear fuse and relay module | 3L |
| K40/5 | Rear fuse and relay module | 12L |
| K40/5f404 | Fuse 404 | 2L |
| K40/5f405 | Fuse 405 | 11L |
| M27/10 | Driver seat height adjustment motor | 9L |
| M27/5 | Driver seat backrest inclination adjustment motor | 6L |
| M28/10 | Front passenger seat height adjustment motor | 18L |
| M28/5 | Front passenger seat backrest inclination adjustment motor | 15L |
| S22/1 | Driver seat partially electric seat adjustment switch | 5A |
| S23/1 | Front passenger seat partially electric seat adjustment switch | 14A |
| W52/5 | Left center longitudinal member ground point | 2H |
| W52/6 | Right center longitudinal member ground point | 11H |
| X55/15 | Driver seat electrical connector | 1E |
| X55/16 | Front passenger seat electrical connector | 10E |
