Partially Electric Seat Adjustment (ESA (ESV)) Wiring Diagram - PE91.29-P-2003-97FBB
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 205
up to model year 2019
except code P65 (Ergonomics package) S22/1_S23/1
MODEL 253 (except 253.99)
up to model year 2020
except code P65 (Ergonomics package) S22/1_S23/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 48L |
| Code 401 | Seat climate control for driver and front passenger | 13D |
| Code 401 | Seat climate control for driver and front passenger | 35D |
| Code 873 | Seat heater for driver and front passenger | 13D |
| Code 873 | Seat heater for driver and front passenger | 35D |
| Code F205 | MODEL SERIES 205 | 24D |
| Code F205 | MODEL SERIES 205 | 5D |
| Code FA | CABRIOLET | 24D |
| Code FA | CABRIOLET | 5D |
| Code FC | COUPE | 24D |
| Code FC | COUPE | 5D |

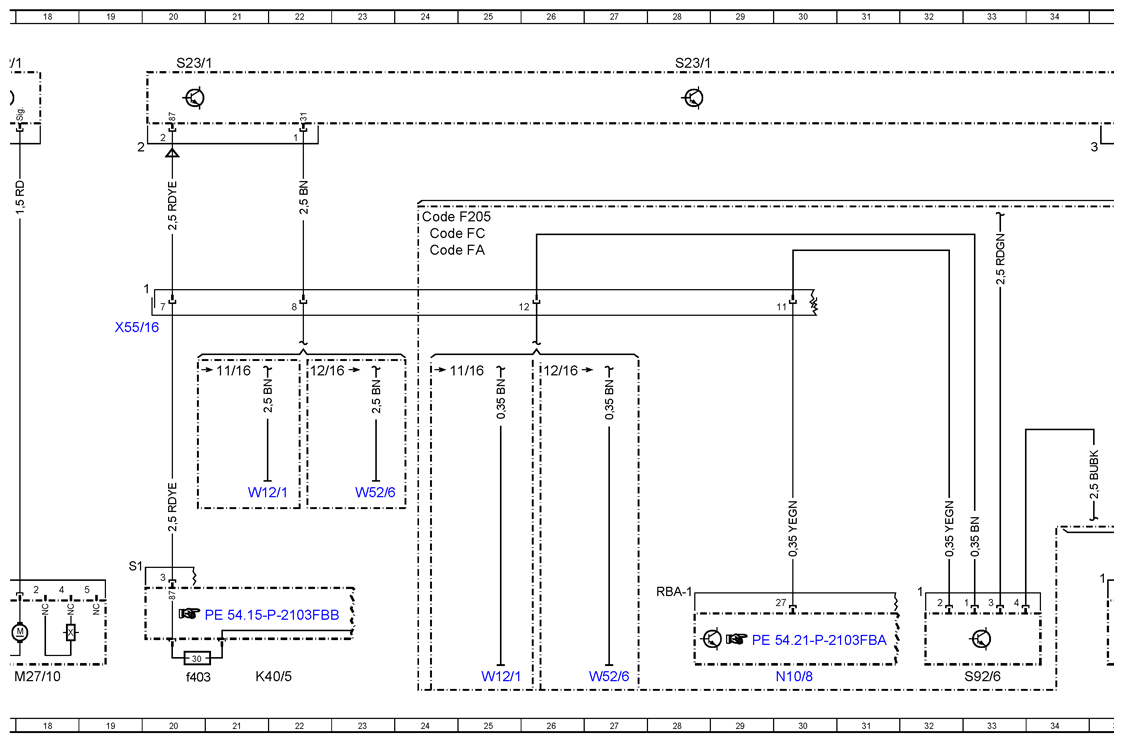

| K40/5 | Rear fuse and relay module | 3L |
| K40/5 | Rear fuse and relay module | 21L |
| K40/5f403 | Fuse 403 | 20L |
| K40/5f404 | Fuse 404 | 2L |
| M27/10 | Driver seat height adjustment motor | 18L |
| M27/5 | Driver seat backrest inclination adjustment motor | 14L |

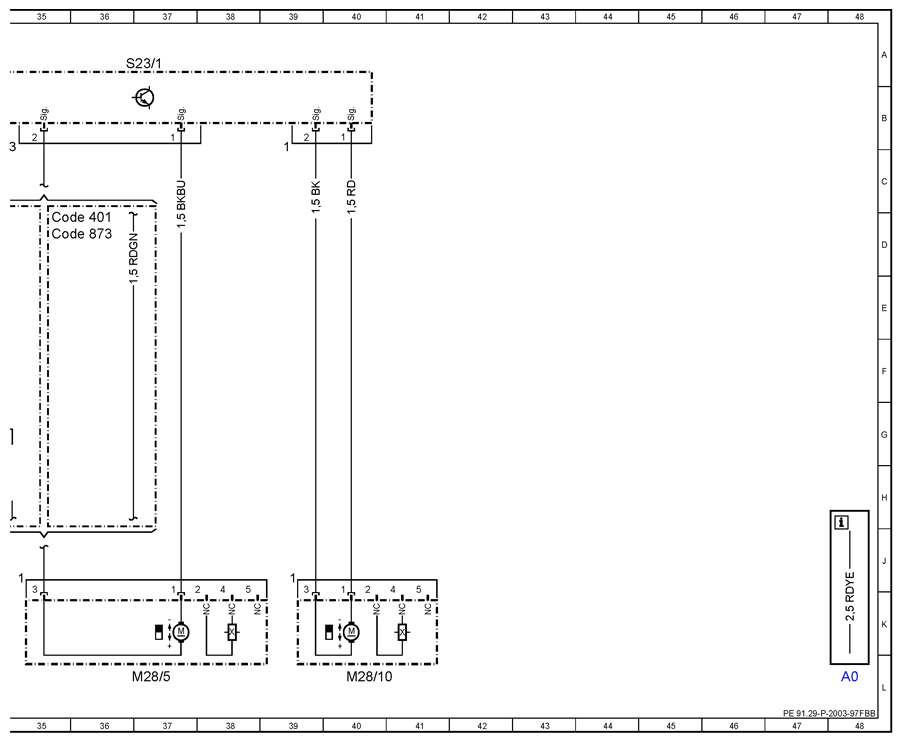

| M28/10 | Front passenger seat height adjustment motor | 40L |
| M28/5 | Front passenger seat backrest inclination adjustment motor | 37L |
| N10/8 | Rear SAM control unit | 7L |
| N10/8 | Rear SAM control unit | 30L |

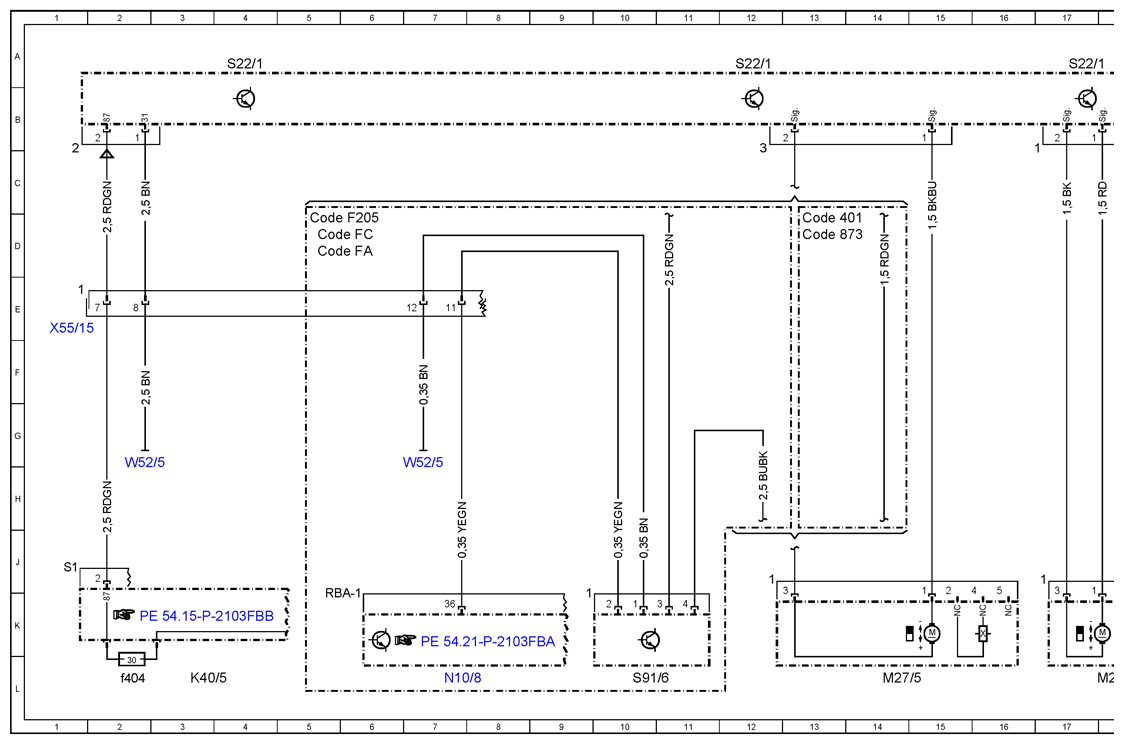

| S22/1 | Driver seat partially electric seat adjustment switch | 4A |
| S22/1 | Driver seat partially electric seat adjustment switch | 12A |
| S22/1 | Driver seat partially electric seat adjustment switch | 17A |
| S23/1 | Front passenger seat partially electric seat adjustment switch | 20A |
| S23/1 | Front passenger seat partially electric seat adjustment switch | 28A |
| S23/1 | Front passenger seat partially electric seat adjustment switch | 37A |
| S91/6 | Left backrest release/inclination microswitch | 10L |
| S92/6 | Right backrest release/inclination microswitch | 33L |
| W12/1 | Right center console ground point | 21H |
| W12/1 | Right center console ground point | 25L |
| W52/5 | Left center longitudinal member ground point | 2H |
| W52/5 | Left center longitudinal member ground point | 7H |
| W52/6 | Right center longitudinal member ground point | 23H |
| W52/6 | Right center longitudinal member ground point | 27L |
| X55/15 | Driver seat electrical connector | 1E |
| X55/16 | Front passenger seat electrical connector | 19E |
