Remove/Install Rear Seat Belts - AR91.40-P-0681LWS

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 205.2

MODEL 253, 293

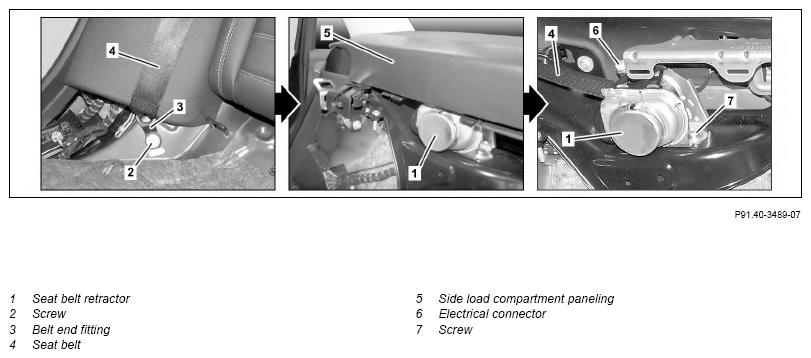

Fig 1: Rear Seat Belts Components Location - Model 253 (Shown On Model 205.2)

Courtesy of MERCEDES-BENZ USA

Shown on model 205.2, on right side of vehicle

	Risk of injury during testing and repair operations related to pyrotechnical components	Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts.	AS91.00-Z-0008-01A
	Risk of injury . Injury may result when the tension in the spring in the automatic belt retractor is released.	Never disassemble automatic belt retractors.	AS91.00-Z-0002-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Information, assessment and legal requirements when working with, handling and storing pyrotechnical components		AH91.00-Z-0000-10A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Remove seat cushion in rear passenger compartment.	Model 205.2 with code 248 (Rear seat with integrated child seat) Model 205.2 with code P10 (Taxi package Germany)	AR91.12-P-1020LWA
		Model 205.2 except code 248 (Rear seat with integrated child seat) except code P10 (Taxi package Germany) Model 253, 293	AR91.12-P-1020LW
2	Unclip cover over belt end fitting.	Model 253, 293
3	Remove screw/bolt (2).	Bolt, rear belt end fitting	*BA91.40-P-1005-01U
4	Unclip seat belt end fitting (3).	Hold seat belt (4) when unclipping and then guide slowly upwards. Otherwise, the surrounding panels and components can be damaged.
5	Remove side load compartment trim (5).	Model 253 (except 253.992/993), 293	AR68.30-P-1180LWG
		Model 253.992/993	AR68.30-P-1180RFW
		Model 205.2	AR68.30-P-1180LWS
6	Disconnect ground line from battery.	Model 293	AR54.10-P-0003EQ
		Model 205.2 Model 253	AR54.10-P-0003LW
7	Release and disconnect electrical connector (6).
8	Unscrew bolt (7).	Bolt, rear seat belt retractor	*BA91.40-P-1006-01U
9	Unclip seat belt retractor (1) with seat belt (4) and remove upwards.	Ensure correct seating of belt retractor (1).
10	Install in the reverse order
11	Check Supplemental Restraint System (SRS) using vehicle diagnosis system.	When replacing the seat belt retractor (1).
		Model 293	AD00.00-P-2000-06FR
		Model 205.2	AD00.00-P-2000-04B
		Model 253

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 205.2	Model 253
BA91.40-P-1005-01U	Bolt, rear belt end fitting	Nm	35	35

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 293
BA91.40-P-1005-01U	Bolt, rear belt end fitting	Nm	30

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 205.2	Model 253
BA91.40-P-1006-01U	Bolt, rear seat belt retractor	Nm	35	35

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 293
BA91.40-P-1006-01U	Bolt, rear seat belt retractor	Nm	30
