Remove/Install Passenger Airbag Unit - AR91.60-P-0680LW
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 205
MODEL 253
MODEL 293
Shown on model 205
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on safety-relevant components | AH00.00-Z-0019-01A | |
| Notice | Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | |
| Remove/install | |||

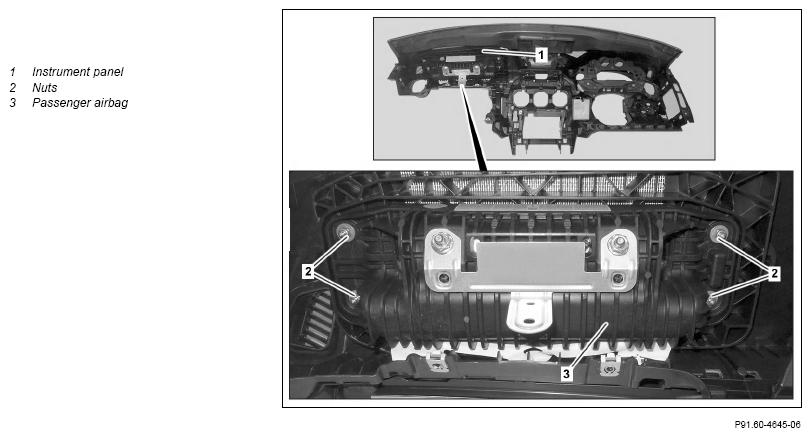

| 1 | Remove instrument panel (1). | Model 293 | AR68.10-P-1000EQ |
| Model 205 Model 253 |
AR68.10-P-1000LW | ||
| 2 | Unscrew nuts (2). | *BA91.60-P-1001-01O | |
| 3 | Remove front passenger airbag (3). | ||
| 4 | Install in the reverse order. | ||
| 5 | Check Supplemental Restraint System (SRS) using vehicle diagnosis system. | ||
| Model 293 | AD00.00-P-2000-06FR | ||
| Model 205 Model 253 |
AD00.00-P-2000-04B |
AIRBAG
| Number | Designation | Model 205.0/1/2/3 | Model 205.4 | |
|---|---|---|---|---|
| BA91.60-P-1001-01O | Nut, front passenger airbag unit to instrument panel | Nm | 5 | 5 |
AIRBAG
| Number | Designation | Model 253 | Model 293 | |
|---|---|---|---|---|
| BA91.60-P-1001-01O | Nut, front passenger airbag unit to instrument panel | Nm | 5 | 5 |
