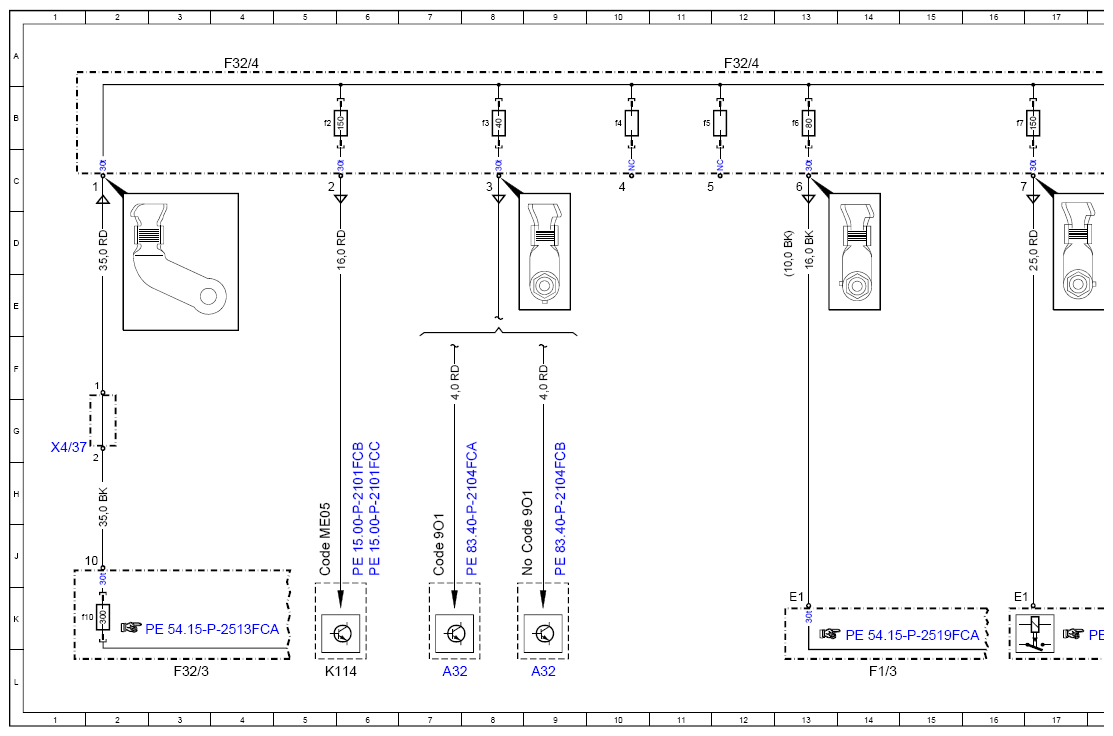

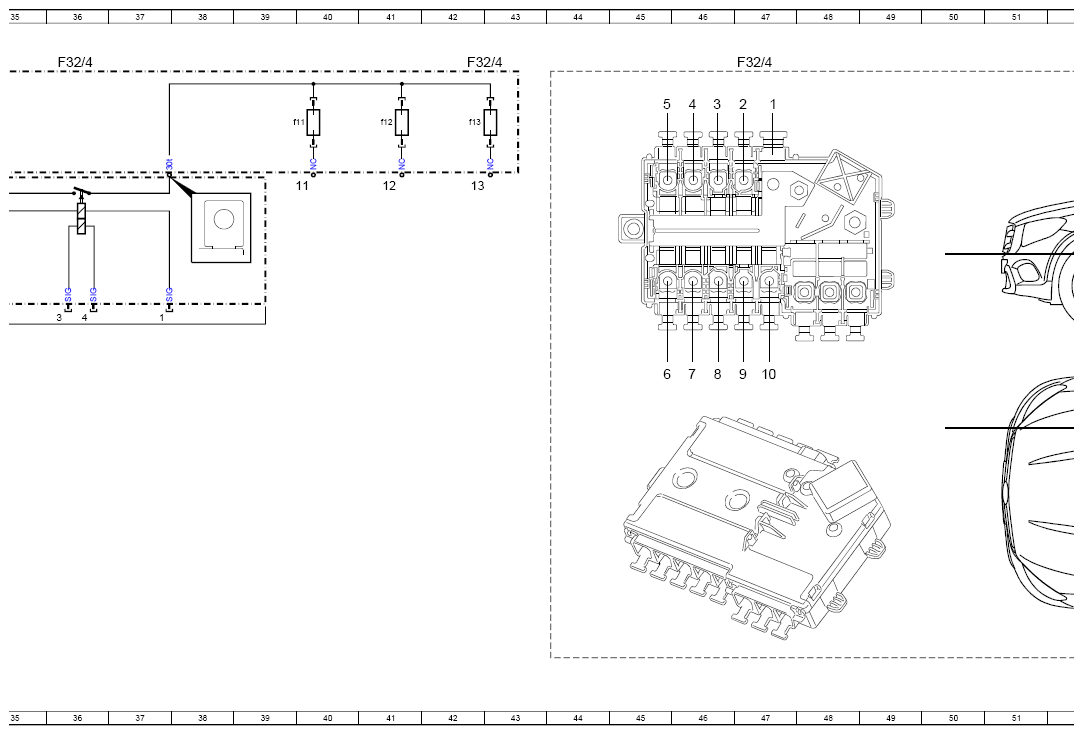

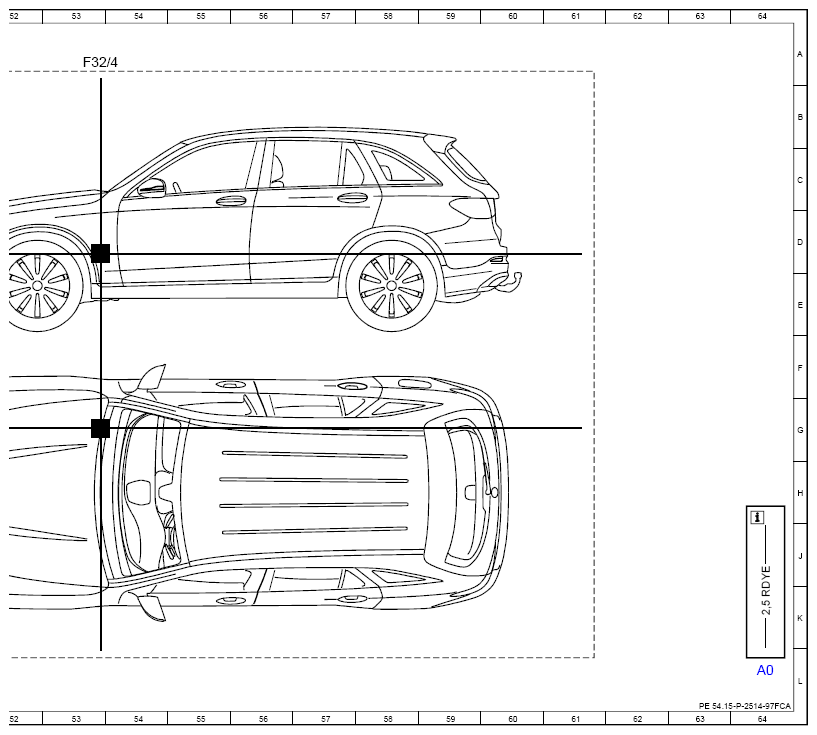

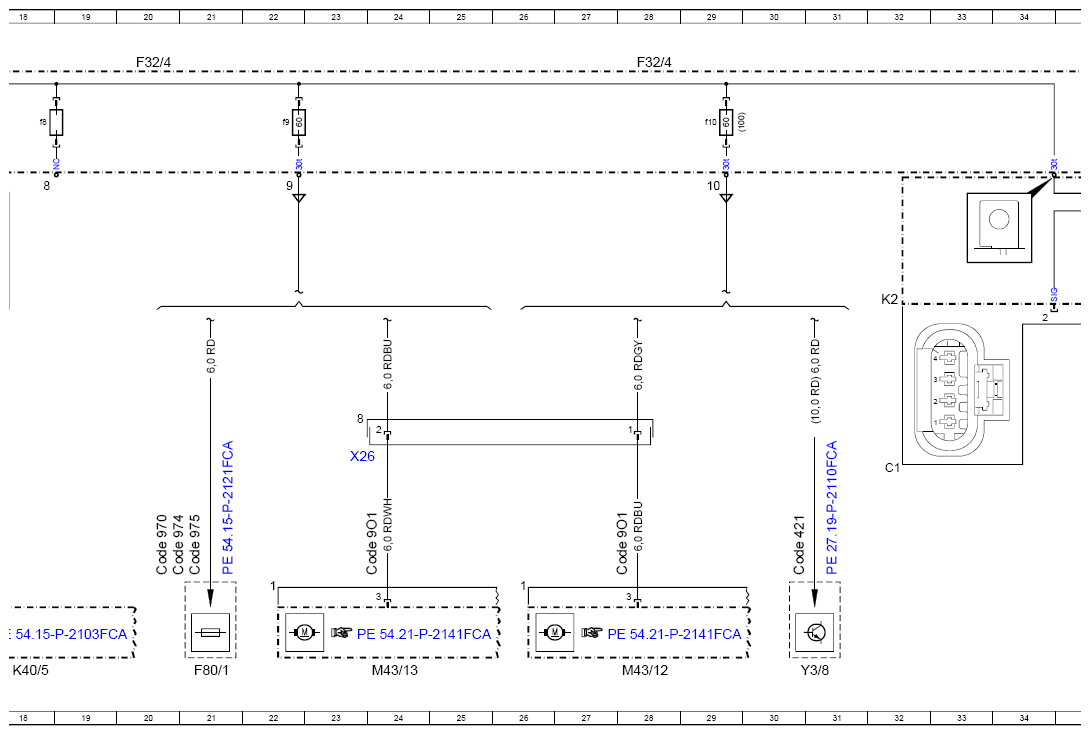

Wiring Diagram, Interior Pre-fuse Box (F32/4) - PE54.15-P-2514-97FCA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.99) as of model year 2020
Model 253.99 as of model year 2019 with code 9O1 (Fuel cell pre-installation)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 64L |
| A32 | AC housing | 7L |
| A32 | AC housing | 9L |
| Code 421 | 9G-TR0NIC PLUS | 30J |
| Code 970 | Police emergency vehicles | 20J |
| Code 974 | Fire department lead emergency vehicle preinstallation | 21J |
| Code 975 | Emergency physician vehicle preinstallation | 21J |
| Code 901 | Fuel cell retrofitting | 9J |
| Code 901 | Fuel cell retrofitting | 7J |
| Code 901 | Fuel cell retrofitting | 28J |
| Code 901 | Fuel cell retrofitting | 24J |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 5J |
| F1/3 | Passenger-side A-pillar fuse box | 14L |
| F32/3 | Engine compartment Pre-fuse box | 3L |
| F32/3f10 | Fuse 10 | 1K |
| F32/4 | Vehicle interior Pre-fuse box | 12A |
| F32/4 | Vehicle interior Pre-fuse box | 4A |
| F32/4 | Vehicle interior Pre-fuse box | 20A |
| F32/4 | Vehicle interior Pre-fuse box | 28A |
| F32/4 | Vehicle interior Pre-fuse box | 42A |
| F32/4 | Vehicle interior Pre-fuse box | 36A |
| F32/4 | Vehicle interior Pre-fuse box | 47A |
| F32/4 | Vehicle interior Pre-fuse box | 53A |
| F32/4f10 | Fuse 10 | 29B |
| F32/4f11 | Fuse 11 | 39B |
| F32/4f12 | Fuse 12 | 41B |
| F32/4f13 | Fuse 13 | 42B |
| F32/4f2 | Fuse 2 | 5B |
| F32/4f3 | Fuse 3 | 8B |
| F32/4f4 | Fuse 4 | 10B |
| F32/4f5 | Fuse 5 | 11B |
| F32/4f6 | Fuse 6 | 13B |
| F32/4f7 | Fuse 7 | 16B |
| F32/4f8 | Fuse 8 | 18B |
| F32/4f9 | Fuse 9 | 22B |
| F80/1 | Special-purpose vehicle fuse block 1 | 21L |
| K114 | ECO start/stop function additional battery relay | 5L |
| K40/5 | Rear fuse and relay module | 18L |
| M43/12 | Left fuel cell cooling coolant pump | 28L |
| M43/13 | Center fuel cell cooling coolant pump | 24L |
| X26 | Interior and engine wiring harness electrical connector | 23H |
| X4/37 | Terminal block (circuit 30) | 1G |
| Y3/8 | Fully integrated transmission control control unit | 31L |
