Wiring Diagram Of Passenger-Side A-Pillar Fuse Box - PE54.15-P-2519-97FCB
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.99) as of model year 2020 F1/3
| Code: | Designation: | Position: |
|---|---|---|

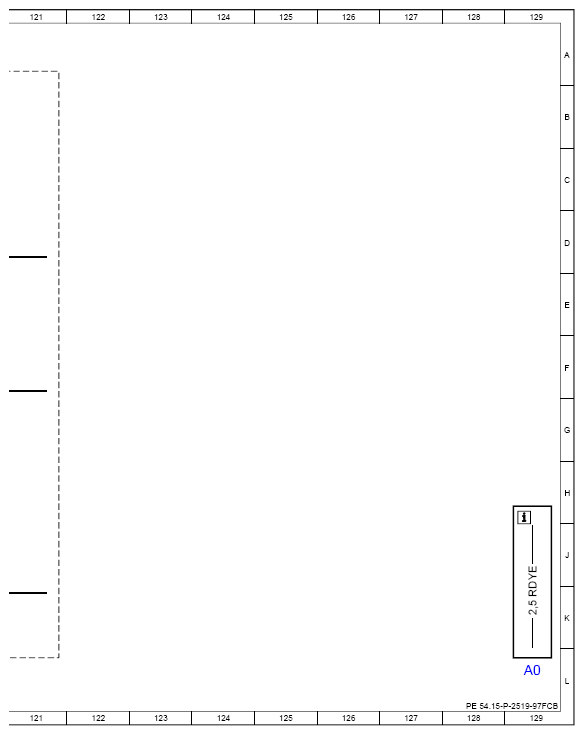

| A0 | Use of wiring diagrams | 129L |
| A1 | Instrument cluster | 94L |
| A2/18 | FM 1, AM, CL [ZV] and KEYLESS GO antenna amplifier | 91L |
| A26/17 | Head unit | 16L |
| A40/12 | Head-up display | 63L |
| A40/8 | Audio/COMAND® display | 48L |
| A6 | Stationary heater unit | 26L |
| A6/1 | Stationary heater radio remote control receiver | 62L |
| A76 | Left front reversible emergency tensioning retractor | 59L |
| A9/5 | Electric refrigerant compressor | 67L |
| A90/5 | Multimedia connection unit | 65L |
| A98 | Panoramic sliding sunroof control module | 43L |
| A98/1 | Sliding roof control module | 45L |
| B38/2 | Rain/light sensor with additional functions | 51L |
| B84/14 | Augmented reality camera | 72L |
| B84/15 | Hand motion sensor | 78L |
| B92/12 | Short and long-range radar sensor | 32L |
| Code 21U | Video recording function (dashcam) | 72J |
| Code 228 | Stationary heater | 26J |
| Code 233 | DISTRONIC PLUS | 32J |
| Code 299 | PRE-SAFE® | 59J |
| Code 299 | PRE-SAFE® | 62J |
| Code 401 | Seat climate control for driver and front passenger | 18J |
| Code 401 | Seat climate control for driver and front passenger | 23J |
| Code 413 | Panoramic sliding sunroof | 43J |
| Code 414 | Sliding roof | 45J |
| Code 463 | Head-up display | 63J |
| Code 466 | Active engine mount | 30J |
| Code 466 | Active engine mount | 96J |
| Code 547 | Connect 20 Entry (NTG6) | 16J |
| Code 548 | Connect 20 MID (NTG6) | 16J |
| Code 549 | Connect 20 HIGH (NTG6) | 16J |
| Code 550 | Trailer hitch | 25J |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | 87J |
| Code 6U8 | POSITIONING AND TRACKING SYSTEM | 29J |
| Code 6U8 | POSITIONING AND TRACKING SYSTEM | 88J |
| Code 6U9 | Positioning and tracking system subharness pre-installation | 29J |
| Code 6U9 | Positioning and tracking system subharness pre-installation | 89J |
| Code 77B | Contact less gesture control at front | 78J |
| Code 873 | Seat heater for driver and front passenger | 18J |
| Code 873 | Seat heater for driver and front passenger | 23J |
| Code 882 | Interior protection and tow-away protection | 87J |
| Code 889 | KEYLESS-GO | 90J |
| Code 897 | Wireless mobile phone charging | 64J |
| Code 897 | Wireless mobile phone charging | 60J |
| Code 897 | Wireless mobile phone charging | 66J |
| Code 899 | Wireless phone charging at front and antenna | 65J |
| Code 899 | Wireless phone charging at front and antenna | 60J |
| Code 899 | Wireless phone charging at front and antenna | 66J |
| Code B01 | 48V technology | 8J |
| Code B01 | 48V technology | 35J |
| Code B01 | 48V technology | 71J |
| Code L | LEFT-HAND DRIVE | 12J |
| Code L | LEFT-HAND DRIVE | 15J |
| Code L | LEFT-HAND DRIVE | 22J |
| Code L | LEFT-HAND DRIVE | 109F |
| Code M016 | Uprated high-performance engine | 6J |
| Code M016 | Uprated high-performance engine | 37J |
| Code M177 | SPARK-IGNITION ENGINE M177 | 6J |
| Code M177 | SPARK-IGNITION ENGINE M177 | 30J |
| Code M177 | SPARK-IGNITION ENGINE M177 | 38J |
| Code M177 | SPARK-IGNITION ENGINE M177 | 95J |
| Code M276 | SPARK-IGNITION ENGINE M276 | 5J |
| Code M276 | SPARK-IGNITION ENGINE M276 | 37J |
| Code M40 | DISPLACEMENT 4.0 LITERS | 6J |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 9J |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 27J |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 36J |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 67J |
| Code P65 | Seating comfort package | 23J |
| Code P65 | Seating comfort package | 18J |
| Code R | RIGHT-HAND DRIVE | 10J |
| Code R | RIGHT-HAND DRIVE | 13J |
| Code R | RIGHT-HAND DRIVE | 18J |
| Code R | RIGHT-HAND DRIVE | 109K |
| Code U19 | Augmented Reality | 72J |
| F1/3 | Passenger-side A-pillar fuse box | 4A |
| F1/3 | Passenger-side A-pillar fuse box | 12A |
| F1/3 | Passenger-side A-pillar fuse box | 20A |
| F1/3 | Passenger-side A-pillar fuse box | 35A |
| F1/3 | Passenger-side A-pillar fuse box | 28A |
| F1/3 | Passenger-side A-pillar fuse box | 43A |
| F1/3 | Passenger-side A-pillar fuse box | 52A |
| F1/3 | Passenger-side A-pillar fuse box | 60A |

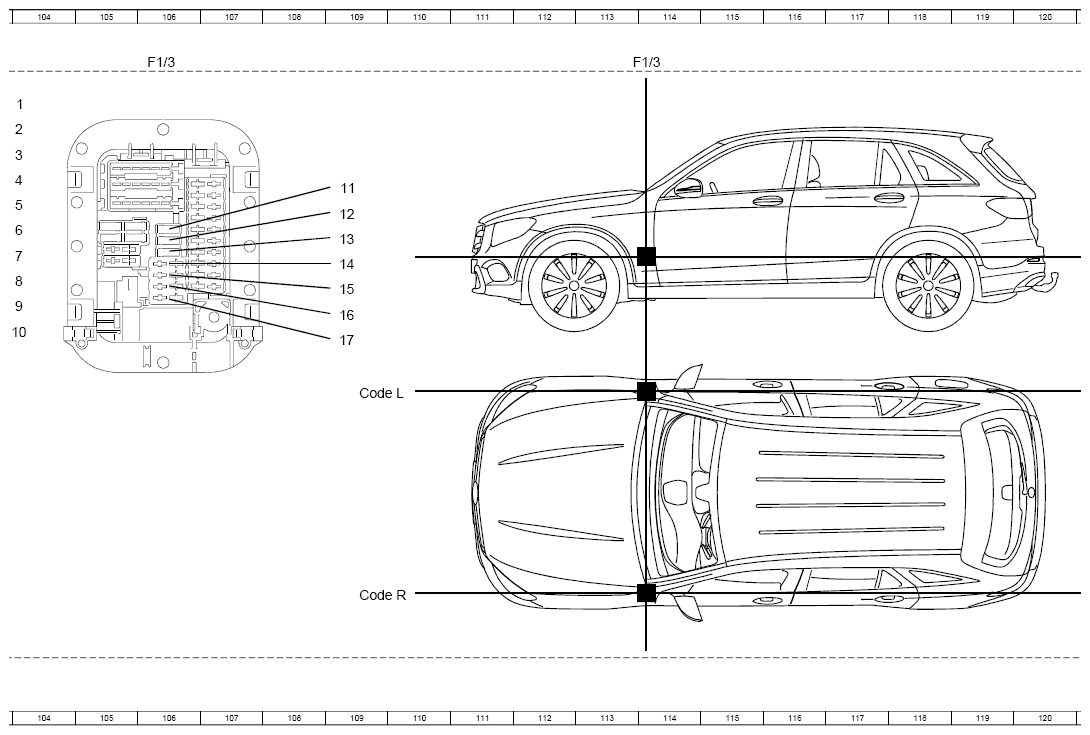

| F1/3 | Passenger-side A-pillar fuse box | 106A |
| F1/3 | Passenger-side A-pillar fuse box | 68A |
| F1/3 | Passenger-side A-pillar fuse box | 76A |
| F1/3 | Passenger-side A-pillar fuse box | 84A |
| F1/3 | Passenger-side A-pillar fuse box | 92A |
| F1/3 | Passenger-side A-pillar fuse box | 101A |
| F1/3 | Passenger-side A-pillar fuse box | 114A |
| F1/3MF1 | Multiple fuse 1 | 48C |

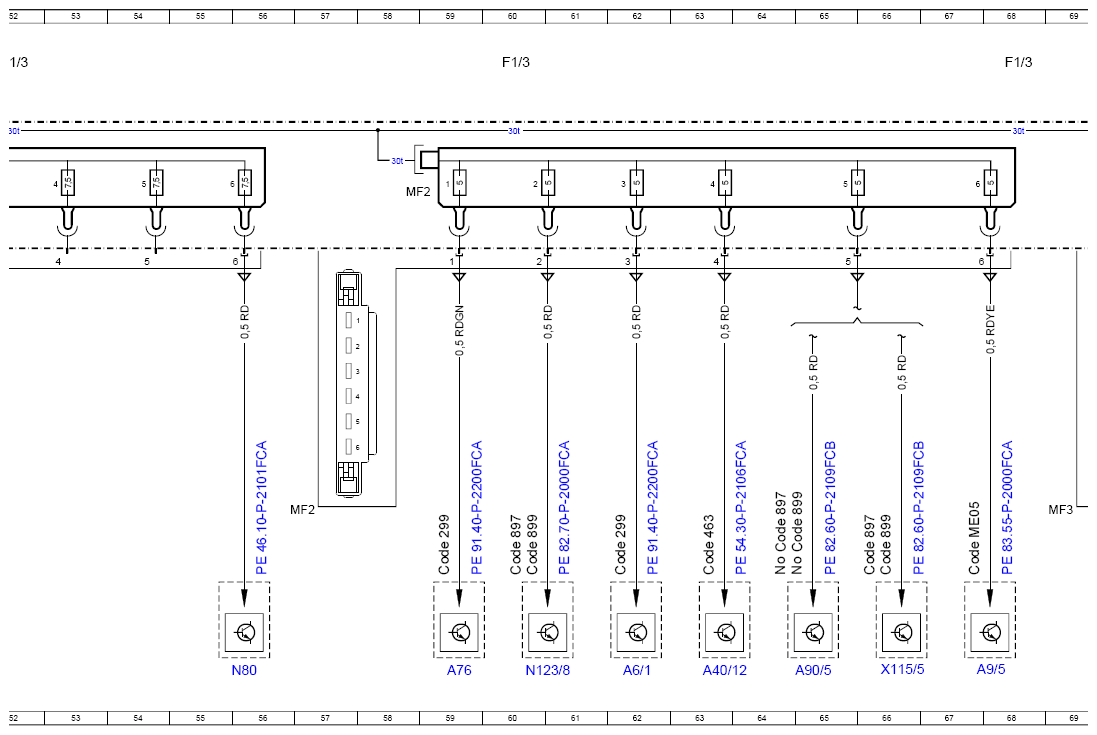

| F1/3MF2 | Multiple fuse 2 | 58C |

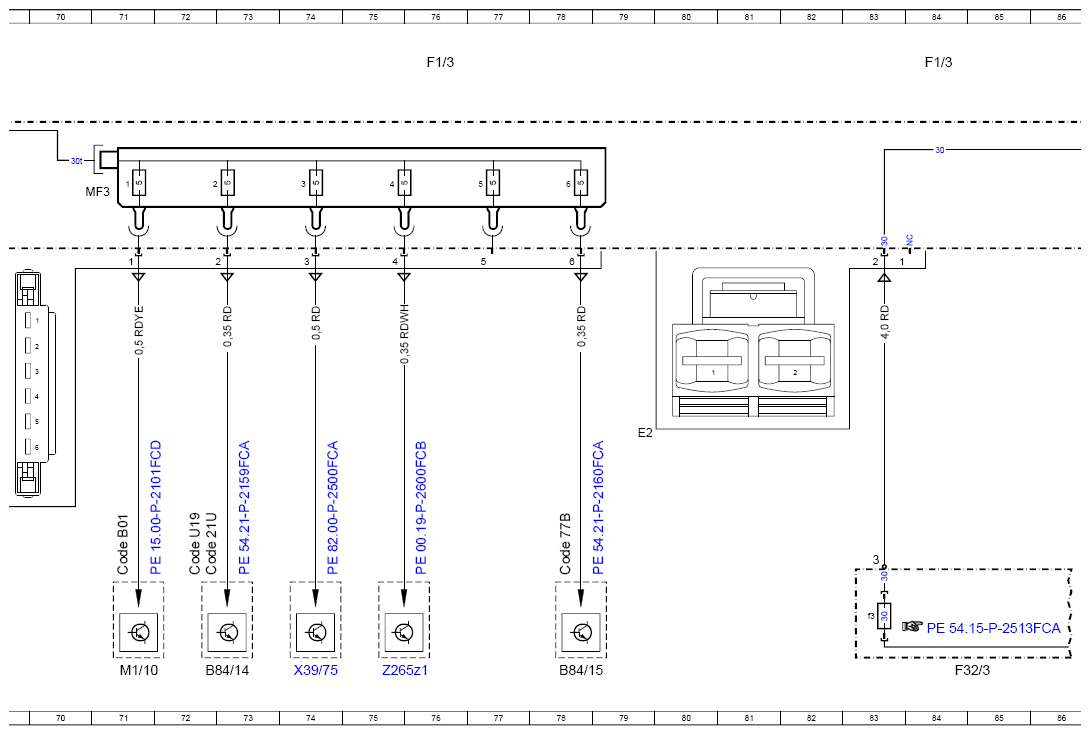

| F1/3MF3 | Multiple fuse 3 | 71C |

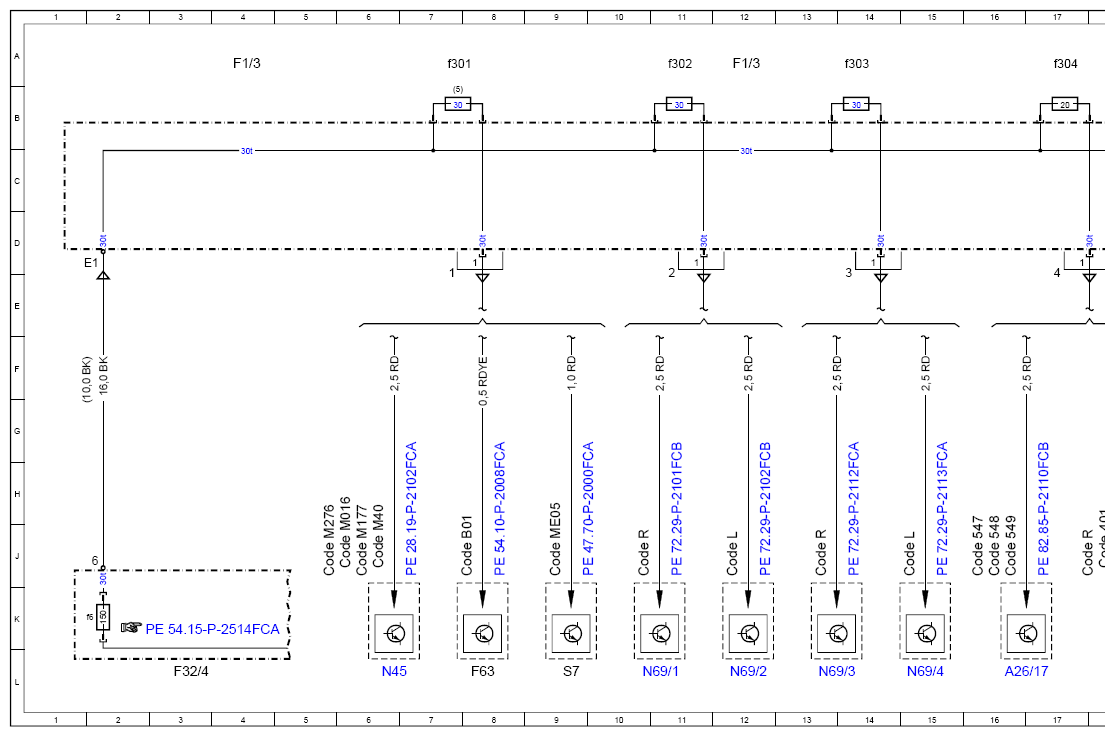

| F1/3f301 | Fuse 301 | 7A |
| F1/3f302 | Fuse 302 | 11A |
| F1/3f303 | Fuse 303 | 14A |
| F1/3f304 | Fuse 304 | 17A |

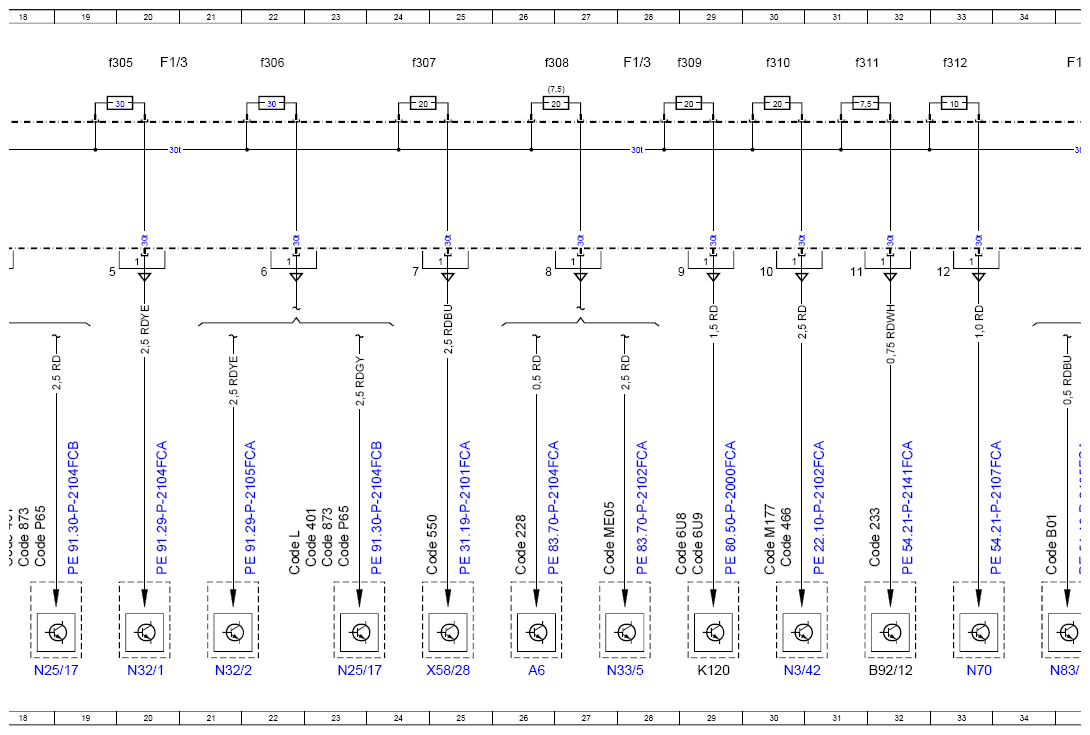

| F1/3f305 | Fuse 305 | 19A |
| F1/3f306 | Fuse 306 | 22A |
| F1/3f307 | Fuse 307 | 24A |
| F1/3f308 | Fuse 308 | 26A |
| F1/3f309 | Fuse 309 | 29A |
| F1/3f310 | Fuse 310 | 30A |
| F1/3f311 | Fuse 311 | 31A |
| F1/3f312 | Fuse 312 | 33A |

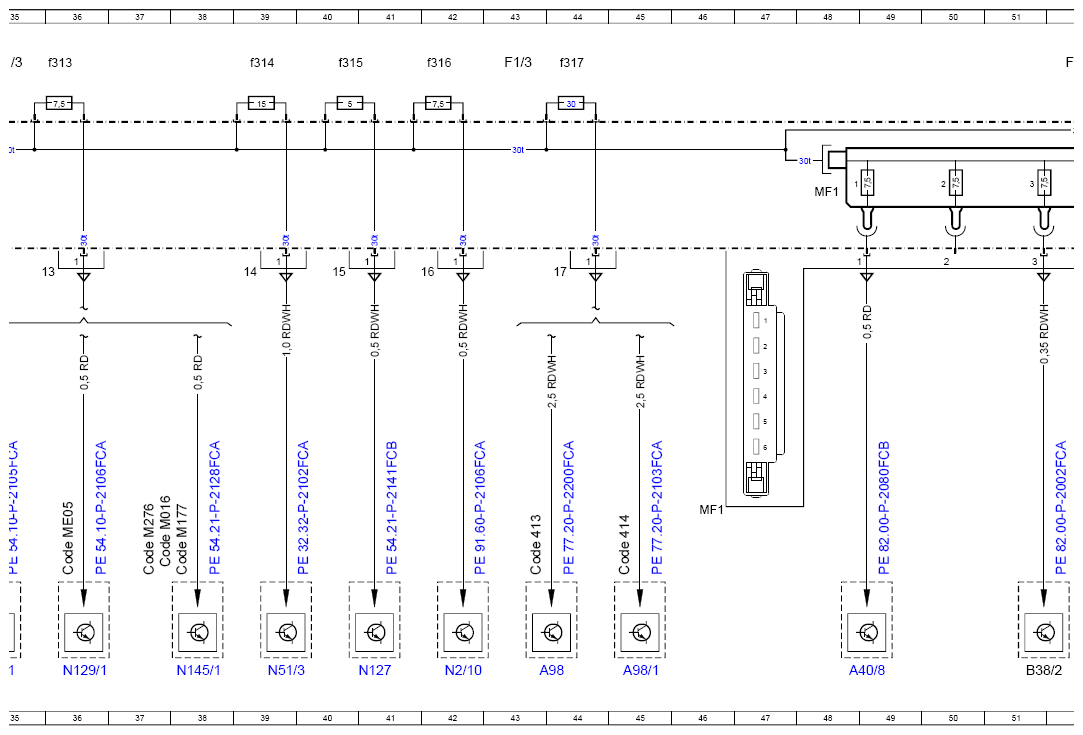

| F1/3f313 | Fuse 313 | 36A |
| F1/3f314 | Fuse 314 | 39A |
| F1/3f315 | Fuse 315 | 40A |
| F1/3f316 | Fuse 316 | 42A |
| F1/3f317 | Fuse 317 | 44A |

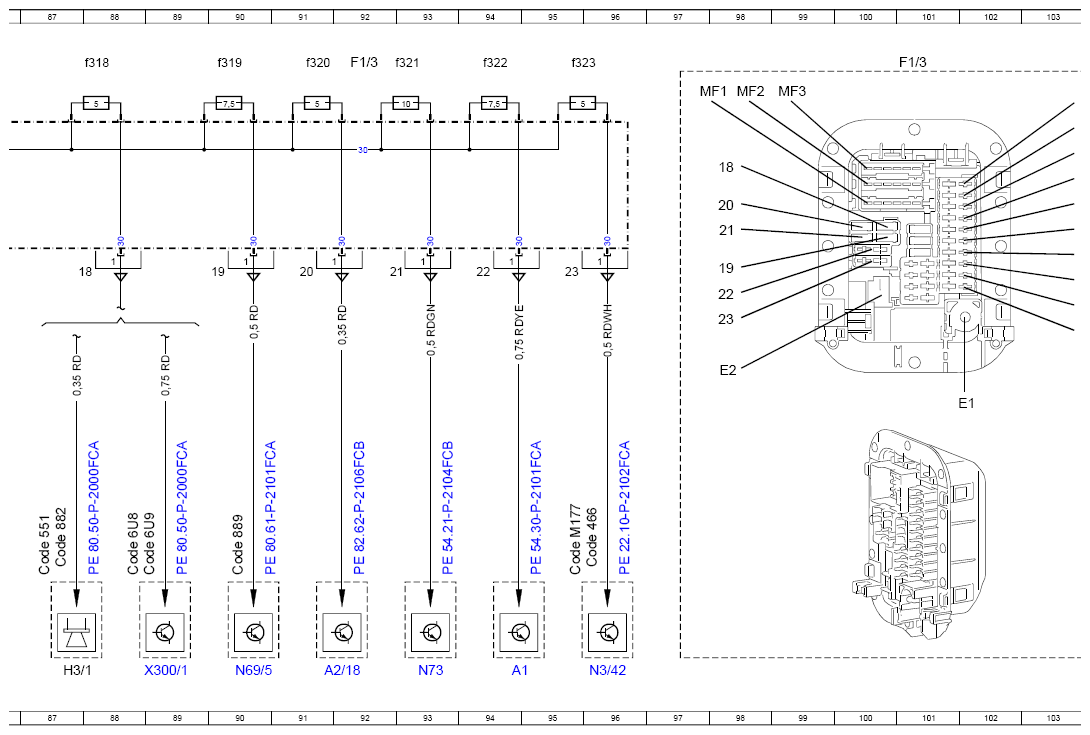

| F1/3f318 | Fuse 318 | 88A |
| F1/3f319 | Fuse 319 | 90A |
| F1/3f320 | Fuse 320 | 91A |
| F1/3f321 | Fuse 321 | 93A |
| F1/3f322 | Fuse 322 | 94A |
| F1/3f323 | Electrical fuse 323 | 95A |
| F32/3 | Engine compartment Pre-fuse box | 84L |
| F32/3f3 | Fuse 3 | 83K |
| F32/4 | Vehicle interior Pre-fuse box | 3L |
| F32/4f6 | Fuse 6 | 2K |
| F63 | Pyrofuse | 8L |
| H3/1 | Alarmsiren | 87L |
| K120 | Theft detection system horn relay | 29L |
| Ml/10 | Starter-alternator | 71L |
| N123/8 | Mobile phone cradle control unit | 60L |
| N127 | Drivetrain control unit | 41L |
| N129/1 | Power electronics control unit | 36L |
| N145/1 | Drive unit control unit | 38L |
| N2/10 | Supplemental restraint system control unit | 42L |
| N25/17 | Front seat heater control unit | 23L |
| N25/17 | Front seat heater control unit | 18L |
| N3/42 | Active engine mounts control unit | 30L |
| N3/42 | Active engine mounts control unit | 96L |
| N32/1 | Driver seat control unit | 20L |
| N32/2 | Front passenger seat control unit | 21L |
| N33/5 | High-voltage PTC heater | 27L |
| N45 | All-wheel drive control unit | 6L |
| N51/3 | AIR BODY CONTROL control unit | 39L |
| N69/1 | Left front door control unit | 11L |
| N69/2 | Right front door control unit | 12L |
| N69/3 | Left rear door control unit | 13L |
| N69/4 | Right rear door control unit | 15L |
| N69/5 | KEYLESS-GO control unit | 90L |
| N70 | Overhead control panel control unit | 33L |
| N73 | Electronic ignition switch control unit | 93L |
| N80 | Steering column module control unit | 56L |
| N83/1 | DC/DC converter control unit | 35L |
| S7 | High-voltage disconnect device | 9L |
| X115/5 | Front center console USB connector | 66L |
| X300/1 | Theft detection system horn electrical connector | 89L |
| X39/75 | Rear USB electrical connector | 74L |
| X58/28 | Electric Brake Control electrical connector | 25L |
| Z265z1 | Terminal 30t connector sleeve | 75L |
