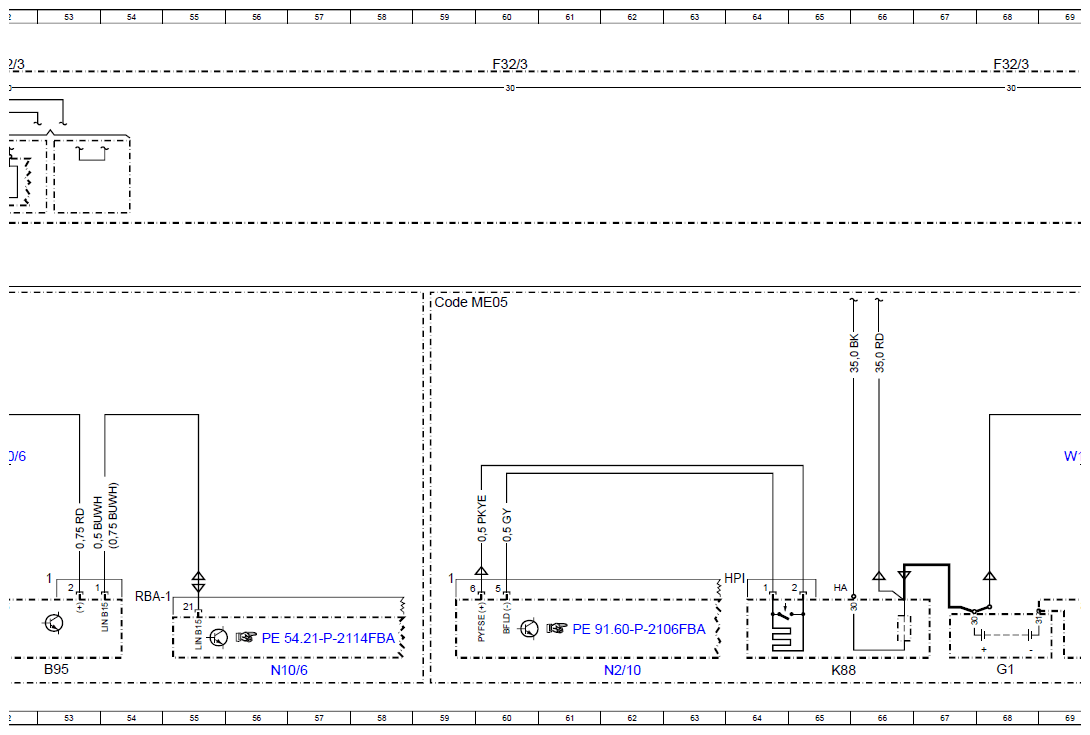

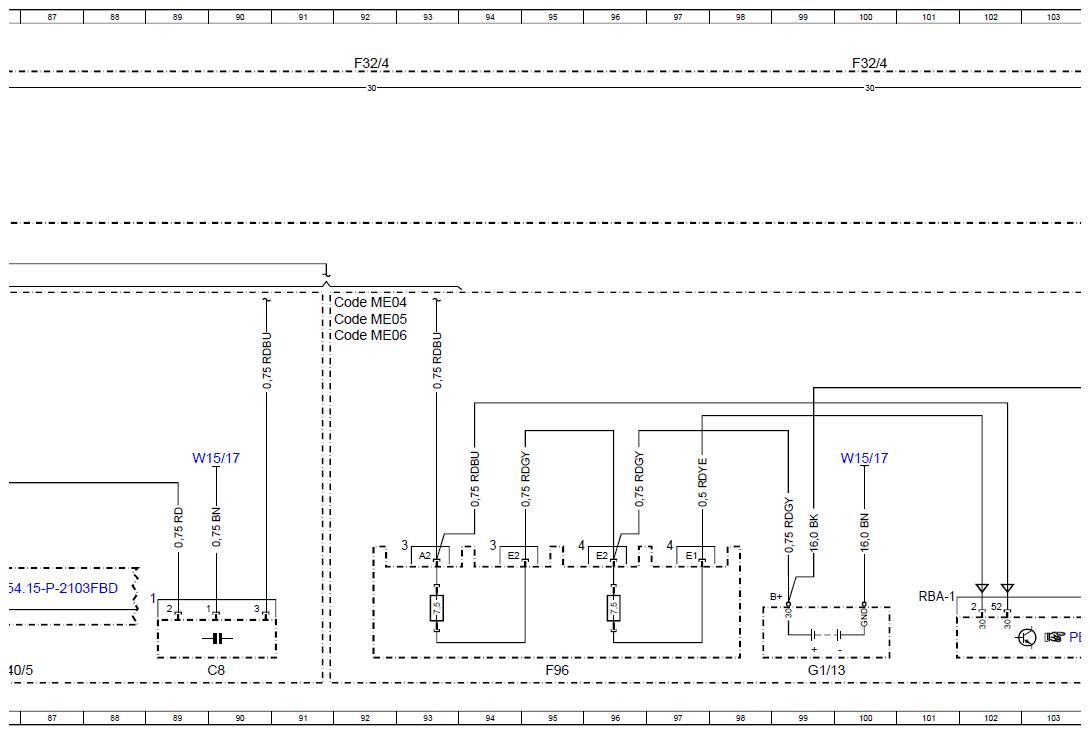

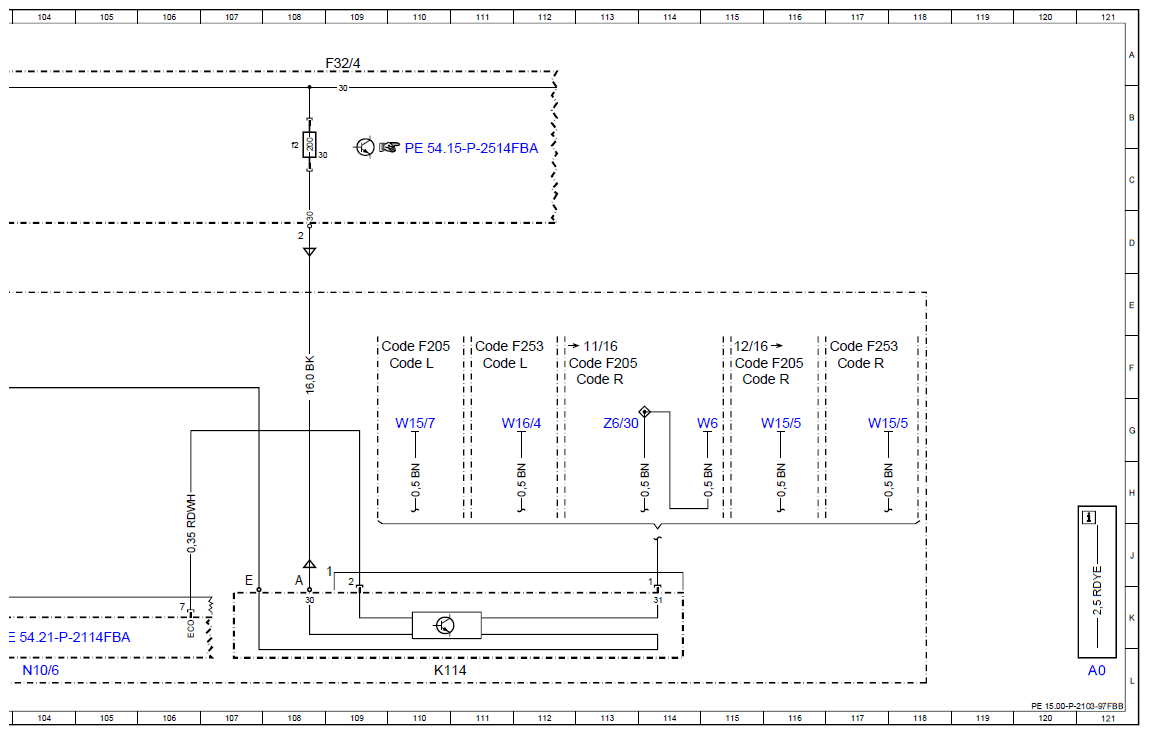

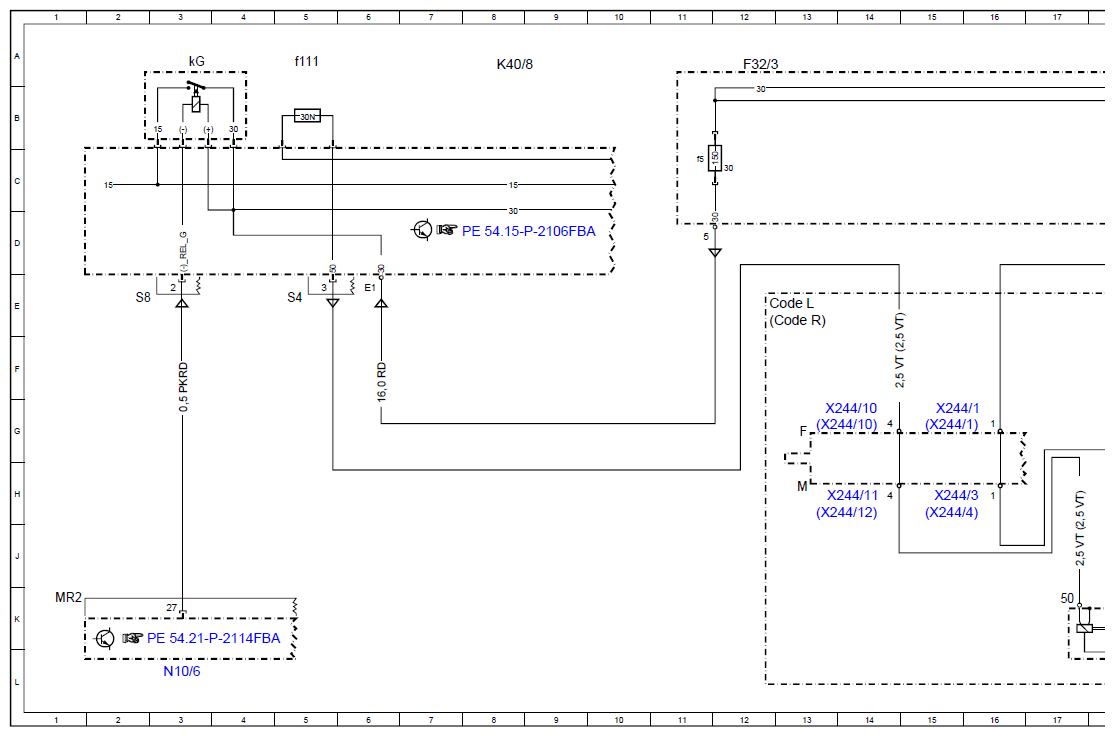

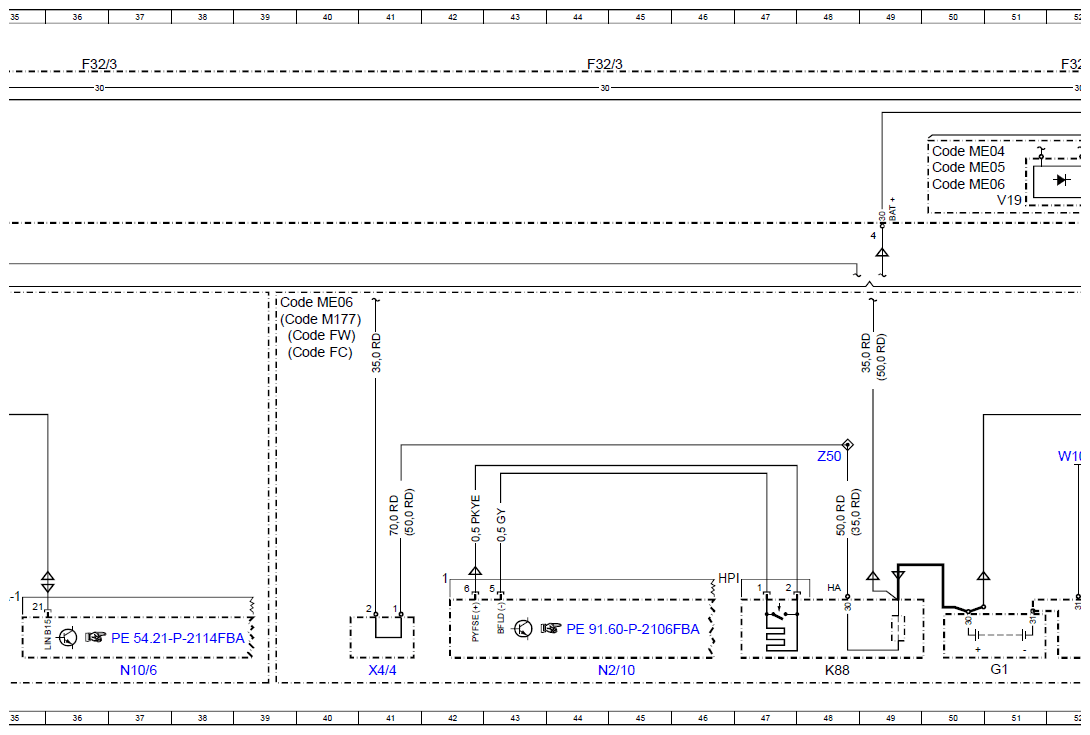

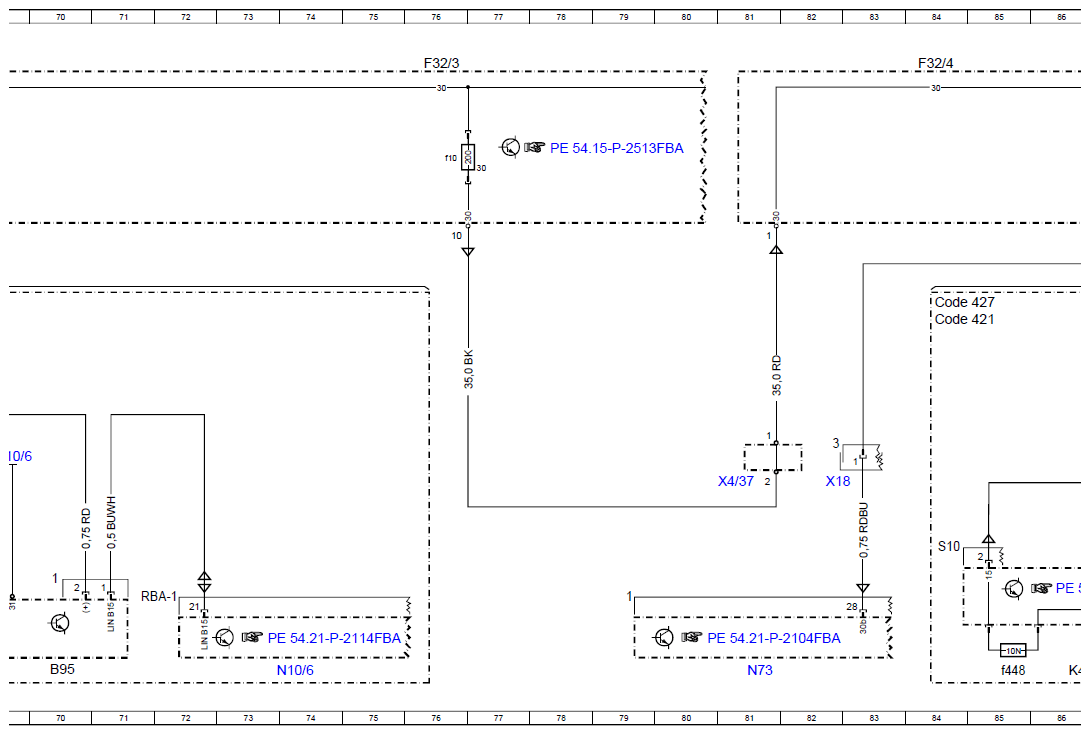

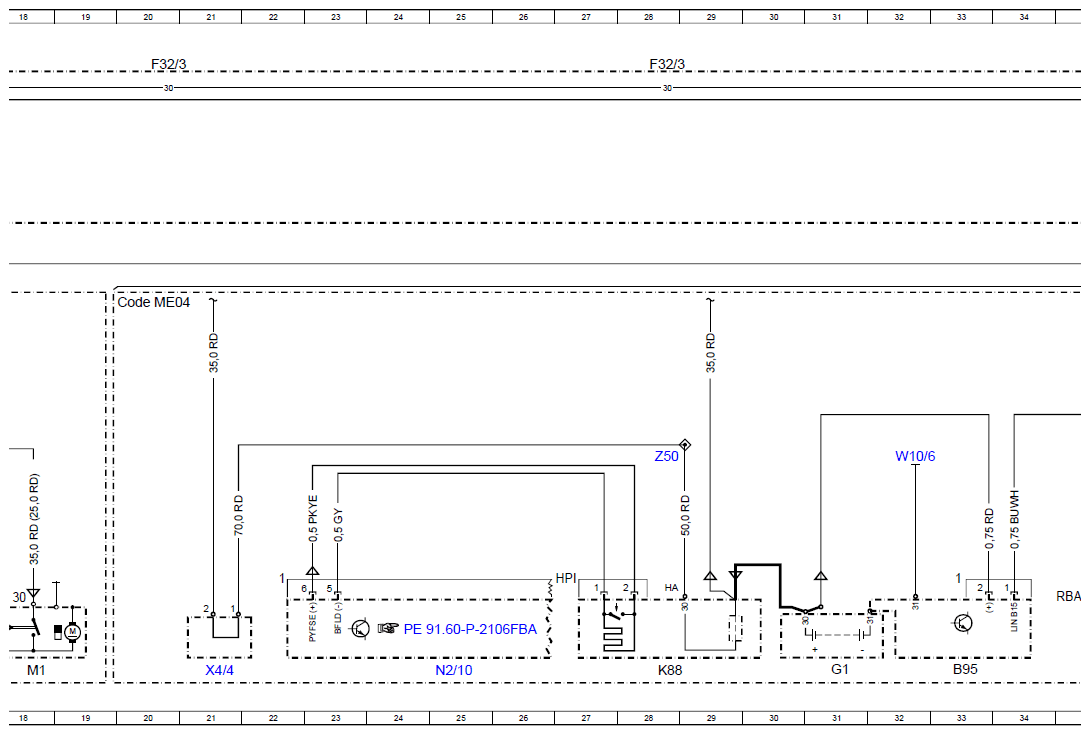

Wiring Diagram For Engine Start/Stop - PE15.00-P-2103-97FBB
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Engine 177, 274, 276, 626, 651 in model 205 up to model year 2019
except code 4U7 (Start/stop voltage dip protector)
Engine 274, 276, 642, 651 in model 253 (except 253.99)
up to model year 2020
except code 4U7 (Start/stop voltage dip protector)
| Code: | Designation: | Position: |
|---|---|---|
| AO | Use of wiring diagrams | 121L |
| B95 | Battery sensor | 33L |
| B95 | Battery sensor | 53L |
| B95 | Battery sensor | 70L |
| C8 | Park pawl capacitor | 90L |
| Code 421 | 9G-TR0NIC PLUS | 84E |
| Code 427 | 7G-TR0NIC PLUS automatic transmission | 84E |
| Code F205 | MODEL SERIES 205 | 112F |
| Code F205 | MODEL SERIES 205 | 109F |
| Code F205 | MODEL SERIES 205 | 115F |
| Code F253 | MODEL SERIES 253 | 111F |
| Code F253 | MODEL SERIES 253 | 117F |
| Code FC | COUPE | 39F |
| Code FW | SEDAN | 39F |
| Code L | LEFT-HAND DRIVE | 12E |
| Code L | LEFT-HAND DRIVE | 111F |
| Code L | LEFT-HAND DRIVE | 110F |
| Code M177 | SPARK-IGNITION Engine M177 | 39E |
| Code ME04 | Hybrid drive 20 KW VARIANT | 20E |
| Code ME04 | Hybrid drive 20 KW VARIANT | 50C |
| Code ME04 | Hybrid drive 20 KW VARIANT | 91E |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 59E |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 50C |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 91E |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 39E |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 50C |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 91F |
| Code R | RIGHT-HAND DRIVE | 12E |
| Code R | RIGHT-HAND DRIVE | 112F |
| Code R | RIGHT-HAND DRIVE | 115F |
| Code R | RIGHT-HAND DRIVE | 117F |
| F32/3 | Engine compartment prefuse box | 12A |
| F32/3 | Engine compartment prefuse box | 20A |
| F32/3 | Engine compartment prefuse box | 28A |
| F32/3 | Engine compartment prefuse box | 36A |
| F32/3 | Engine compartment prefuse box | 44A |
| F32/3 | Engine compartment prefuse box | 52A |
| F32/3 | Engine compartment prefuse box | 60A |
| F32/3 | Engine compartment prefuse box | 68A |
| F32/3 | Engine compartment prefuse box | 76A |
| F32/3f10 | Fuse 10 | 76C |
| F32/3f5 | Fuse 5 | 11C |
| F32/4 | Vehicle interior prefuse box | 84A |
| F32/4 | Vehicle interior prefuse box | 92A |
| F32/4 | Vehicle interior prefuse box | 109A |
| F32/4 | Vehicle interior prefuse box | 100A |
| F32/4f2 | Fuse 2 | 108C |
| F96 | Additional battery circuit 30 fuses | 95L |
| G1 | On-board electrical system battery | 31L |
| G1 | On-board electrical system battery | 51L |
| G1 | On-board electrical system battery | 68L |
| G1/13 | ECO start/stop function additional battery | 99L |
| K114 | ECO start/stop function additional battery relay | 110L |
| K40/5 | Rear fuse and relay module | 86L |
| K40/5f448 | Fuse 448 | 85L |
| K40/8 | Engine fuse and relay module | 8A |
| K40/8f111 | Fuse 111 | 5A |
| K40/8kG | Engine compartment terminal 15 relay | 3A |
| K88 | Pyrotechnical separator | 28L |
| K88 | Pyrotechnical separator | 48L |
| K88 | Pyrotechnical separator | 65L |
| M1 | Starter | 18L |
| N10/6 | Front SAM control unit | 3L |
| N10/6 | Front SAM control unit | 37L |
| N10/6 | Front SAM control unit | 56L |
| N10/6 | Front SAM control unit | 74L |
| N10/6 | Front SAM control unit | 104L |
| N2/10 | Supplemental restraint system control unit | 25L |
| N2/10 | Supplemental restraint system control unit | 44L |
| N2/10 | Supplemental restraint system control unit | 62L |
| N73 | Electronic ignition switch control unit | 81L |
| V19 | ECO start/stop function diode | 51C |
| W10/6 | Rear on-board electrical system battery ground point | 32G |
| W10/6 | Rear on-board electrical system battery ground point | 52G |
| W10/6 | Rear on-board electrical system battery ground point | 69G |
| W15/17 | Additional battery ground point | 89H |
| W15/17 | Additional battery ground point | 100H |
| W15/5 | Left front footwell ground point | 116G |
| W15/5 | Left front footwell ground point | 117G |
| W15/7 | Right front footwell ground point | 110G |
| W16/4 | Right major assembly compartment ground point | 111G |
| W6 | Left wheel arch trunk ground point | 115G |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 82H |
| X244/1 | Firewall through-hole plating electrical connector | 15G |
| X244/1 | Firewall through-hole plating electrical connector | 15G |
| X244/10 | Right vehicle-end busbar stud 4 | 14G |
| X244/10 | Right vehicle-end busbar stud 4 | 14G |
| X244/11 | Left Engine-end busbar stud 4 | 14H |
| X244/12 | Right Engine-end busbar stud 4 | 14H |
| X244/3 | Left Engine-end busbar stud 1 | 15H |
| X244/4 | Right Engine-end busbar stud 1 | 15H |
| X4/37 | Terminal block (circuit 30) | 81H |
| X4/4 | Terminal block (circuit 30) | 21L |
| X4/4 | Terminal block (circuit 30) | 41L |
| Z50 | Tml. 30 connector sleeve | 28G |
| Z50 | Tml. 30 connector sleeve | 48G |
| Z6/30 | Circuit 31 connector sleeve | 113G |
