Tightening Procedure For Belt-Driven Starter-Alternator - AR15.40-P-5060-01MRH
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Engine 264
ALTERNATOR
| Number | Designation | Engine 264 | ||
|---|---|---|---|---|
| BA15.40-P-1001-01U | Bolt, alternator to timing case | Stage 1 | Nm | 8 |
| Stage 2 | Nm | 20 | ||

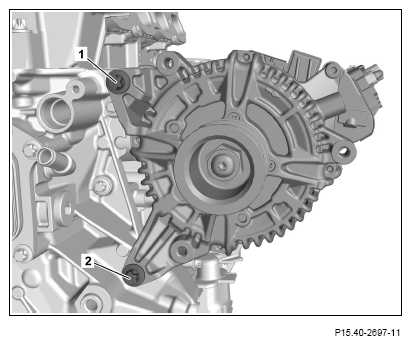

- Tighten screws/bolts (1, 2) lightly by hand.
- Tighten screw/bolt (1) to stage 1
.
- Tighten screw/bolt (2) to stage 1
- Tighten screw/bolt (1) to stage 2
- Tighten screw/bolt (2) to stage 2
