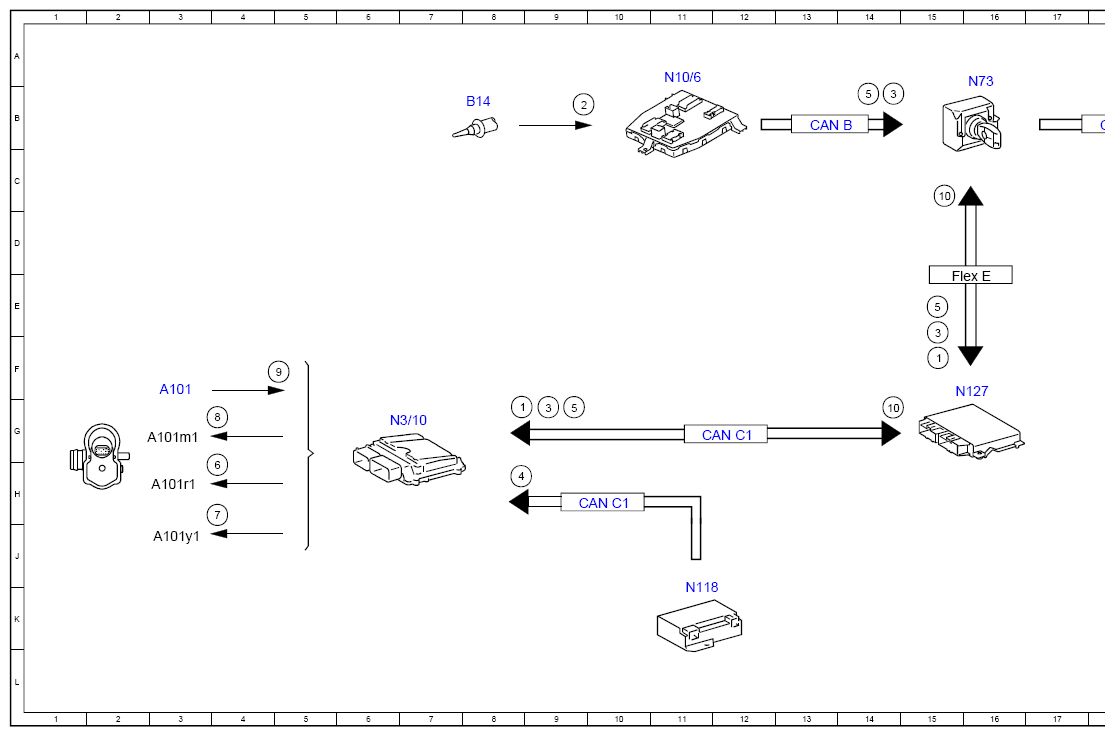

Electrical Function Schematic For System Purging With Leak Test - PE47.30-P-2051-97FBI
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Engine 264.9 in Model 205, 253 with code 494 (US version)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 8G |
| 1 | Circuit 15, status | 15F |
| 10 | Engine diagnosis indicator lamp, actuation | 14G |
| 10 | Engine diagnosis indicator lamp, actuation | 15C |
| 10 | Engine diagnosis indicator lamp, actuation | 20B |
| 2 | Outside temperature sensor, signal | 9B |
| 3 | Outside temperature, signal | 9G |
| 3 | Outside temperature, signal | 14B |
| 3 | Outside temperature, signal | 15E |
| 4 | Fuel level, signal | 8H |
| 5 | On-board electrical system energy state, signal | 9G |
| 5 | On-board electrical system energy state, signal | 15E |
| 5 | On-board electrical system energy state, signal | 14B |
| 6 | Fuel tank diagnostic module heating element, actuation | 4H |
| 7 | Fuel tank diagnostic module solenoid valve, actuation | 4H |
| 8 | Fuel tank diagnostic module pump, actuation | 4G |
| 9 | Fuel tank diagnostic module, status | 5F |

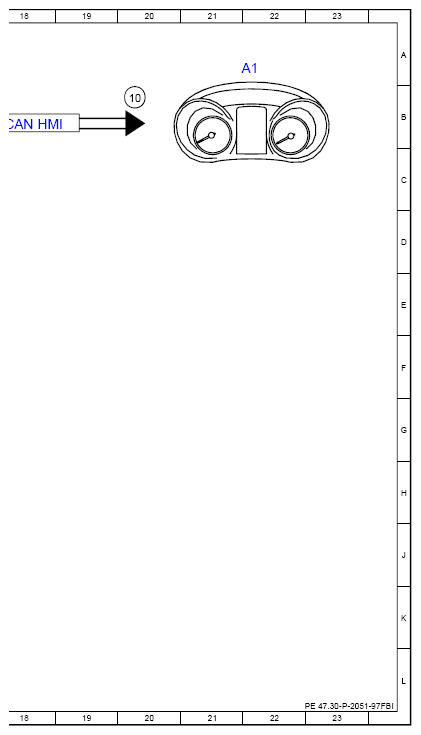

| A1 | Instrument cluster | 22A |
| A101 | Fuel tank diagnostic module | 3F |
| A101m1 | Fuel tank diagnostic module pump | 3G |
| A101r1 | Fuel tank diagnostic module heating element | 3H |
| A101y1 | Fuel tank diagnostic module solenoid valve | 3J |
| B14 | Outside temperature sensor | 8B |
| CAN B | Interior CAN | 13B |
| CAN C1 | Drive train CAN | 12G |
| CAN C1 | Drive train CAN | 10H |
| CAN HMI | User interface CAN | 18B |
| Flex E | Chassis FlexRay | 15E |
| N10/6 | Front SAM control unit | 11A |
| N118 | Fuel pump control unit | 11K |
| N127 | Drivetrain control unit | 16F |
| N3/10 | ME-SFI [ME] control unit | 7G |
| N73 | Electronic ignition switch control unit | 16A |
