Remove/Install Charger Feed Socket - AR47.70-P-0006LXM
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Engine 274 in Model 253.353/953
Engine 654 in Model 253.311/911
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. | AS00.00-Z-0035-01A | |
| General information on handling vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system | AH00.00-Z-0300-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on battery | AH54.10-P-0001-01A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove | |||
| 1 | Remove rear bumper. | AR88.20-P-2200LWG | |
| 2 | Remove charger feed socket flap. | AR54.10-P-5110LVH | |
| 3 | Perform power disconnect of high-voltage onboard electrical system. | AR54.10-P-1150LVH | |
| 4 | Fold up load compartment floor and hook into place. | ||
| 5 | Remove rear-end center-section trim. | AR68.30-P-4785LWS | |
| 6 | Remove load compartment well trim. | ||

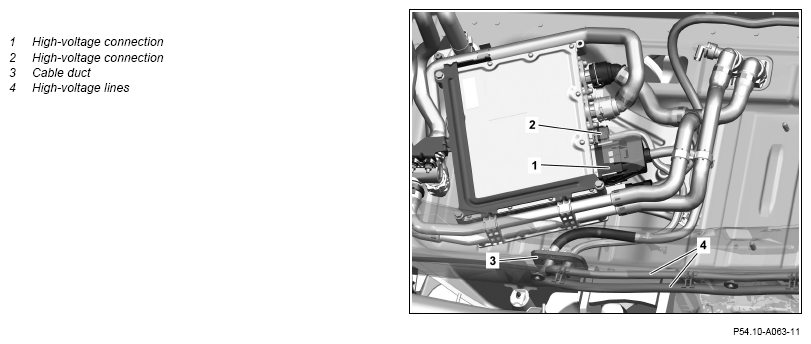

| 7 | Disconnect high-voltage plug (1) and seal connections with protective covers. | Ensure utmost care and cleanliness. Otherwise, damage to the high voltage components may occur. |
|
| Fig 2 | |||
| 8 | Disconnect high-voltage plug (2) and seal connections with protective covers. | Ensure utmost care and cleanliness. Otherwise, damage to the high voltage components may occur. |
|
| Fig 2 | |||
| 9 | Unclip high-voltage lines (4) along the load compartment floor and route to the cable duct (3). | ||
| 10 | Unclip cable duct (3) from the rear end panel and route high-voltage lines (4) to the outside of the vehicle. | ||

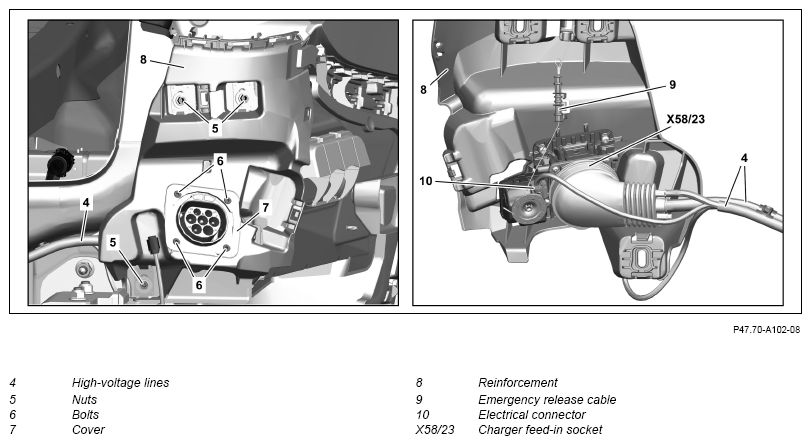

| 11 | Remove screws (6) and remove cover (7). | ||
| 12 | Remove nuts (5) and remove reinforcement (8) until the charger feed socket (X58/23) is accessible. | ||
| 13 | Disconnect electrical connection (10). | ||
| 14 | Unhook emergency release cable (9). | ||
| 15 | Unclip charger feed socket (X58/23) and remove (8) reinforcement. | ||
| 16 | Unclip high-voltage lines (4) with charger feed socket (X58/23) from the basic carrier and remove. | ||
| Install | |||
| 17 | Clip high-voltage lines (4) with charger feed socket (X58/23) into the basic carrier. | ||
| 18 | Clip charger feed socket (X58/23) into the reinforcement (8). | ||
| 19 | Hook emergency release cable (9). | ||
| 20 | Connect electrical connector (10). | ||
| 21 | Position reinforcement (8) and attach nuts (5). | ||
| 22 | Position cover (7) and screw in screws (6). | Engine 654 in Model 253.311/911 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) Screw/bolt, vehicle socket to rear bumper |
*BA54.10-P-1020-02H |
| 23 | Route high-voltage lines (4) to the inside of the vehicle and clip cable duct (3) into the rear end panel. | ||
| 24 | Clip in high-voltage lines (4) along the load compartment floor. | ||
| 25 | Remove protective cover and connect high-voltage plug (2). | ||
| 26 | Remove protective cover and connect high-voltage plug (1). | ||
| 27 | Install load compartment well trim. | ||
| 28 | Install rear-end center-section trim. | AR68.30-P-4785LWS | |
| 29 | Fold down load compartment floor. | ||
| 30 | Perform protective ground conductor and insulation resistance test. | AR54.10-P-0019-01LXM | |
| 000 588 00 19 00 Insulation measuring unit | WS54.00-P-0046B | ||
Engine 654 in Model 253.311/911 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) Screw/bolt, potential equalization line to high-voltage battery |
*BA54.10-P-1004-02H | ||
Engine 654 in Model 253.311/911 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) Nut, potential equalization line to body |
*BA54.10-P-1005-02H | ||
Engine 654 in Model 253.311/911 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) Screw/bolt, potential equalization line to charger |
*BA54.10-P-1013-02H | ||
| 31 | Perform initial startup of high voltage on-board electrical system. | AR54.10-P-1150LVH | |
| 32 | Install charger feed-in socket flap. | AR54.10-P-5110LVH | |
| 33 | Install rear bumper. | AR88.20-P-2200LWG |
HIGH-VOLTAGE BATTERY
| Number | Designation | Model 253 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) | |
|---|---|---|---|
| BA54.10-P-1004-02H | Screw/bolt, potential equalization line to high-voltage battery | Nm | 16 |
HIGH-VOLTAGE BATTERY
| Number | Designation | Model 253 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) | |
|---|---|---|---|
| BA54.10-P-1005-02H | Nut, potential equalization line to body | Nm | 16 |
HIGH-VOLTAGE BATTERY
| Number | Designation | Model 253 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) |
|
|---|---|---|---|
| BA54.10-P-1013-02H | Screw/bolt, potential equalization line to charger | Nm | 9 |
HIGH-VOLTAGE BATTERY
| Number | Designation | Model 253 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) | |
|---|---|---|---|
| BA54.10-P-1020-02H | Screw/bolt, vehicle socket to rear bumper | Nm | 5 |
