Remove/Install Activated Charcoal Canister - AR47.30-P-8212LWA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Engine 177, 264, 274.9, 276.8 in Model 205
Engine 177, 264, 274.9, 276.8 in Model 253
MODIFICATION NOTES
| 12.11.2019 | Document completely revised. |
Shown on Model 205 with Engine 276.8

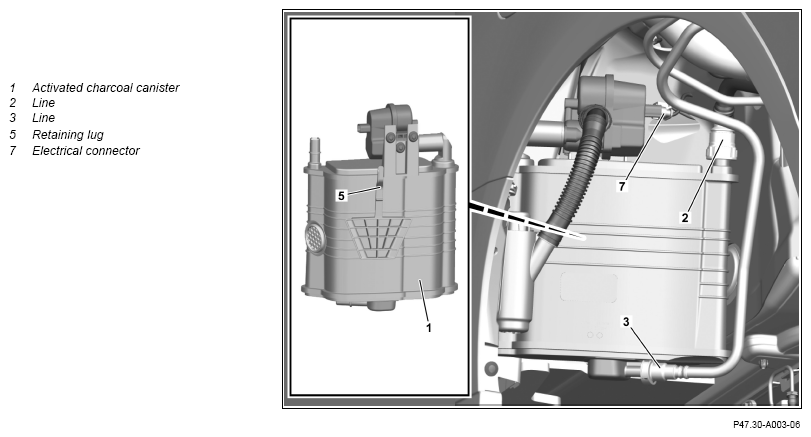

Shown on Model 205 with Engine 264 without code 494 (USA version)

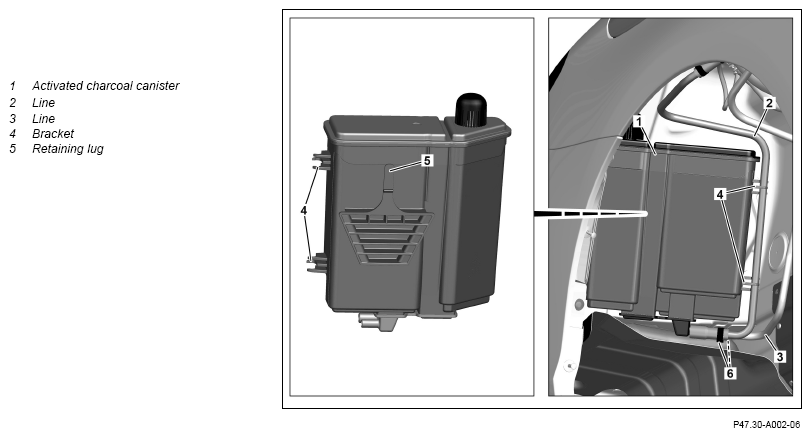

Fig 1: Activated Charcoal Canister Components Location - Engine 264, 274.9 In Model 253 (Shown On Model 205 With Engine 264 Without Code 494)

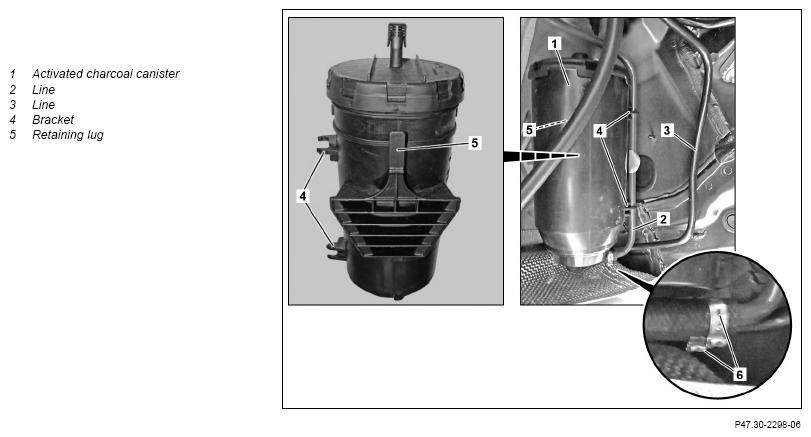

Shown on Model 205 with Engine 264 with code 494 (USA version)
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove right rear wheel and tire assembly. | AR40.10-P-1102A | |
| 2 | Remove rear right fender liner. | AR88.10-P-1400LW | |
| 3 | Release and disconnect electrical connector (7). | Model 205 with Engine 177, 264, 274.9, 276.8 with code 460 (Canada version) with code 494 (US version) with code 835 (South Korea version) with code 945 (China Stage 6 exhaust treatment) Model 253 with Engine 177, 264, 274.9, 276.8 with code 460 (Canada version) with code 494 (US version) with code 835 (South Korea version) with code 945 (China Stage 6 exhaust treatment) |
|
| 4 | Unclip line (2) from brackets (4). | Model 205 with Engine 177, 264, 274.9, 276.8 except code 460 (Canada version) except code 494 (US version) except code 835 (South Korea version) except code 945 (China Stage 6 exhaust treatment) Model 253 with Engine 177, 264, 274.9, 276.8 except code 460 (Canada version) except code 494 (US version) except code 835 (South Korea version) except code 945 (China Stage 6 exhaust treatment) |
|
| 5 | Release connector couplings of lines (2, 3). | Model 205 with Engine 177, 264, 274.9, 276.8 with code 460 (Canada version) with code 494 (US version) with code 835 (South Korea version) with code 945 (China Stage 6 exhaust treatment) Model 253 with Engine 177, 264, 274.9, 276.8 with code 460 (Canada version) with code 494 (US version) with code 835 (South Korea version) with code 945 (China Stage 6 exhaust treatment) |
|
| 6 | Remove lines (2, 3) from activated charcoal canister (1) and seal openings with suitable stop plugs. | Fig 2 | |
| 7 | Release securing lug (5) and push activated charcoal canister (1) upwards. | ||
| 8 | Remove activated charcoal canister (1) in downward direction. | ||
| Check | |||
| 9 | Check air filter element of activated charcoal canister for damage and replace if necessary. | Engine 177, 264, 274.9, 276.8 in Model 205 with code 460 (Canada version) with code 494 (US version) with code 835 (South Korea version) with code 945 (China Stage 6 exhaust treatment) Engine 177, 264, 274.9, 276.8 in Model 253 with code 460 (Canada version) with code 494 (US version) with code 835 (South Korea version) with code 945 (China Stage 6 exhaust treatment) |
AR47.30-P-0004-01LWA |
| 10 | Install in the reverse order. | ||
| 11 | Read out fault memory and delete if necessary. | ||
| Engine 177, 264, 274.9, 276.8 in Model 205 with code 460 (Canada version) with code 494 (US version) with code 835 (South Korea version) with code 945 (China Stage 6 exhaust treatment) Engine 177, 264, 274.9, 276.8 in Model 253 with code 460 (Canada version) with code 494 (US version) with code 835 (South Korea version) with code 945 (China Stage 6 exhaust treatment) |
AD00.00-P-2000-04B |
