Electric Wiring Diagram For Panoramic Sliding Roof - PE77.20-P-2200-97FCA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.99) as of model year 2020
with code 413 (Panoramic sliding sunroof/glass roof)
Control module A98
Model 253.99 as of model year 2019
with code 413 (Panoramic sliding sunroof/glass roof)
with code 9O1 (Fuel cell pre-installation)
Control module A98
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 48L |

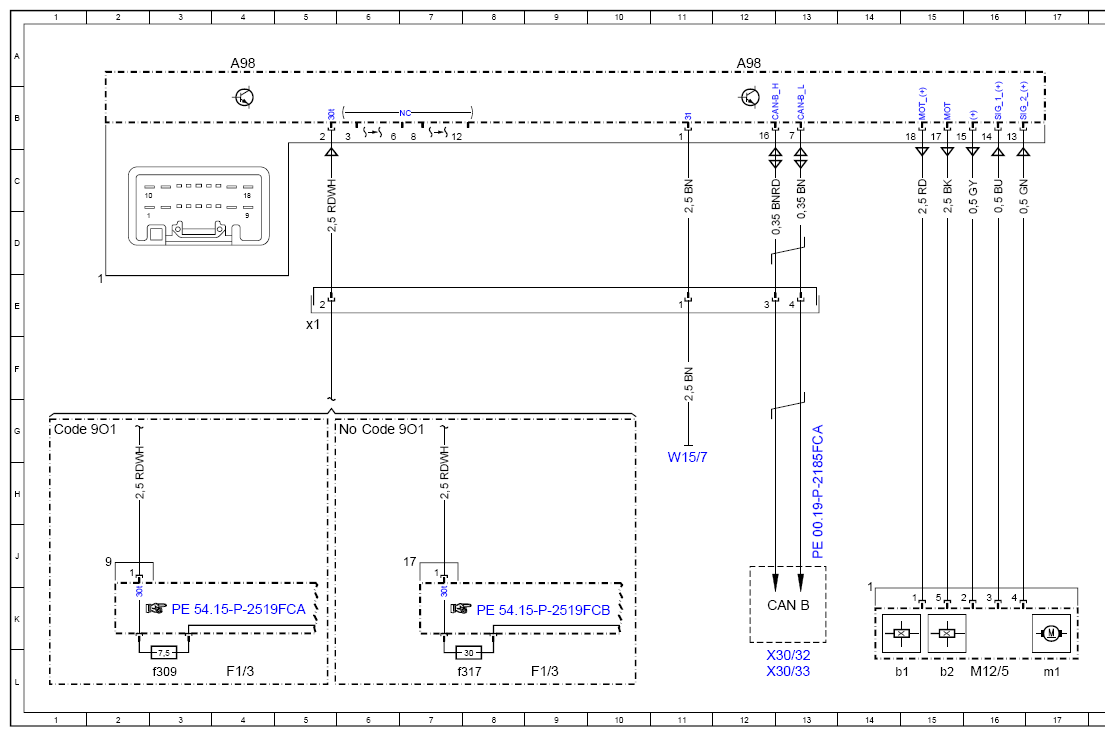

| A98 | Panoramic sliding sunroof control module | 4A |
| A98 | Panoramic sliding sunroof control module | 12A |
| A98 | Panoramic sliding sunroof control module | 30A |

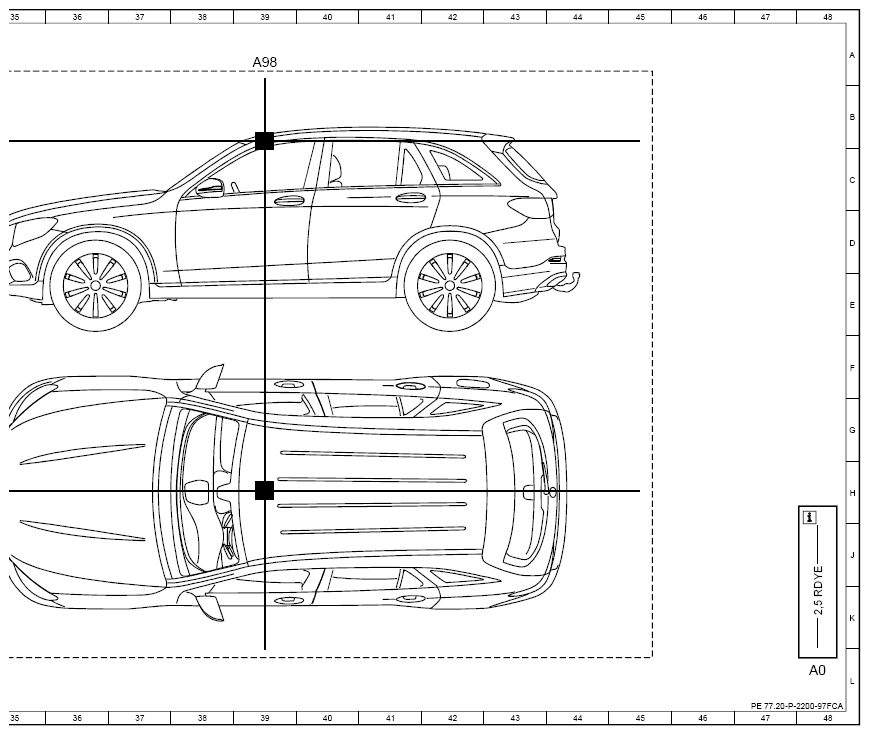

| A98 | Panoramic sliding sunroof control module | 39A |
| A98x1 | Panoramic sliding sunroof control module electrical connector | 5E |
| CAN B | Interior CAN | 13K |
| Code 9O1 | Fuel cell retrofitting | 1G |
| Code 9O1 | Fuel cell retrofitting | 6G |
| Code FV | LONG SEDAN | 18A |
| F1/3 | Passenger-side A-pillar fuse box | 4L |
| F1/3 | Passenger-side A-pillar fuse box | 9L |
| F1/3f309 | Fuse 309 | 3L |
| F1/3f317 | Fuse 317 | 8L |
| M12/5 | Panoramic sliding roof roller sun blind drive unit | 16L |
| M12/5b1 | Hall sensor 1, panoramic sliding roof roller sun blind | 14L |
| M12/5b2 | Hall sensor 2, panoramic sliding roof roller sun blind | 15L |
| M12/5m1 | Panoramic sliding roof roller sun blind motor | 17L |
| N10/6 | Front SAM control unit | 20L |
| N10/8 | Rear SAM control unit | 24L |

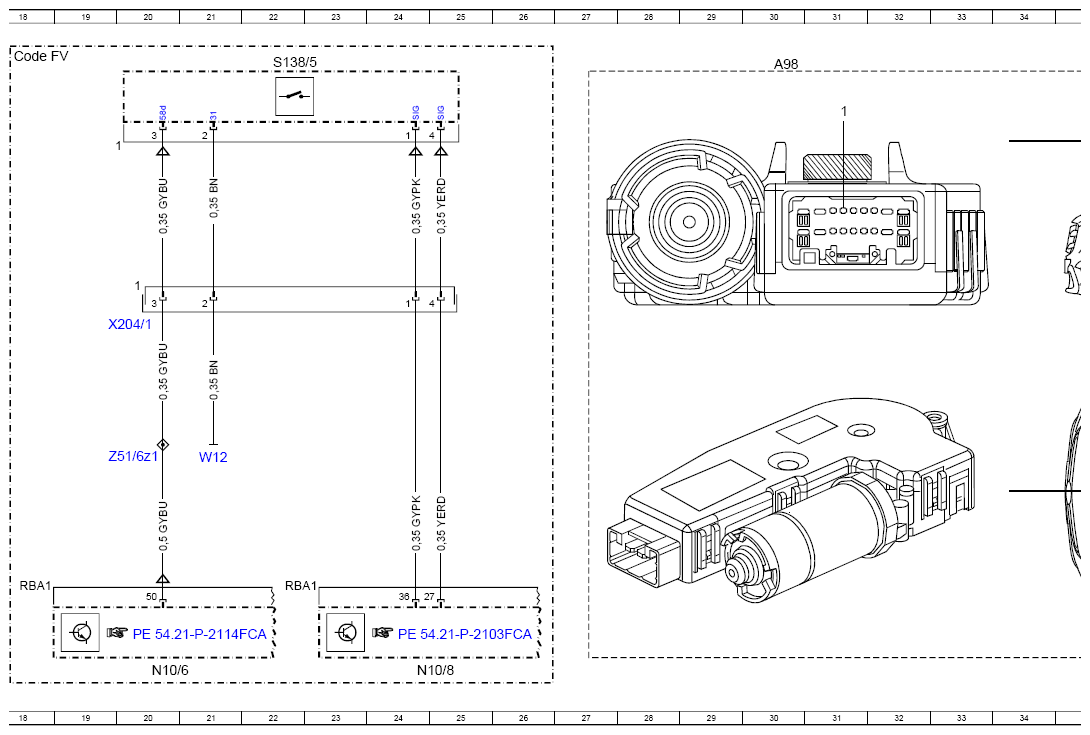

| S138/5 | Panoramic sliding sunroof roller sun blind button | 22A |
| W12 | Ground point (center console) | 21H |
| W15/7 | Right front footwell ground point | 11H |
| X204/1 | Panoramic roof roller sun blind electrical connector | 20E |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 13L |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 13L |
| Z51/6z1 | Circuit 58d vehicle interior connector sleeve | 20G |
