Wiring Diagram For Mercedes-Benz Intelligent Drive Control Unit - PE30.30-P-2106-97FCA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.99) as of model year 2020
with code 233 (DISTRONIC PLUS)
Control unit N62/4
| Code: | Designation: | Position: |
|---|---|---|

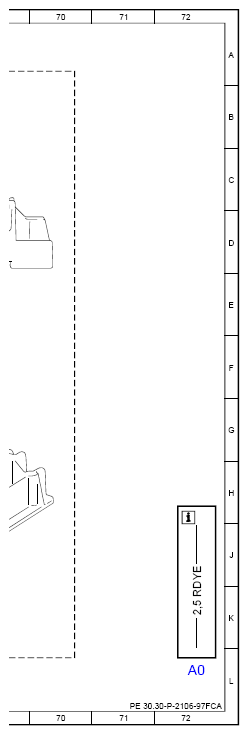

| AO | Use of wiring diagrams | 72L |

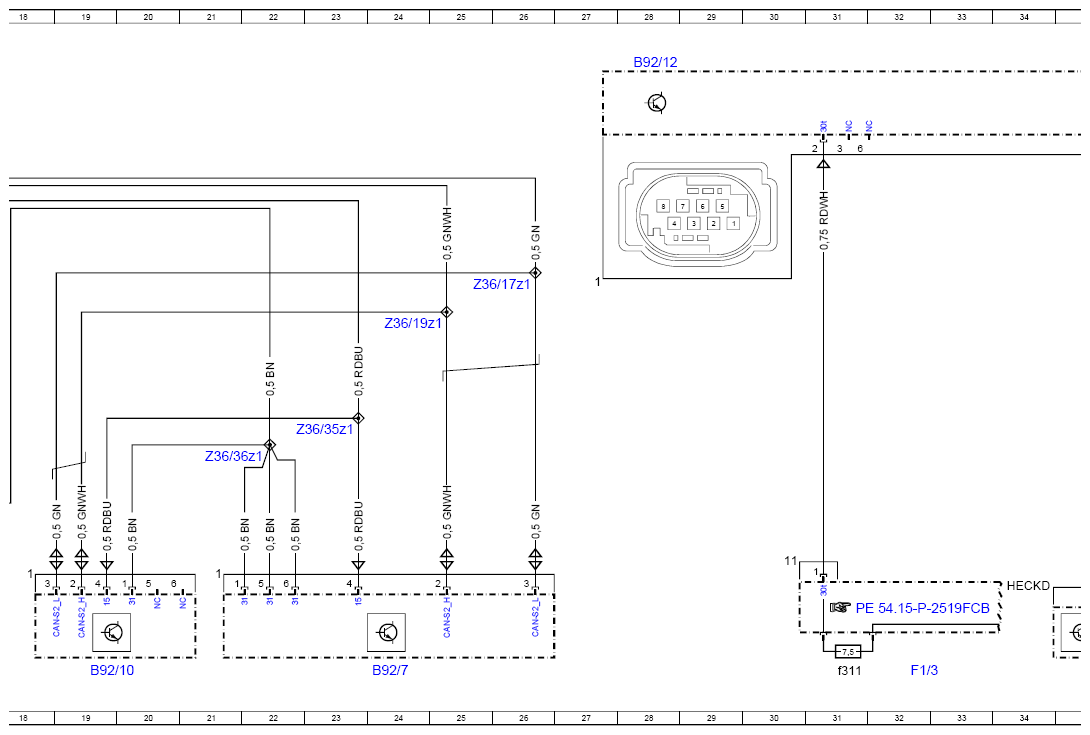

| B92/10 | Left outer rear bumper radar sensor | 19L |

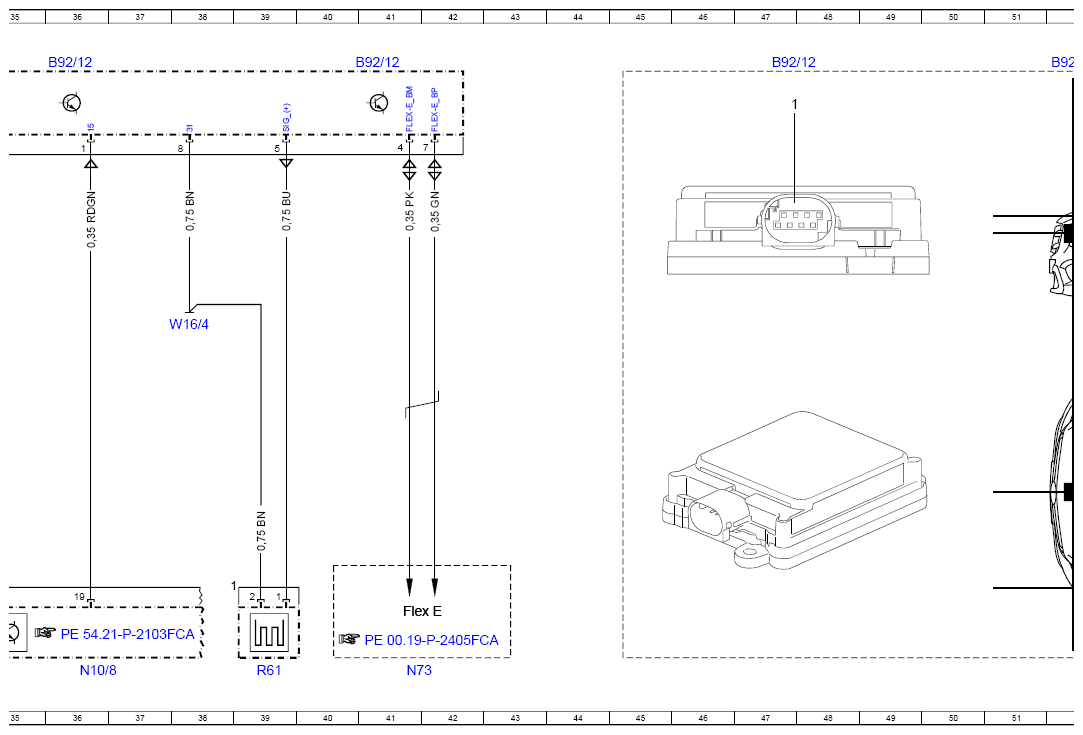

| B92/12 | Short and long-range radar sensor | 28A |
| B92/12 | Short and long-range radar sensor | 36A |
| B92/12 | Short and long-range radar sensor | 41A |
| B92/12 | Short and long-range radar sensor | 47A |
| B92/12 | Short and long-range radar sensor | 52A |
| B92/7 | Right outer rear bumper radar sensor | 24L |
| F1/3 | Passenger-side A-pillar fuse box | 32L |
| F1/3f311 | Fuse 311 | 31L |
| Flex E | Chassis FlexRay | 9K |
| Flex E | Chassis FlexRay | 41K |
| K40/5 | Rear fuse and relay module | 6L |
| K40/5f472 | Fuse 472 | 5L |
| N10/8 | Rear SAM control unit | 36L |
| N10/8 | Rear SAM control unit | 13L |

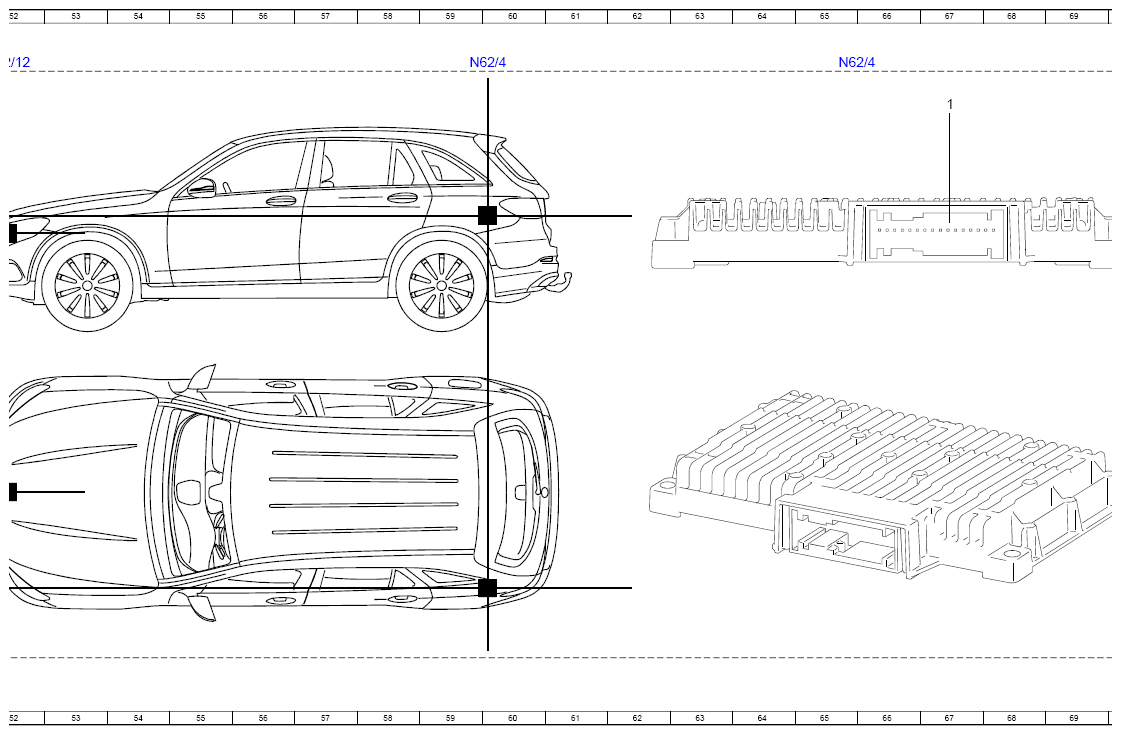

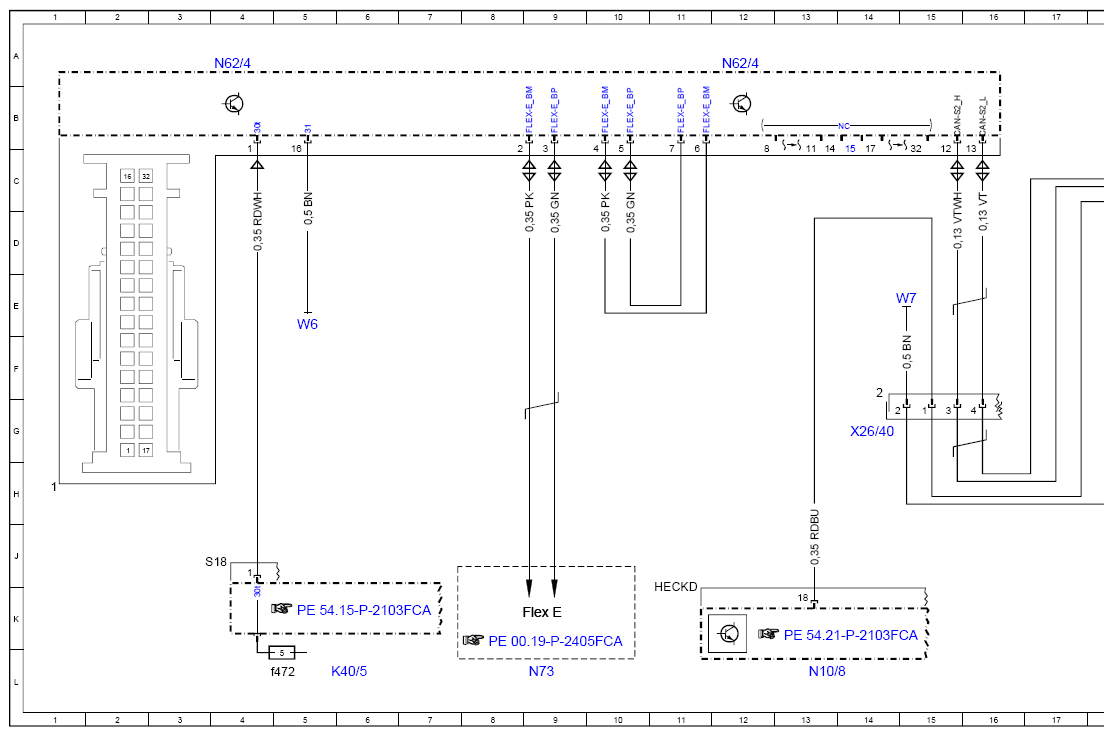

| N62/4 | Mercedes-Benz Intelligent Drive control unit | 4A |
| N62/4 | Mercedes-Benz Intelligent Drive control unit | 12A |
| N62/4 | Mercedes-Benz Intelligent Drive control unit | 59A |
| N62/4 | Mercedes-Benz Intelligent Drive control unit | 65A |
| N73 | Electronic ignition switch control unit | 9L |
| N73 | Electronic ignition switch control unit | 41L |
| R61 | Radome heater | 39L |
| W16/4 | Right major assembly compartment ground point | 38E |
| W6 | Left wheel arch trunk ground point | 5E |
| W7 | Right wheel house trunk ground point | 15E |
| X26/40 | Rear frame floor assembly/bumper electrical connector | 14G |
| Z36/17z1 | Rear sensor CAN (low) connector sleeve | 26E |
| Z36/19z1 | Rear sensor CAN (high) connector sleeve | 24E |
| Z36/35z1 | Rear bumper circuit 15 connector sleeve | 23G |
| Z36/36z1 | Rear bumper circuit 31 connector sleeve | 21G |
