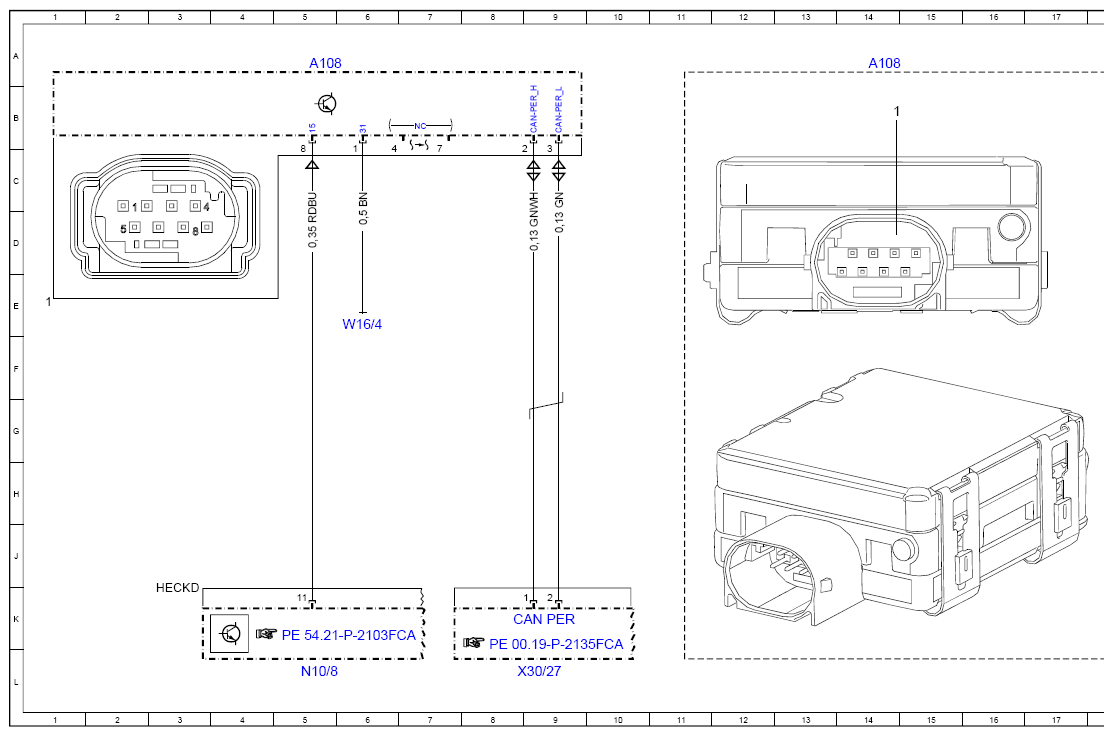

Wiring Diagram For Active Brake Assist Controller Unit - PE30.30-P-2108-97FCA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.99) as of model year 2020
with code 258 (Active Brake Assist System)
Control unit A108
| Code: | Designation: | Position: |
|---|---|---|
| AO | Use of wiring diagrams | 32L |

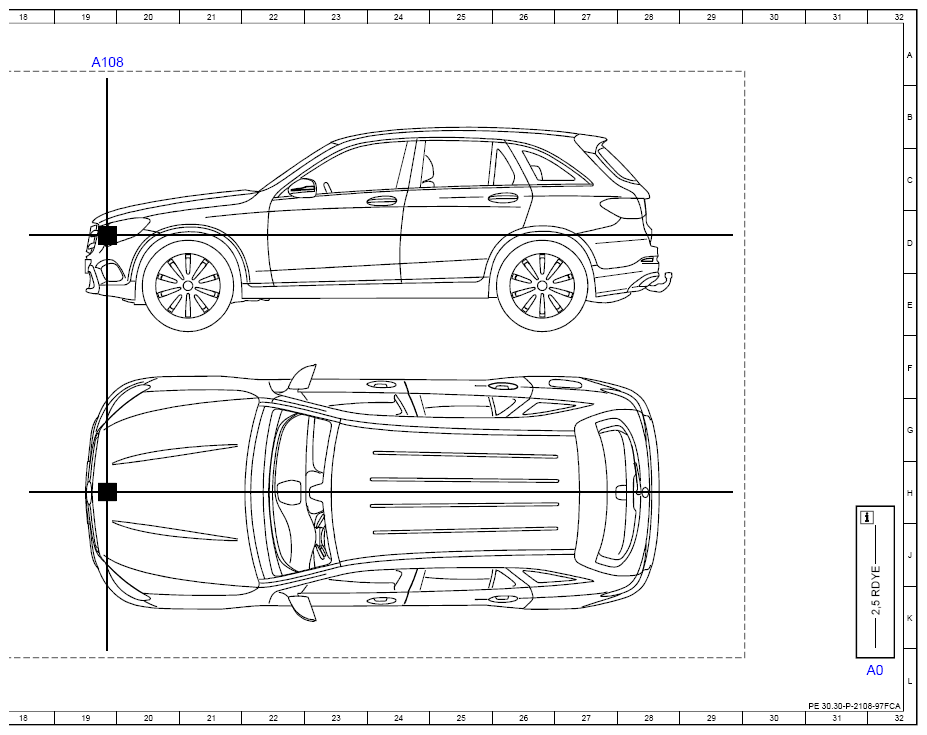

| A108 | Active Brake Assist controller unit | 5A |
| A108 | Active Brake Assist controller unit | 14A |
| A108 | Active Brake Assist controller unit | 19A |
| CAN PER | Peripherals CAN | 9K |
| N10/8 | Rear SAM control unit | 5L |
| W16/4 | Right major assembly compartment ground point | 6E |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 9L |
