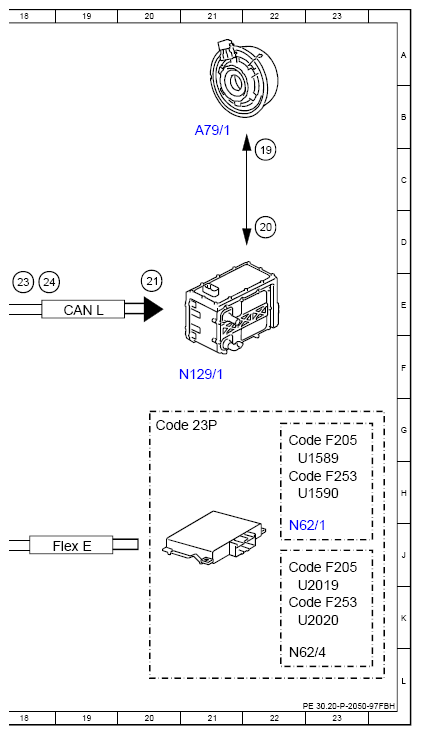

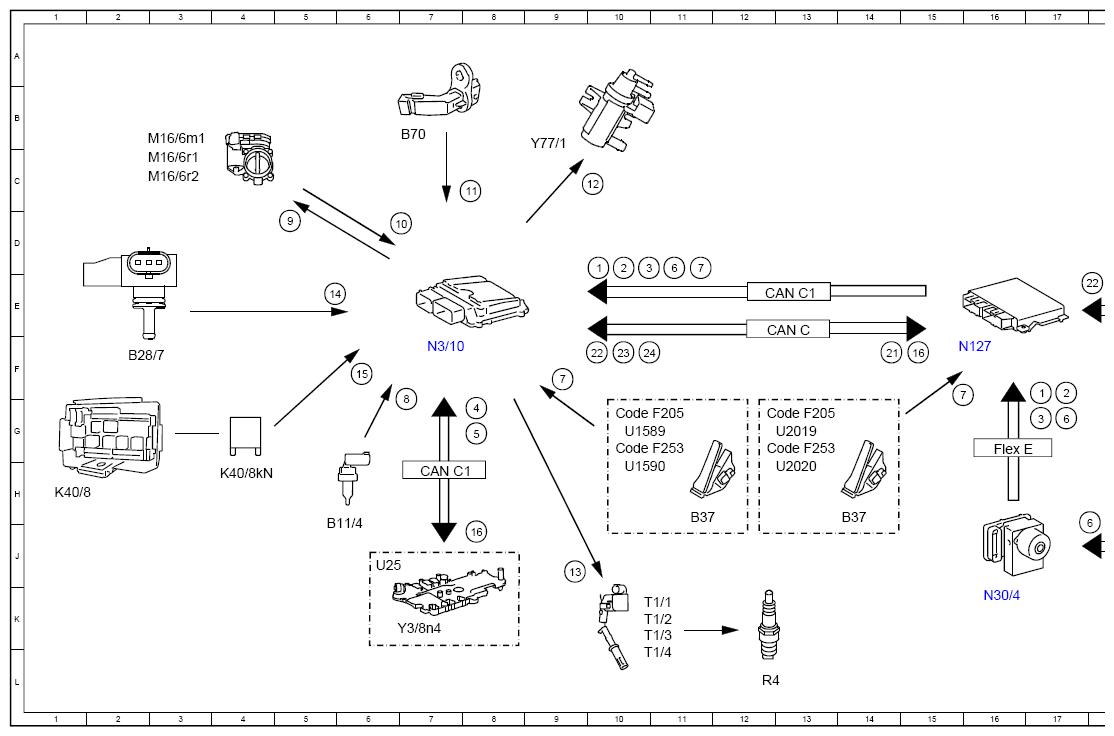

Electrical Function Schematic For Electronic Accelerator - PE30.20-P-2050-97FBH
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Engine 274.9 in model 205.047/053/054/147/247/253
Engine 274.9 in model 253.353/354/953/954
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Cruise control, request | 17F |
| 1 | Cruise control, request | 10D |
| 10 | Throttle valve position, signal | 6D |
| 11 | Engine speed, signal | 8C |
| 12 | Boost pressure control pressure transducer, actuation | 10C |
| 13 | Ignition coils, actuation | 9J |
| 14 | Engine load, signal | 5E |
| 15 | Circuit 87, status | 6F |
| 16 | Engine running, signal | 8J |
| 16 | Engine running, signal | 15F |
| 19 | Discharge current for motor operation, energy flow | 22C |
| 2 | Service brake, status | 17F |
| 2 | Service brake, status | 10D |
| 20 | Charging current from alternator operation, energy flow | 22D |
| 21 | Electric machine specified torque, request | 14F |
| 21 | Electric machine specified torque, request | 20E |
| 22 | Available torque, signal | 10F |
| 22 | Available torque, signal | 18E |
| 23 | Electric machine motor torque, signal | 10F |
| 23 | Electric machine motor torque, signal | 18E |
| 24 | Electric machine generative torque, signal | 10F |
| 24 | Electric machine generative torque, signal | 18E |
| 3 | Wheel speed, signal | 17G |
| 3 | Wheel speed, signal | 10D |
| 4 | Gear range, status | 8G |
| 5 | Reverse gear, status | 8G |
| 6 | DISTRONIC, request | 17J |
| 6 | DISTRONIC, request | 17G |
| 6 | DISTRONIC, request | 11D |
| 7 | Accelerator pedal sensor, signal | 9F |
| 7 | Accelerator pedal sensor, signal | 15F |
| 7 | Accelerator pedal sensor, signal | 11D |
| 8 | Coolant temperature sensor, signal | 7G |
| 9 | Throttle valve actuator motor, actuation | 5D |
| A79/1 | Electric machine | 21B |
| B11/4 | Coolant temperature sensor | 5J |
| B28/7 | Pressure sensor downstream of throttle valve | 2F |
| B37 | Accelerator pedal sensor | 11H |
| B37 | Accelerator pedal sensor | 14H |
| B70 | Crankshaft Hall sensor | 7B |
| CAN C | Engine CAN | 13E |
| CAN C1 | Drive train CAN | 7H |
| CAN C1 | Drive train CAN | 13E |
| CAN L | Hybrid CAN | 19E |
| Code 23P | Driver assistance package | 20G |
| Code F205 | MODEL SERIES 205 | 22G |
| Code F205 | MODEL SERIES 205 | 22J |
| Code F205 | MODEL SERIES 205 | 10G |
| Code F205 | MODEL SERIES 205 | 12G |
| Code F253 | MODEL SERIES 253 | 22H |
| Code F253 | MODEL SERIES 253 | 22K |
| Code F253 | MODEL SERIES 253 | 10G |
| Code F253 | MODEL SERIES 253 | 12G |
| Flex E | Chassis FlexRay | 19J |
| Flex E | Chassis FlexRay | 16G |
| K40/8 | Engine fuse and relay module | 1H |
| K40/8kN | Circuit 87M relay | 4H |
| M16/6m1 | Throttle valve actuator motor | 2B |
| M16/6r1 | Actual value potentiometer 1 | 2C |
| M16/6r2 | Actual value potentiometer 2 | 2C |
| N127 | Drivetrain control unit | 16F |
| N129/1 | Power electronics control unit | 21F |
| N3/10 | ME-SFI [ME] control unit | 7F |
| N30/4 | Electronic Stability Program control unit | 16K |
| N62/1 | Radar sensors control unit | 22J |
| N62/4 | Mercedes-Benz Intelligent Drive control unit | 22L |
| R4 | Spark plugs | 12L |
| T1/1 | Cylinder 1 ignition coil | 10K |
| T1/2 | Cylinder 2 ignition coil | 10K |
| T1/3 | Cylinder 3 ignition coil | 10K |
| T1/4 | Cylinder 4 ignition coil | 10L |
| U1589 | Valid up to model year 2019 | 22H |
| U1589 | Valid up to model year 2019 | 10G |
| U1590 | Valid up to model year 2020 | 22H |
| U1590 | Valid up to model year 2020 | 10H |
| U2019 | Valid as of model year 2019 | 22K |
| U2019 | Valid as of model year 2019 | 13G |
| U2020 | Valid as of model year 2020 | 22K |
| U2020 | Valid as of model year 2020 | 13H |
| U25 | Valid for automatic transmission | 6J |
| Y3/8n4 | Fully integrated transmission control control unit | 7K |
| Y77/1 | Boost pressure control pressure transducer | 9B |
