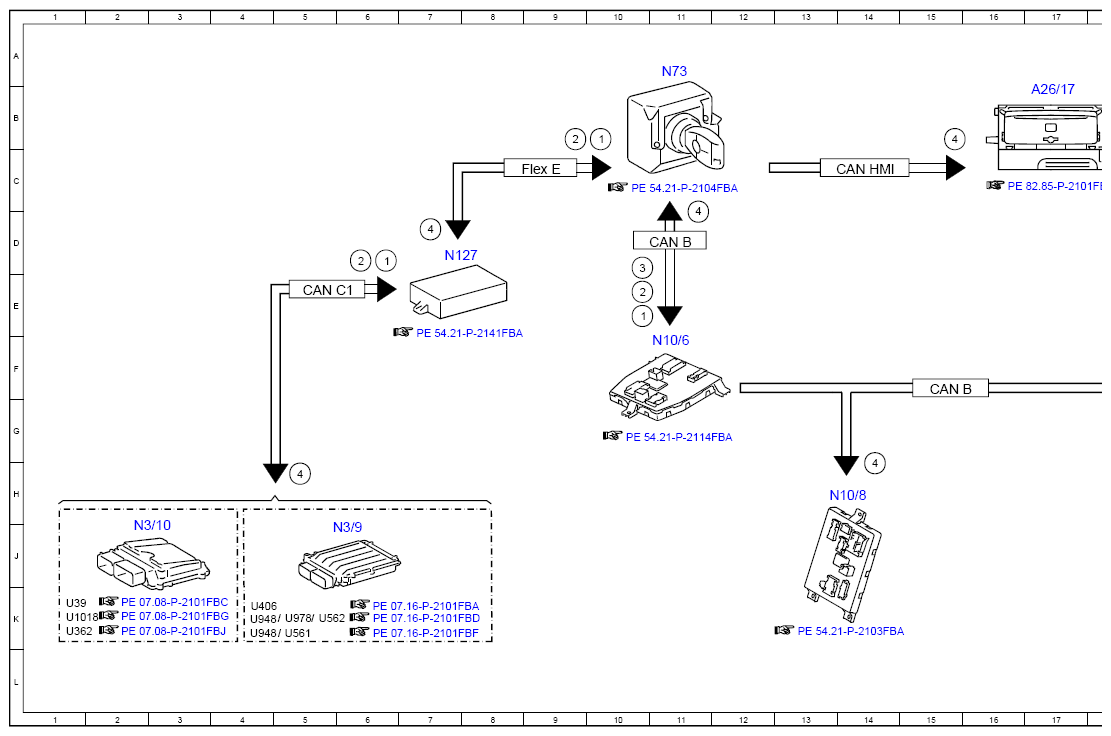

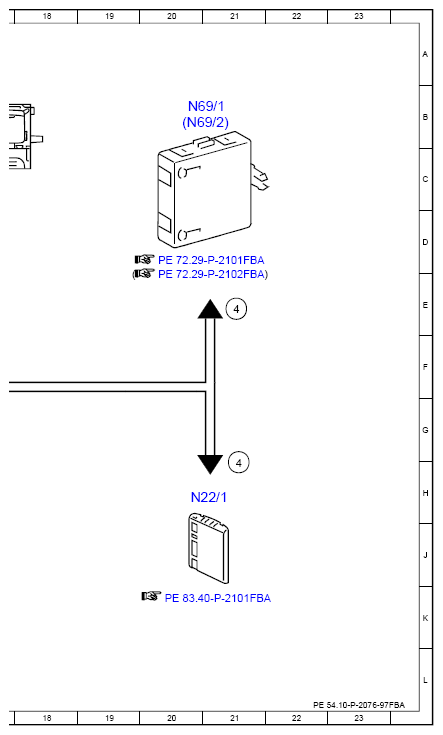

Electrical Function Schematic For Comfort Function Shutoff - PE54.10-P-2076-97FBA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205, 253
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine running, signal | 6D |
| 1 | Engine running, signal | 10E |
| 1 | Engine running, signal | 10B |
| 2 | Drivetrain operational, signal | 6D |
| 2 | Drivetrain operational, signal | 10E |
| 2 | Drivetrain operational, signal | 9B |
| 3 | Circuit 15, status | 10D |
| 4 | Consumer shutoff, request | 7D |
| 4 | Consumer shutoff, request | 21E |
| 4 | Consumer shutoff, request | 21H |
| 4 | Consumer shutoff, request | 11D |
| 4 | Consumer shutoff, request | 14H |
| 4 | Consumer shutoff, request | 5H |
| 4 | Consumer shutoff, request | 15B |
| A26/17 | Head unit | 17B |
| CAN B | Interior CAN | 11D |
| CAN B | Interior CAN | 15F |
| CAN C1 | Drive train CAN | 5E |
| CAN HMI | User interface CAN | 14C |
| Flex E | Chassis FlexRay | 9C |
| N10/6 | Front SAM control unit | 11F |
| N10/8 | Rear SAM control unit | 14H |
| N127 | Drivetrain control unit | 7D |
| N22/1 | Climate control control unit | 20H |
| N3/10 | ME-SFI [ME] control unit | 2J |
| N3/9 | CDI control unit | 6J |
| N69/1 | Left front door control unit | 20B |
| N69/2 | Right front door control unit | 20B |
| N73 | Electronic ignition switch control unit | 11A |
| U1018 | Valid for gasoline engine 276 | 1K |
| U362 | Valid for gasoline engine 274 | 1K |
| U39 | Valid for gasoline engine 177 | 1K |
| U406 | Valid for diesel engine 626 | 4K |
| U561 | Valid for Delphi system | 5K |
| U562 | Valid for Bosch system | 5K |
| U948 | Valid for diesel engine 651 | 4K |
| U948 | Valid for diesel engine 651 | 4K |
| U978 | Valid for hybrid drive | 5K |
