Remove/Install Trailer Hitch Socket Housing - AR31.19-P-1350LWH
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253.3/9
with code 460 (Canada version)
with code 550 (Trailer coupling)
Model 253.3/9
with code 494 (US version)
with code 550 (Trailer coupling)
Model 253.3/9
with code 550 (Trailer coupling)
with code 737L (Mexico)
| Notes on sensor system for trunk lid opening/closing | Model 253.3/9 with code 460 (Canada version) with code 550 (Trailer coupling) with code 871 (HANDS-FREE ACCESS) with code 889 (KEYLESS-GO) Model 253.3/9 with code 494 (US version) with code 550 (Trailer coupling) with code 871 (HANDS-FREE ACCESS) with code 889 (KEYLESS-GO) Model 253.3/9 with code 550 (Trailer coupling) with code 737L (Mexico) with code 871 (HANDS-FREE ACCESS) with code 889 (KEYLESS-GO) |
AH80.61-P-0001-01A | |
| Remove/install | |||

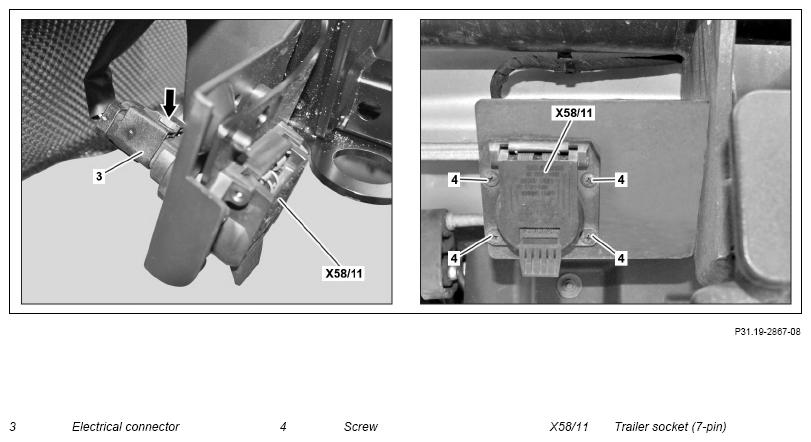

| 1 | Remove screws (4) | ||
| 2 | Release electrical connection (3) at 7-pin trailer socket (X58/11) (arrow) and disconnect | ||
| 3 | Remove 7-pin trailer socket (X58/11) | ||
| 4 | Install in the reverse order | ||
| Check | |||
| 5 | Perform function check of light signals at 7-pin trailer socket (X58/11) | ||
| AN31.10-P-0008-01LWG |
