Remove/Install Trailer Hitch Socket Housing - AR31.19-P-1350LWG
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253.3/9
with code 550 (Trailer coupling)
except code 460 (Canada version)
except code 494 (US version)
except code 737L (Mexico)
Model 293
with code 550 (Trailer coupling)
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||

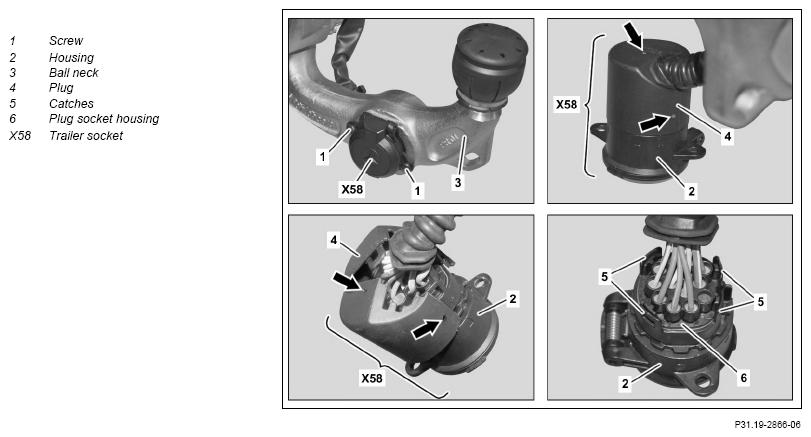

| 1 | Release ball neck (3). | ||
| 2 | Unscrew screw/bolts (1). | ||
| 3 | Route trailer socket (X58) out of ball neck (3). | ||
| 4 | Release plug (4) by passing a screwdriver though holes (arrows). | ||
| 5 | Remove plug (4). | ||
| 6 | Release catches (5) and remove housing (2) from plug socket housing (6). | ||
| 7 | Install in the reverse order. | ||
| Check | |||
| 8 | Perform function check of light signals at trailer socket (X58). |
