Retrofit Wiring Harness For Fully Electric Swiveling Trailer Hitch - AN31.19-P-0010-03LWN
Model 253.3/9 as of 6/1/20
| Notice | Notes on the use of paint scraping nuts on ground connections | AH00.19-P-1000-20A | |
| Notice | Notes on retrofitting electrical/optical lines | AH82.00-P-0000-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A |
| Number | Designation | Model 253 (except 253.99) as of model year 2020 | Model 253 (except 253.99) up to model year 2020 | ||
|---|---|---|---|---|---|
| BA00.19-P-1005-01E | Right rear wheel well ground point | W3/8 | Nm | 10 | 10 |
| Number | Designation | Model 253.99 | ||
|---|---|---|---|---|
| BA00.19-P-1005-01E | Right rear wheel well ground point | W3/8 | Nm | 10 |
| Number | Designation | Model 253.99 | ||
|---|---|---|---|---|
| BA00.19-P-1053-01E | Right D-pillar ground point | W29/9 | Nm | 10 |

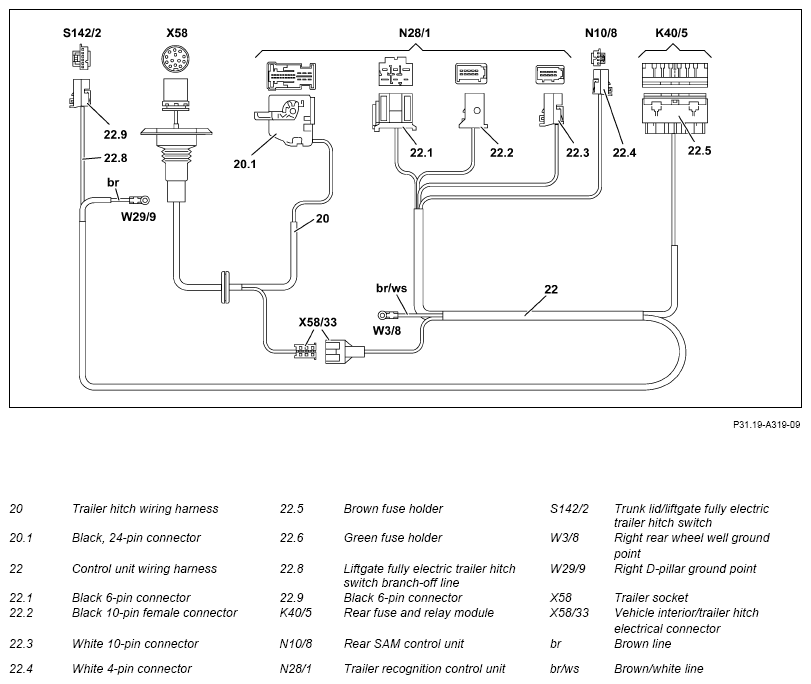

Connection scheme

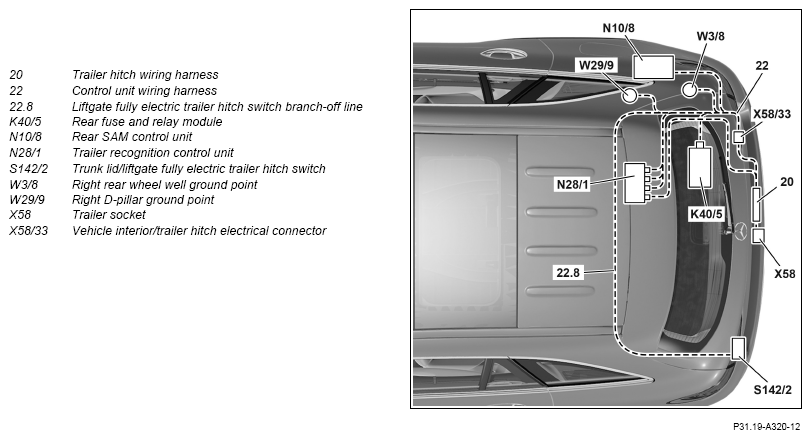

Routing diagram
- Attach black, 24-pin connector (20.1) of the trailer hitch wiring harness (20) to the trailer recognition control unit (N28/1).
The black, 24-pin connector (20.1) was routed into the vehicle interior compartment during installation of the trailer hitch cross member.
- Connect blue 6-pin coupling of trailer hitch wiring harness (20) to blue 6-pin contact socket of control unit wiring harness (22).
This makes the electrical connection for the vehicle interior/trailer hitch (X58/33).
- Fasten electrical connector for vehicle interior/trailer hitch (X58/33) to holder using retaining clip.

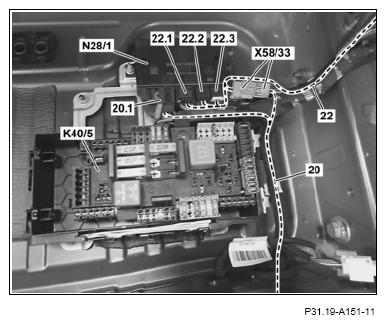

- Connect black 6-pin coupling (22.1) to trailer recognition control unit (N28/1).
- Connect black 10-pin connector (22.2) to trailer recognition control unit (N28/1).
- Connect white, 10-pin coupling (22.3) to the trailer recognition control unit (N28/1).
- Route control unit wiring harness (22) along the existing lines to the right rear wheel well and fasten with cable ties.
- Fit brown fuse holder (22.5) of wiring harness for control unit (22) into "S14" slot on rear fuse and relay module (K40/5).
Slot "S14" on the rear fuse and relay module (K40/5) is labeled.
- Check fuse assignment on brown fuse holder (22.5), correct if necessary.
Fuse assignment:
Contact cavity 1 = 30A
Contact cavity 2 = 20A
Contact cavity 3 = 30A
Contact cavity 4 = 30A
Contact cavity 5 = 20A

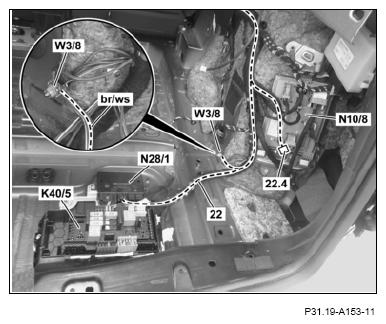

- Route white 4-pin coupling (22.4) to rear SAM control unit (N10/8) and connect.
- Route control unit wiring harness (22) to right D-pillar.
- Route brown/white line (BN/WH) to right rear wheel arch ground point (W3/8) and connect
.
A maximum of 4 round cable lugs may be connected per ground point. In the event of over-assignment, any free ground point should be selected.
- Route brown line (BN) to right D-pillar ground point (W29/9) and connect Model 253.99
.
A maximum of 4 round cable lugs may be connected per ground point. In the event of over-assignment, any free ground point should be selected.

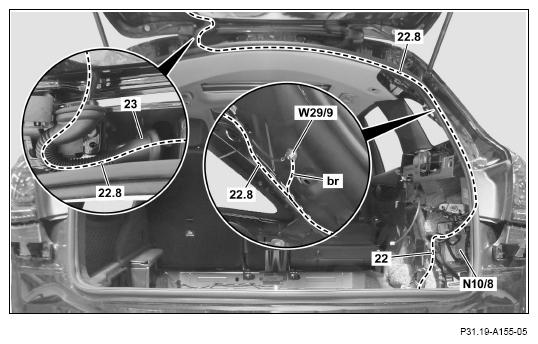

- Release cable duct (23).
- Wrap felt tape around liftgate fully electric trailer hitch switch branch-off line (22.8) of control unit wiring harness (22) in area of roof lining.

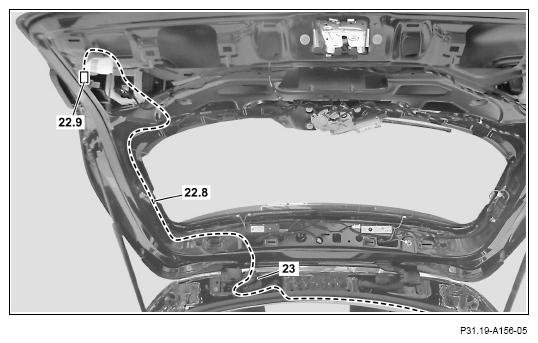

- Route liftgate fully electric trailer hitch switch branch-off line (22.8) of control unit wiring harness (22) through cable duct (23) to liftgate.
Use a pull-through device in the area of the cable duct (23).
- Route tailgate fully electric trailer hitch switch branch-off line (22.8) of control unit wiring harness (22) to installation location of trunk/tailgate fully electric trailer hitch switch (S142/2) along vehicle wiring harness.
The black 6-pin coupling (22.9) must protrude far enough to enable the trunk/liftgate fully electric trailer hitch switch (S142/2) to be connected at a later stage.
- Fasten the liftgate full electric trailer hitch switch branch-off line (22.8) to the vehicle wiring harness using cable ties.
- Fasten cable duct (23).
