Retrofit Trailer Coupling Control Unit - AN31.19-P-8080-05LWM

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 253.3/9 as of 6/1/19

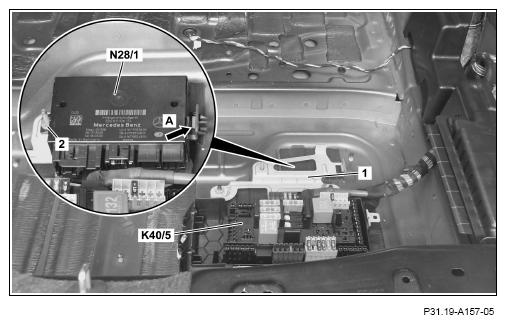

Insert trailer recognition control unit (N28/1) into shackle (arrow A) of bracket (1) and tighten with nut (2).
The electrical contact sockets will be connected to the trailer recognition control unit (N28/1) at a later stage.
