Retrofit Switch For Fully Electric Trailer Hitch On Driver Door - AN31.19-P-0010-06LWG

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 253.3/9

1.1 Model 253.3/9
except code 890 (EASY-PACK-tailgate)

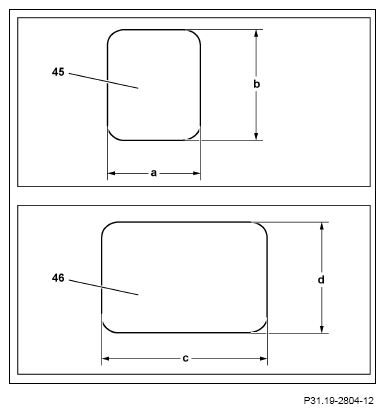

Make cutting template (45) according to dimensions.

Dimensions:

a = 40 mm

b = 55 mm

1.2 Model 253.3/9

with code 890 (EASY-PACK-tailgate)

Make cutting template (46) according to dimensions.

Dimensions:

c = 75 mm

d = 55 mm

Courtesy of MERCEDES-BENZ USA

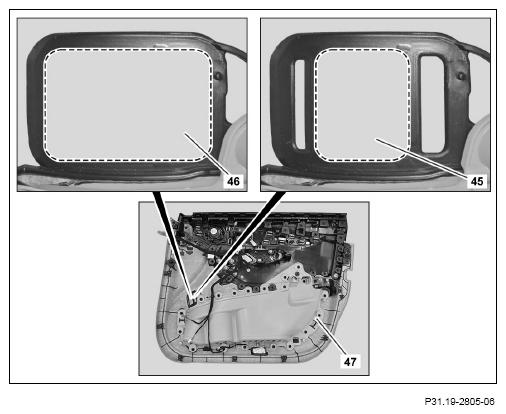

Attach cutting template (45 or 46) to inside of door panel (47).
Center cutting template (45 or 46) and secure using duct tape.
Mark separation line (broken line) along contours of cutting template (45 or 46).
Remove cutting template (45 or 46).
Make cutout along previously made separation line (broken line).

Courtesy of MERCEDES-BENZ USA
7.1 Model 253.3/9
except code 890 (EASY-PACK-tailgate)

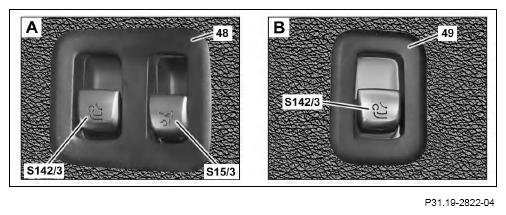

Insert driver door fully electric trailer hitch switch (S142/3) into trim (49) (picture B).

The driver door fully electric trailer hitch switch (S142/3) is trapezoidal and fits in the trim (49) in only one position.

Courtesy of MERCEDES-BENZ USA

7.2 Model 253.3/9

with code 890 (EASY-PACK-tailgate)

Insert driver door fully electric trailer hitch switch (S142/3) and driver trunk lid/liftgate control button (S15/3) in trim (48) (picture A).

The driver door fully electric trailer hitch switch (S142/3) is trapezoidal and fits in the trim (48) in only one position.

8.1 Model 253.3/9
except code 890 (EASY-PACK-tailgate)

Install driver door fully electric trailer hitch switch (S142/3) and trim (49) in door panel.

8.2 Model 253.3/9

with code 890 (EASY-PACK-tailgate)

Insert driver door fully electric trailer hitch switch (S142/3), driver trunk lid/liftgate control button (S15/3) and trim (48) in door panel.
