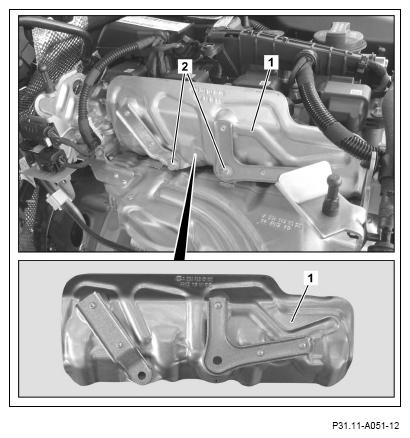

Retrofit Heat Shield - AN31.11-P-8080-14LWM
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253.3/9 as of 6/1/19 with engine 264
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A |
TURBOCHARGER
| Number | Designation | Engine 264 | ||
|---|---|---|---|---|
| BA09.40-P-1014-02C | Screw, ignition system heat shield to cylinder head | M8 | Nm | 20 |
