Retrofit Engine Compartment Paneling - AN31.11-P-8080-11LWG

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 253.3/9

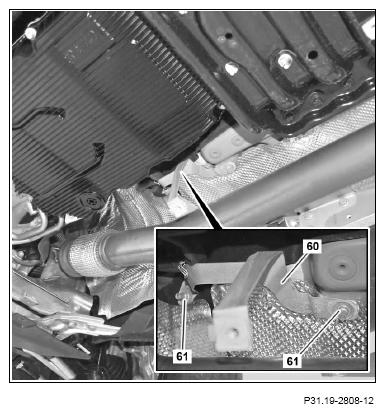

Position bracket (60) on body stud and secure using nuts (61).

Courtesy of MERCEDES-BENZ USA

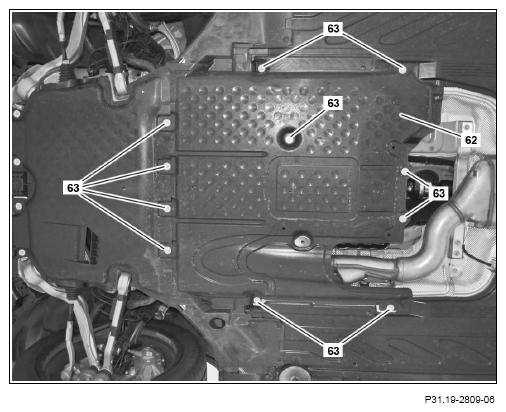

Insert underfloor paneling (62) and secure using screws/bolts (63).

Courtesy of MERCEDES-BENZ USA
