Replace Fan Unit Wiring Harness - AN31.19-P-8100-07LWL
Model 238.318/358/359/380/385/386/387
Model 238.418/458/459/480/485/487
Model 253.313/315/316/353/913/914/915/916/953 as of 6/1/19
Model 253.380/381/384/980/981/983/984 as of 6/1/19
| Topical note | Notes on retrofitting electrical/optical lines | AH82.00-P-0000-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Topical note | Notes on the use of paint scraping nuts on ground connections | AH00.19-P-1000-20A |
| Number | Designation | Model 253 (except 253.99) as of model year 2020 | ||
|---|---|---|---|---|
| BA00.19-P-1003-01E | Left front ground point | W2/2 | Nm | 10 |
| Number | Designation | Model 238 | ||
|---|---|---|---|---|
| BA00.19-P-1003-02B | Left front ground point (Electrical Power Steering) | W2/2 | Nm | 10 |
| Number | Designation | Model 238 | Model 253 | ||
|---|---|---|---|---|---|
| BA54.15-P-1003-01K | Nut, positive line to engine compartment prefuse box | M6 | Nm | 8 | 8 |
| M8 | Nm | 16 | 16 | ||

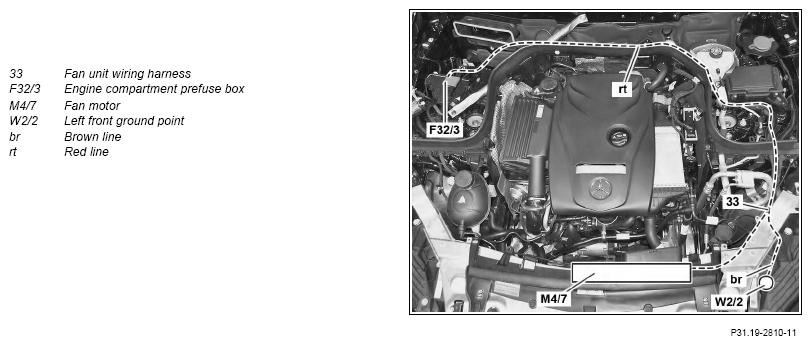

Routing diagram shown on model 253.9
- Wrap fan unit wiring harness (33) with felt tape, starting at the branch-off line of the brown line (BN).

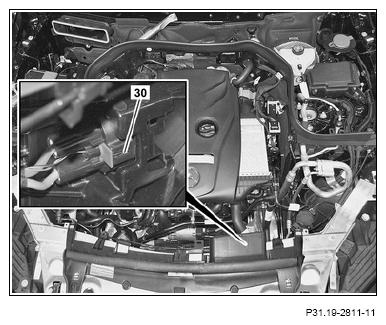

- Detach black 4-pin connector (30) from fan motor.
- Mark contact cavity assignment of black 4-pin coupling housing (30.1).

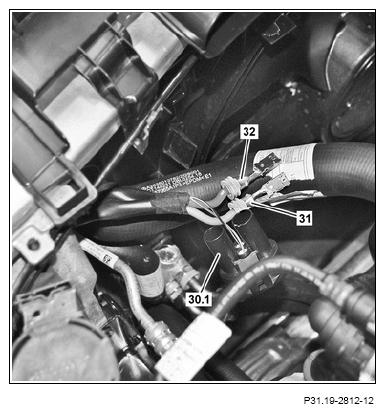

- Remove contact spring (31) of brown line of vehicle wiring harness from black 4-pin coupling housing (30.1).
The appropriate tool is available in the
basic wiring harness repair kit or the
supplementary passenger car wiring harness repair kit.
- Remove contact spring (32) of red line of vehicle wiring harness from black 4-pin coupling housing (30.1).
The appropriate tool is available in the
basic wiring harness repair kit or the
supplementary passenger car wiring harness repair kit.
- Cut off contact springs (31, 32) of vehicle wiring harness.
- Tie back brown line of vehicle wiring harness and insulate.
- Tie back red line of vehicle wiring harness and insulate.

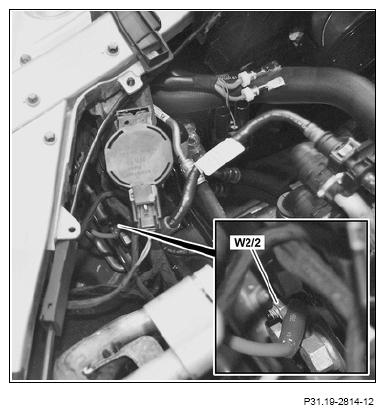

- Detach brown line of vehicle wiring harness from left front ground point (W2/2).
- Cut line lug off brown line of vehicle wiring harness.
- Tie back brown line of vehicle wiring harness and insulate.

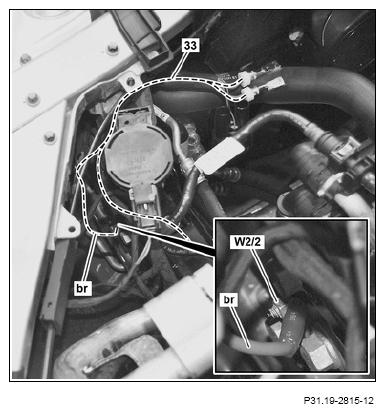

- Route brown line (BN) of fan unit wiring harness (33) to left front ground point (W2/2) and connect Model 253.313/315/316/353/913/914/915/916/953 as of 6/1/19
as of model year 2020
Model 253.380/381/384/980/981/984 as of 6/1/19
as of model year 2020
Model 238.318/358/359/380/385/386/387
Model 238.418/458/459/480/485/487
.

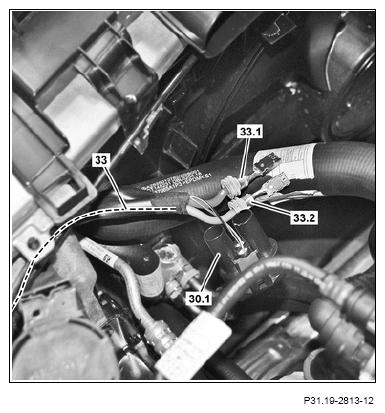

- Install contact spring (33.2) of brown line (BN) of fan unit wiring harness (33) into black 4-pin coupling housing (30.1).
Ensure that seal is correctly seated.
Otherwise water could enter which could then cause a short circuit or corrosion.
The contact cavity assignment was marked previously.
- Install contact spring (33.1) of red line (RD) of fan unit wiring harness (33) into black 4-pin coupling housing (30.1).
Ensure that seal is correctly seated.
Otherwise water could enter which could then cause a short circuit or corrosion.
The contact cavity assignment was marked previously.

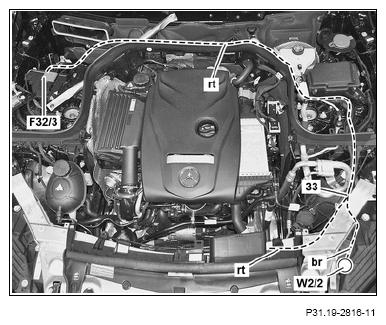

- Route red line (RD) of fan unit wiring harness (33) along existing lines to engine compartment prefuse box (F32/3).
Make sure that movement of the wiper arms is unobstructed.
Otherwise the red line (RD) can be sheared off, thereby causing a short circuit.

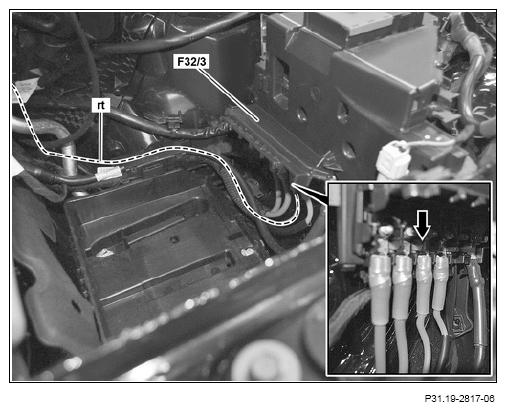

- Detach red line of vehicle wiring harness from contact cavity 3 (arrow) of engine compartment prefuse box (F32/3).
- Cut line lug off red line of vehicle wiring harness.
- Tie back red line of vehicle wiring harness and insulate.
- Attach red line (RD) of fan unit wiring harness (33) to contact cavity 3
(arrow) of engine compartment prefuse box (F32/3)
.
