(Replace Fan Unit Wiring Harness - AN31.19-P-8100-07LWG)
Model 253.3/9 up to 5/31/19
| Number | Designation | Model 253 (except 253.99) | Model 253.99 | ||
|---|---|---|---|---|---|
| BA00.19-P-1003-01E | Left front ground point | W2/2 | Nm | 10 | 10 |
| Number | Designation | Model 253 | ||
|---|---|---|---|---|
| BA54.15-P-1003-01K | Nut, positive line to engine compartment prefuse box | M6 | Nm | 8 |
| M8 | Nm | 16 | ||

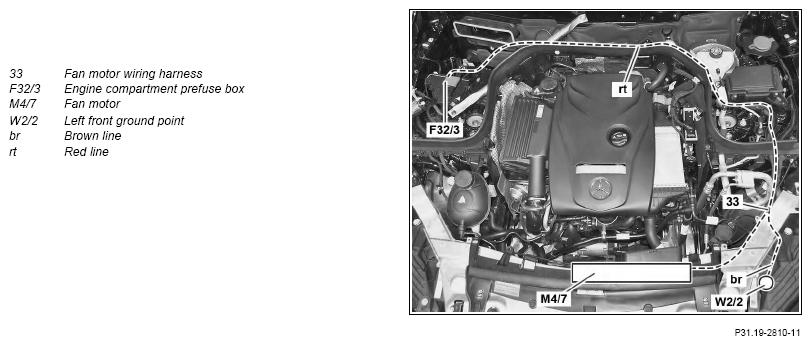

Routing diagram
- Wrap fan motor wiring harness (33) with felt tape, starting at the branch-off line of the brown line (BN).
- Detach black 4-pin connector (30) from fan motor.
- Mark contact cavity assignment of black 4-pin coupling housing (30.1).
- Remove contact spring (31) of brown line of vehicle wiring harness from black 4-pin coupling housing (30.1).
The appropriate tool is available in the
basic wiring harness repair kit or the
supplementary passenger car wiring harness repair kit.
- Remove contact spring (32) of red line of vehicle wiring harness from black 4-pin coupling housing (30.1).
The appropriate tool is available in the
basic wiring harness repair kit or the
supplementary passenger car wiring harness repair kit.
- Cut off contact springs (31 and 32) of vehicle wiring harness.
- Tie back brown line of vehicle wiring harness and insulate.
- Tie back red line of vehicle wiring harness and insulate.
- Detach brown line of vehicle wiring harness from left front ground point (W2/2).
- Cut line lug off brown line of vehicle wiring harness.
- Tie back brown line of vehicle wiring harness and insulate.
- Route brown line (BN) of fan motor wiring harness (33) to left front ground point (W2/2) and connect
.
- Install contact spring (33.2) of brown line of fan motor wiring harness (33) in black 4-pin coupling housing (30.1).
Ensure that seal is correctly seated.
Otherwise water could enter which could then cause a short circuit or corrosion.
The contact cavity assignment was marked previously.
- Install contact spring (33.1) of red line of fan motor wiring harness (33) in black 4-pin coupling housing (30.1).
Ensure that seal is correctly seated.
Otherwise water could enter which could then cause a short circuit or corrosion.
The contact cavity assignment was marked previously.
- Route red line (RD) of fan motor wiring harness (33) along existing lines to engine compartment prefuse box (F32/3).
Make sure that movement of the wiper arms is unobstructed.
Otherwise the red line (RD) can be sheared off, thereby causing a short circuit.
- Detach red line of vehicle wiring harness from contact cavity 3 (arrow) of engine compartment prefuse box (F32/3).
- Cut line lug off red line of vehicle wiring harness.
- Tie back red line of vehicle wiring harness and insulate.
- Attach red line (RD) of fan motor wiring harness to contact cavity 3
(arrow) of engine compartment prefuse box (F32/3)
.
