Add Bumper Cutout - AN31.11-P-8080-02LWG
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253.9
 Courtesy of MERCEDES-BENZ USA
|

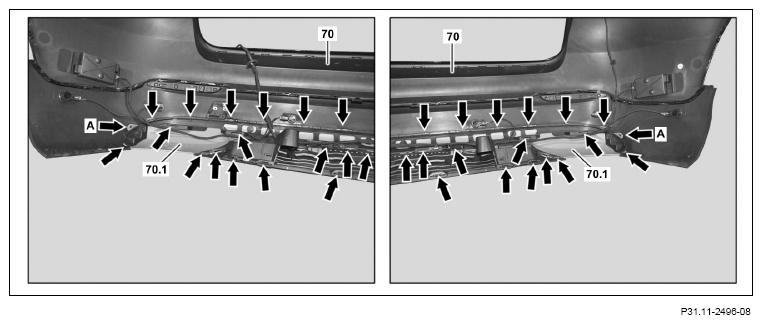

- Detach expansion rivets (arrow A).
- Unclip lower section of bumper (70.1) from bumper (70) (arrows) and remove.

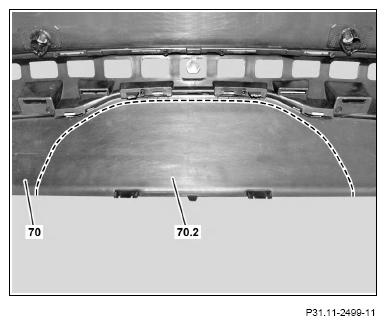

- Cut off section (70.2) from bumper (70) along imprinted line (broken line).
The imprinted line (broken line) is made at the factory.
- Deburr cutting edge.
 Courtesy of MERCEDES-BENZ USA
|
