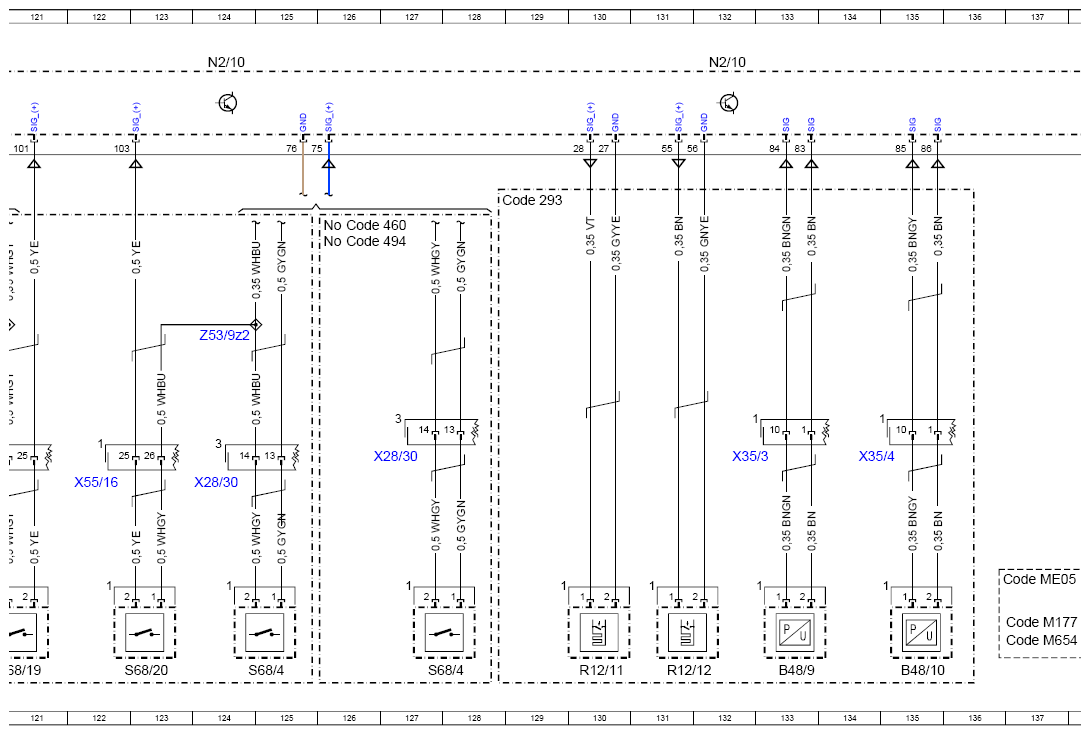

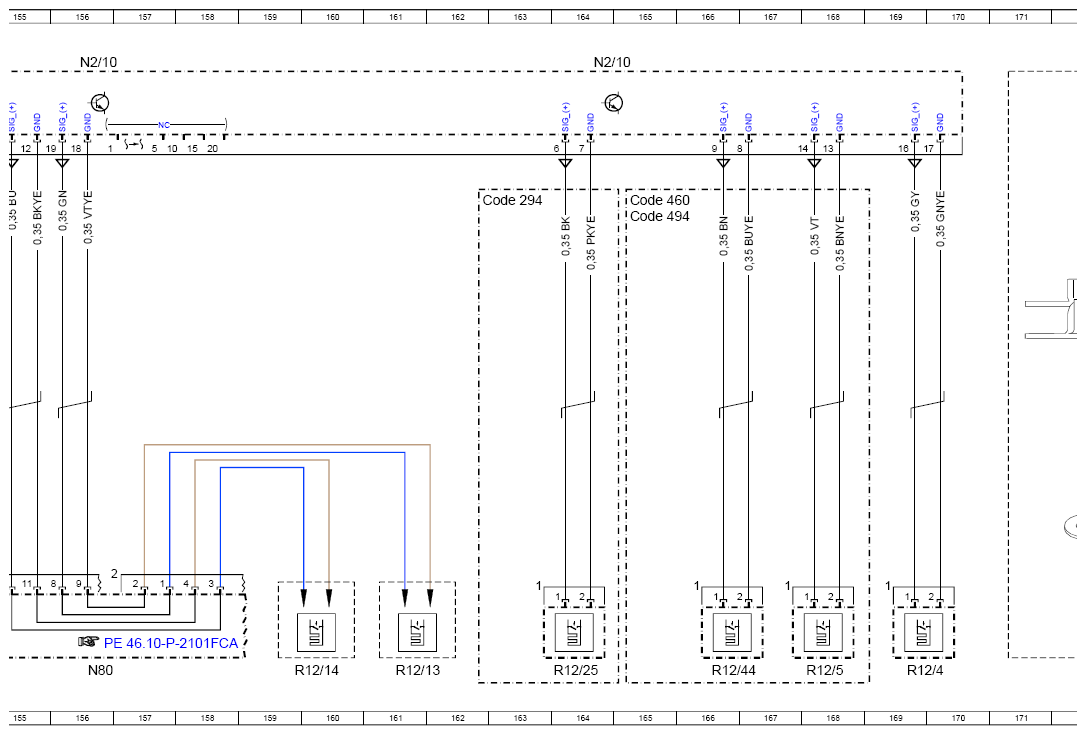

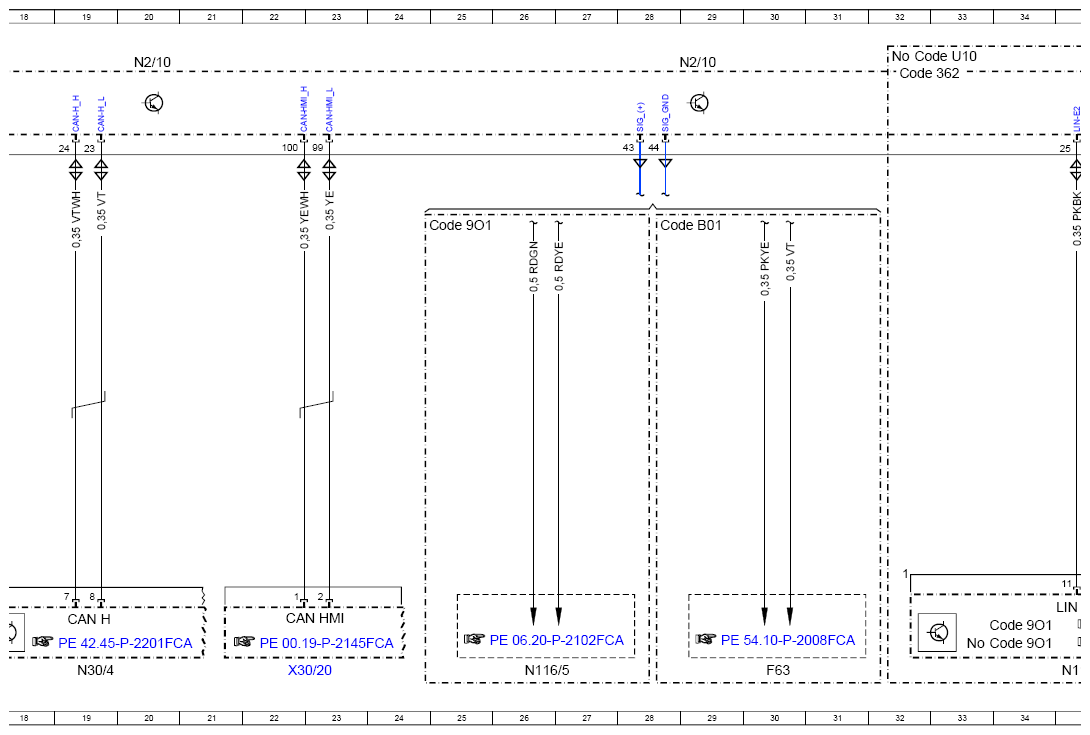

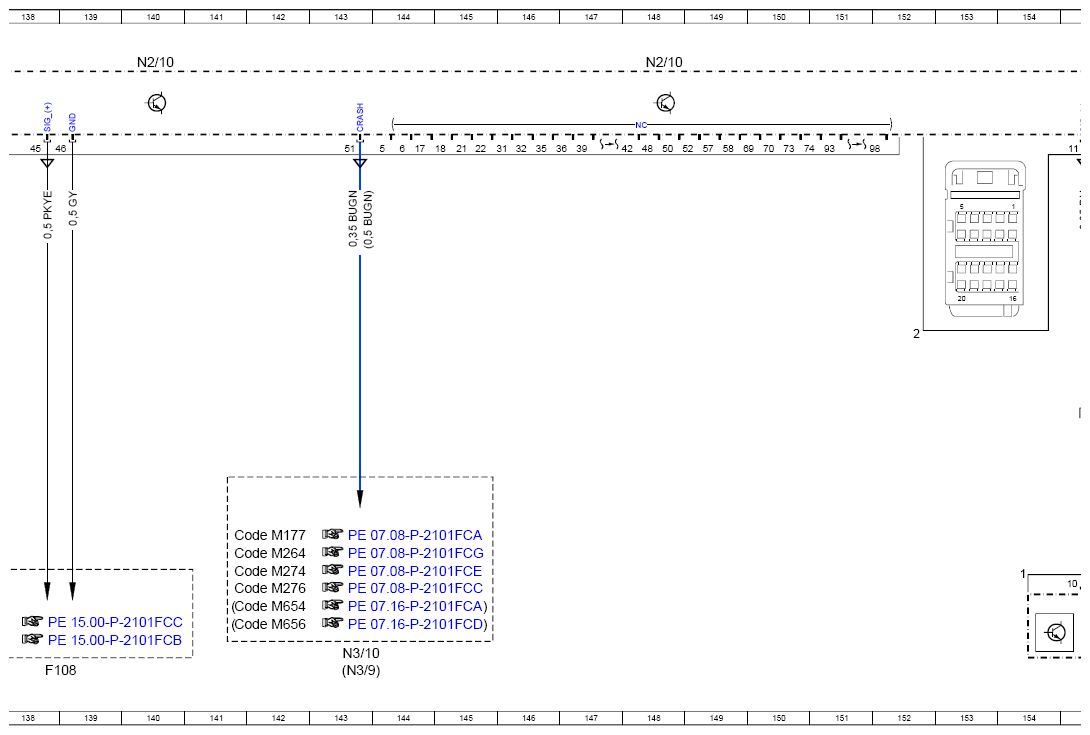

Wiring Diagram For Supplemental Restraint System Control Unit - PE91.60-P-2106-97FCA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 253 (except 253.99)
as of model year 2020
Control unit N2/10
MODEL 253.99
as of model year 2019
with code 9O1 (Fuel cell pre-installation)
Control unit N2/10
| Code: | Designation: | Position: |
|---|---|---|

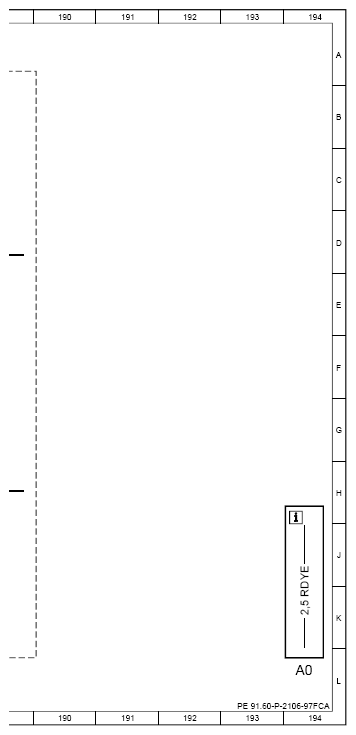

| A0 | Use of wiring diagrams | 194L |

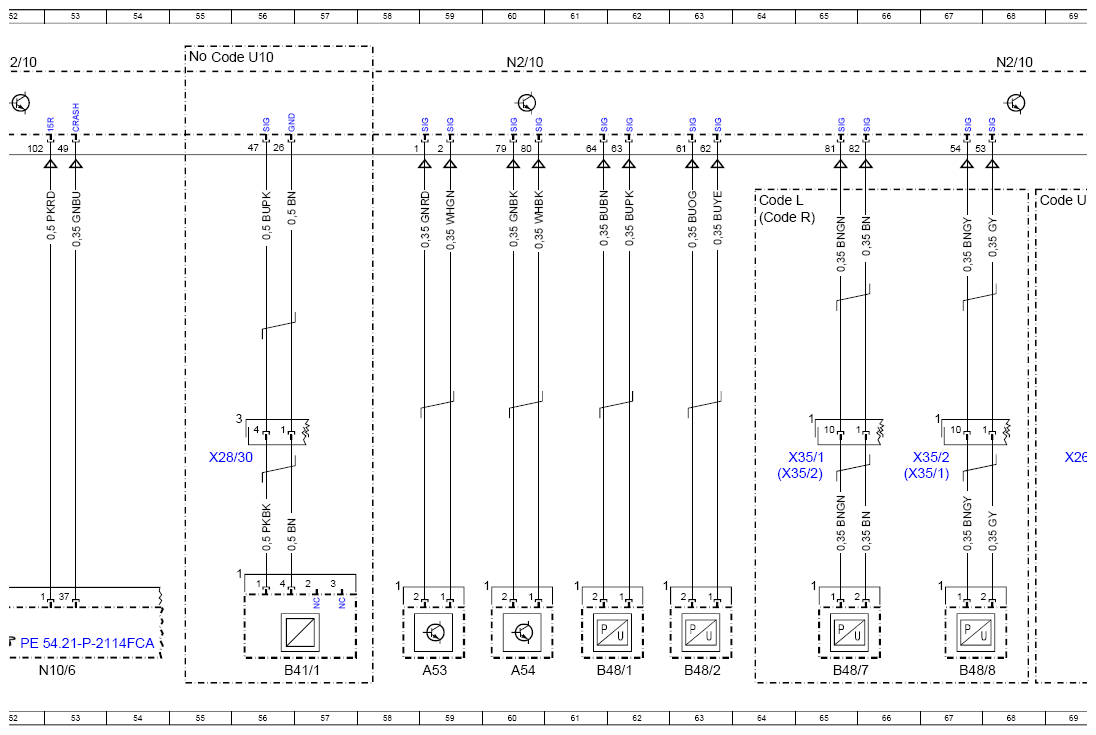

| A53 | Left sidebag sensor | 59L |
| A54 | Right sidebag sensor | 60L |

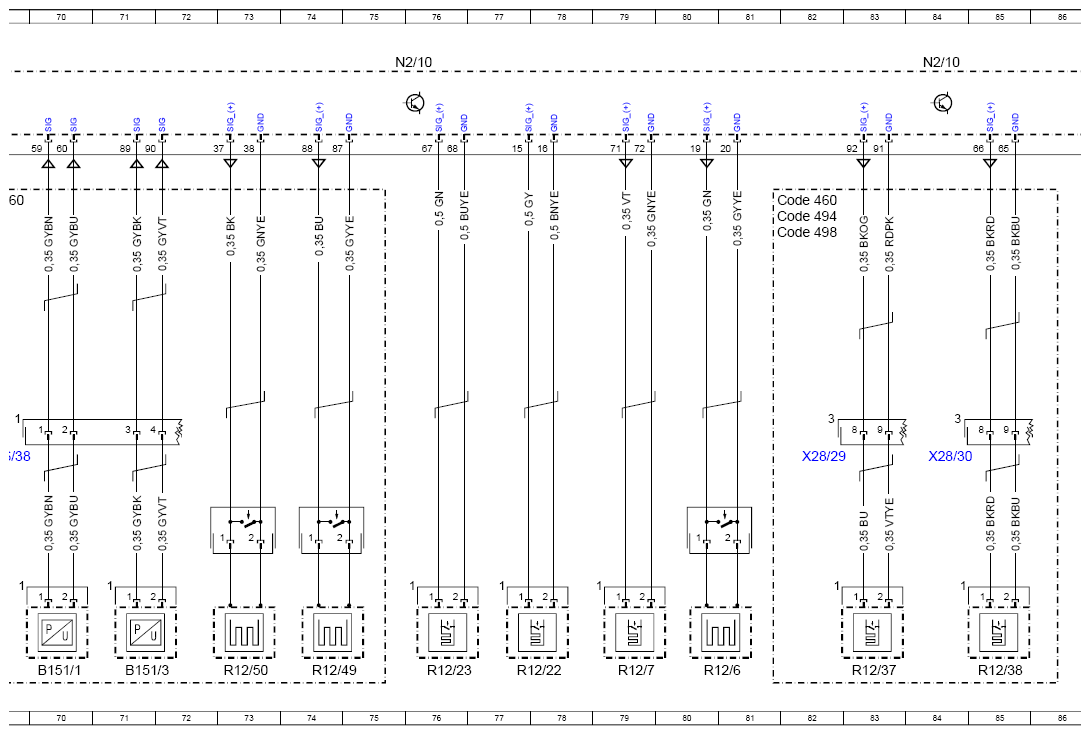

| B151/1 | Left front bumper pedestrian protection sensor | 70L |
| B151/3 | Right front bumper pedestrian protection sensor | 71L |
| B41/1 | Front passenger seat occupied recognition | 56L |
| B48/1 | Left frontal acceleration sensor | 61L |
| B48/10 | Right rear door pressure sensor | 135L |
| B48/2 | Right frontal acceleration sensor | 63L |
| B48/7 | Left front door pressure sensor | 65L |
| B48/8 | Right front door pressure sensor | 67L |
| B48/9 | Left rear door pressure sensor | 133L |
| CAN H | Vehicle dynamics CAN | 19K |
| CAN HMI | User interface CAN | 22K |
| Code 241 | All-electric front passenger seat with memory (left) | 89J |
| Code 242 | All-electric front passenger seat with memory (right) | 89H |
| Code 275 | Memory package | 89J |
| Code 275 | Memory package | 89H |
| Code 293 | Left and right rear sidebag | 128C |
| Code 294 | Kneebag | 162C |
| Code 299 | PRE-SAFE® | 98D |
| Code 299 | PRE-SAFE® | 96D |
| Code 299 | PRE-SAFE® | 101D |
| Code 299 | PRE-SAFE® | 112D |
| Code 299 | PRE-SAFE® | 108D |
| Code 2U8 | Alternative | refrigerant |
| Code 362 | HERMES LTE | 32A |
| Code 362 | HERMES LTE | 40D |
| Code 362 | HERMES LTE | 43D |
| Code 460 | Canada version | 81C |
| Code 460 | Canada version | 101D |
| Code 460 | Canada version | 117D |
| Code 460 | Canada version | 115D |
| Code 460 | Canada version | 126D |
| Code 460 | Canada version | 165C |
| Code 494 | USA version | 81D |
| Code 494 | USA version | 101D |
| Code 494 | USA version | 115D |
| Code 494 | USA version | 117D |
| Code 494 | USA version | 126D |
| Code 494 | USA version | 165D |
| Code 498 | Japan version | 81D |
| Code 9O1 | Fuel cell retrofitting | 7D |
| Code 9O1 | Fuel cell retrofitting | 12D |
| Code 9O1 | Fuel cell retrofitting | 24D |
| Code B01 | 48V technology | 28D |
| Code FV | LONG SEDAN | 95D |
| Code FV | LONG SEDAN | 112D |
| Code L | LEFT-HAND DRIVE | 89G |
| Code L | LEFT-HAND DRIVE | 64C |
| Code M177 | SPARK-IGNITION ENGINE M177 | 136K |
| Code M177 | SPARK-IGNITION ENGINE M177 | 141J |
| Code M264 | SPARK-IGNITION ENGINE M264 | 141J |
| Code M274 | SPARK-IGNITION ENGINE M274 | 141J |
| Code M276 | SPARK-IGNITION ENGINE M276 | 141K |
| Code M654 | DIESEL ENGINE OM654 | 141K |
| Code M654 | DIESEL ENGINE OM654 | 136K |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE OM656 | 141K |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 136J |
| Code R | RIGHT-HAND DRIVE | 89H |
| Code R | RIGHT-HAND DRIVE | 64D |
| Code U10 | SBE - Seat occupancy recognition | 32A |
| Code U10 | SBE - Seat occupancy recognition | 38A |
| Code U10 | SBE - Seat occupancy recognition | 55A |
| Code U60 | Pedestrian protection | 68C |

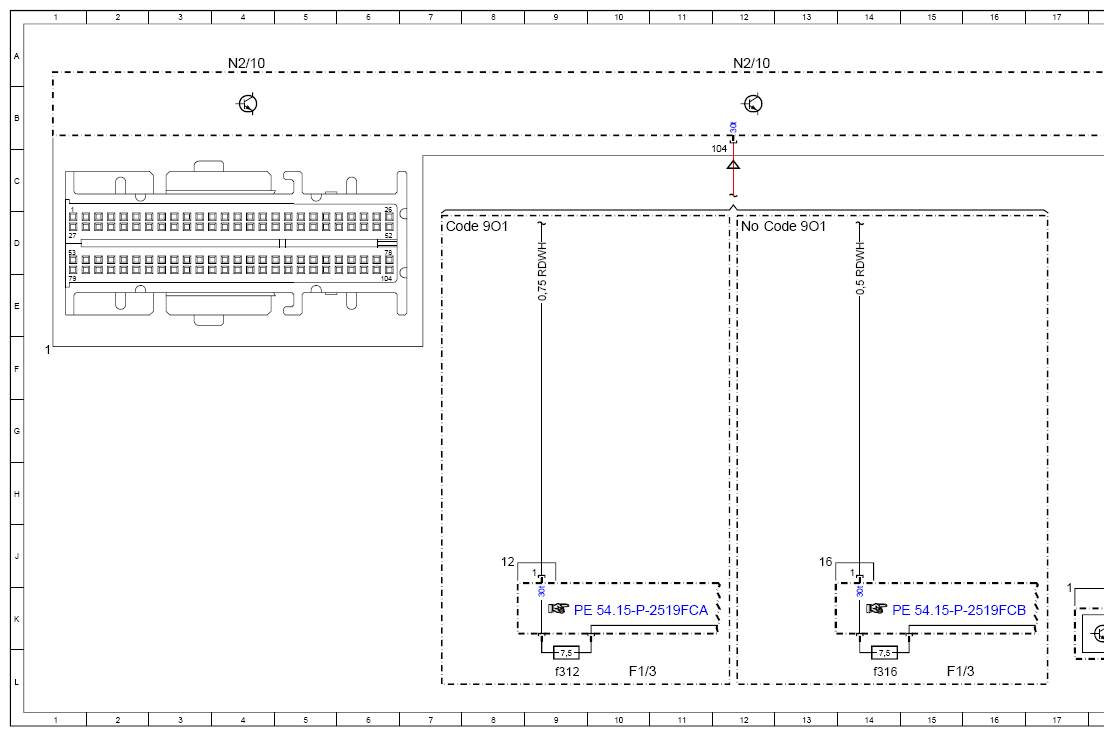

| F1/3 | Passenger-side A-pillar fuse box | 15L |
| F1/3 | Passenger-side A-pillar fuse box | 10L |
| F1/3f312 | Fuse 312 | 9L |
| F1/3f316 | Fuse 316 | 14L |
| F108 | Battery clamp fuse | 138L |
| F63 | Pyrofuse | 30L |
| LIN E2 | Seat occupied recognition LIN | 35K |
| LIN E2 | Seat occupied recognition LIN | 41K |
| LIN E2 | Seat occupied recognition LIN | 47K |
| N10/6 | Front SAM control unit | 53L |

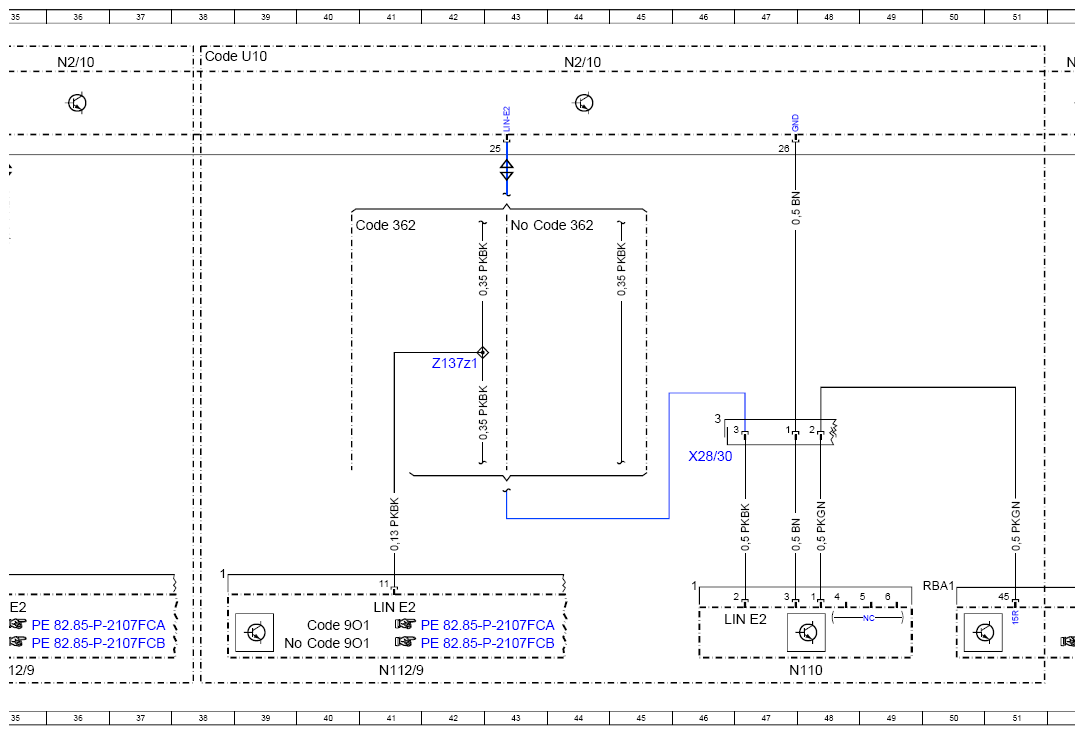

| N110 | Weight Sensing System (WSS) control unit | 48L |
| N112/9 | HERMES control unit | 35L |
| N112/9 | HERMES control unit | 41L |
| N116/5 | Fuel cell management system control unit | 26L |
| N2/10 | Supplemental restraint system control unit | 4A |
| N2/10 | Supplemental restraint system control unit | 12A |
| N2/10 | Supplemental restraint system control unit | 20A |
| N2/10 | Supplemental restraint system control unit | 29A |
| N2/10 | Supplemental restraint system control unit | 36A |
| N2/10 | Supplemental restraint system control unit | 52A |
| N2/10 | Supplemental restraint system control unit | 44A |
| N2/10 | Supplemental restraint system control unit | 60A |
| N2/10 | Supplemental restraint system control unit | 68A |
| N2/10 | Supplemental restraint system control unit | 75A |
| N2/10 | Supplemental restraint system control unit | 84A |
| N2/10 | Supplemental restraint system control unit | 92A |
| N2/10 | Supplemental restraint system control unit | 100A |
| N2/10 | Supplemental restraint system control unit | 108A |
| N2/10 | Supplemental restraint system control unit | 116A |
| N2/10 | Supplemental restraint system control unit | 124A |
| N2/10 | Supplemental restraint system control unit | 132A |
| N2/10 | Supplemental restraint system control unit | 140A |
| N2/10 | Supplemental restraint system control unit | 148A |
| N2/10 | Supplemental restraint system control unit | 156A |

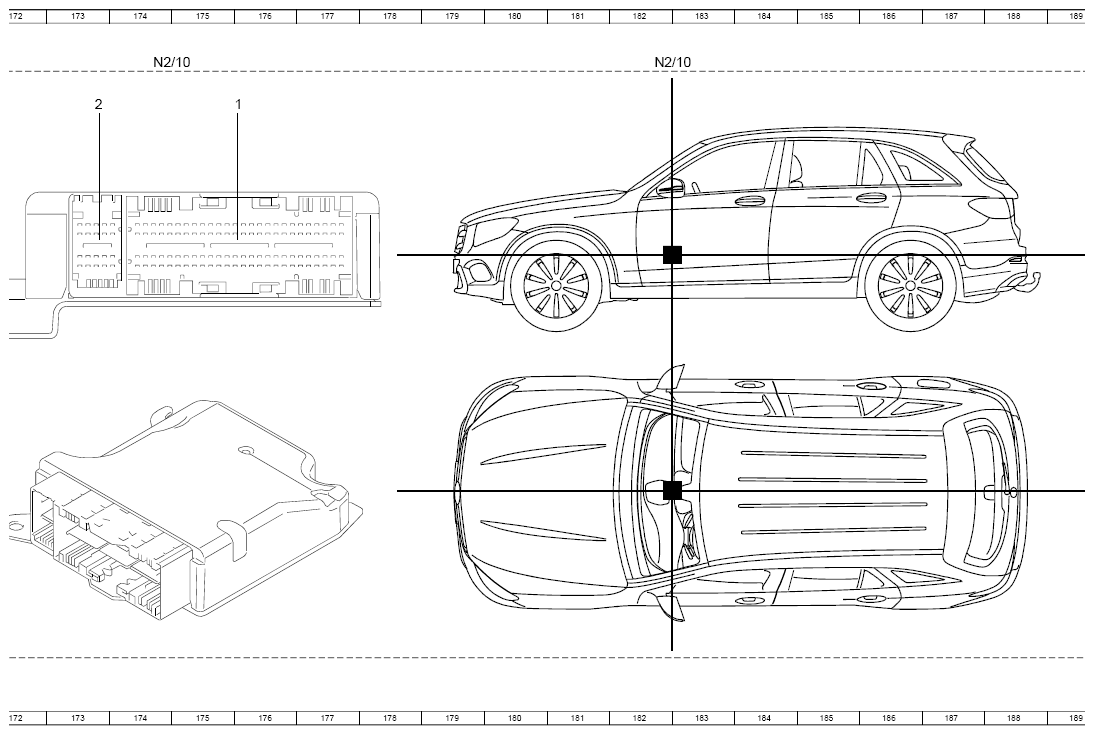

| N2/10 | Supplemental restraint system control unit | 174A |
| N2/10 | Supplemental restraint system control unit | 164A |
| N2/10 | Supplemental restraint system control unit | 182A |
| N2/10 | Supplemental restraint system control unit | - |
| N3/10 | ME-SFI [ME] control unit | 143L |
| N3/9 | CDI control unit | 143L |
| N30/4 | Electronic Stability Program control unit | 19L |
| N80 | Steering column module control unit | 156L |
| R12/1 | Driver ETR [GUS] squib | 99L |
| R12/10 | Front passenger sidebag squib | 94L |
| R12/11 | Left rear sidebag squib | 130L |
| R12/12 | Right rear sidebag squib | 131L |
| R12/13 | Driver airbag squib 1 | 161L |
| R12/14 | Driver airbag squib 2 | 160L |
| R12/2 | Front passenger ETR [GUS] squib | 106L |
| R12/22 | Left windowbag squib | 77L |
| R12/23 | Right windowbag squib | 76L |
| R12/25 | Driver kneebag squib | 164L |

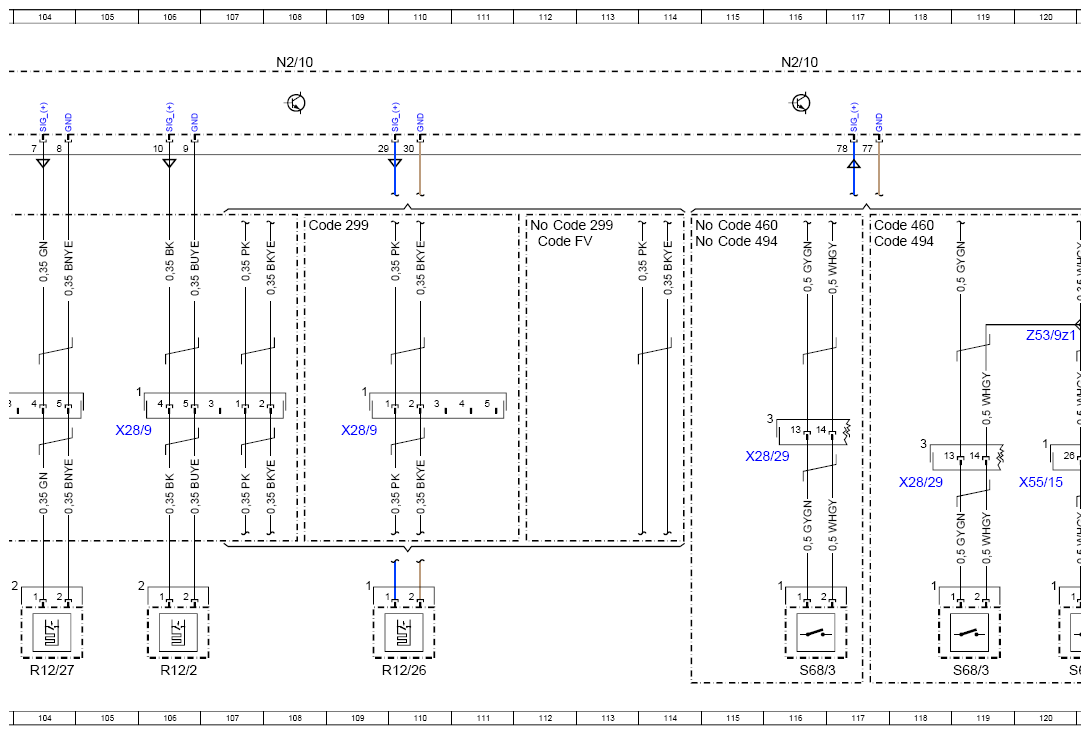

| R12/26 | Front passenger belt force limiter | 110L |
| R12/27 | Driver belt force limiter | 104L |
| R12/37 | Driver-side anchor fitting tensioner squib | 83L |
| R12/38 | Front passenger anchor fitting tensioner squib | 85L |
| R12/4 | Front passenger airbag squib 1 | 169L |
| R12/44 | Front passenger airbag bleed valve squib | 166L |
| R12/49 | Left active engine hood squib | 74L |
| R12/5 | Front passenger airbag squib 2 | 168L |
| R12/50 | Right active engine hood squib | 73L |
| R12/6 | Left rear emergency tensioning retractor squib | 80L |
| R12/69 | Refrigerant inerting squib | - |
| R12/7 | Right rear emergency tensioning retractor squib | 79L |

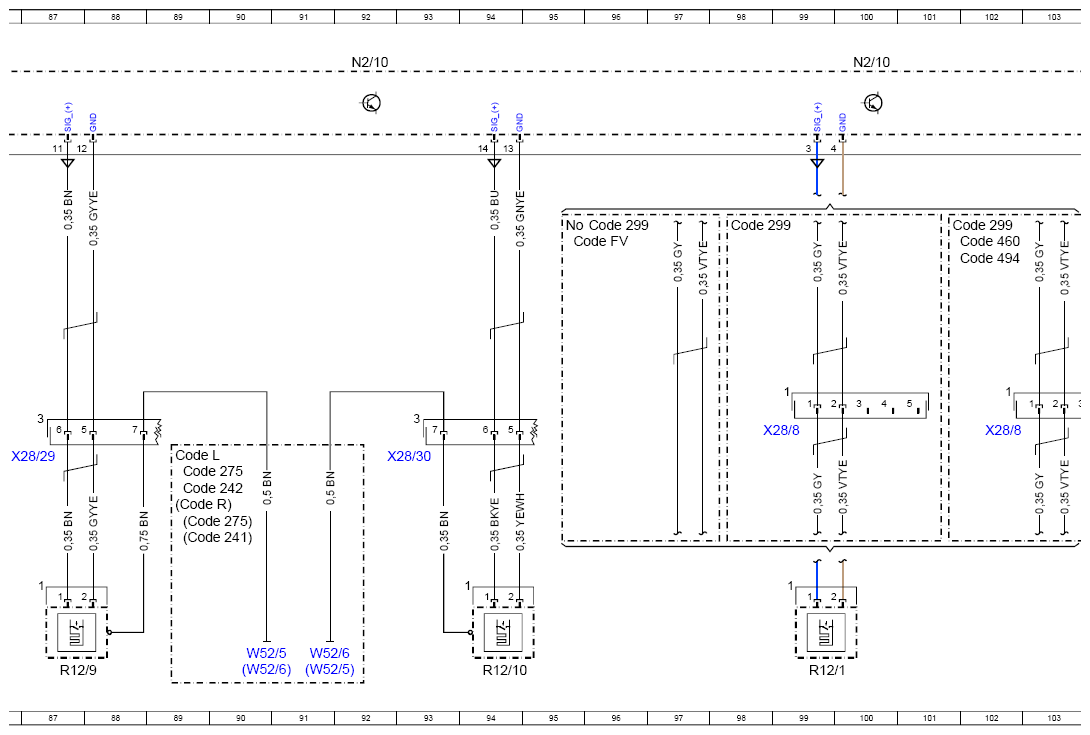

| R12/9 | Driver sidebag squib | 87L |
| S68/19 | Driver seat position detection switch | 121L |
| S68/20 | Front passenger seat position detection switch | 123L |
| S68/3 | Driver seat belt buckle switch | 119L |
| S68/3 | Driver seat belt buckle switch | 116L |
| S68/4 | Front passenger seat belt buckle switch | 125L |
| S68/4 | Front passenger seat belt buckle switch | 127L |
| W52/5 | Left center longitudinal member ground point | 91L |
| W52/5 | Left center longitudinal member ground point | 90L |
| W52/6 | Right center longitudinal member ground point | 90L |
| W52/6 | Right center longitudinal member ground point | 91L |
| X26/38 | Front bumper and frame wiring harness electrical connector | 69H |
| X28/29 | Frame floor assembly/driver seat electrical connector | 82H |
| X28/29 | Frame floor assembly/driver seat electrical connector | 87H |
| X28/29 | Frame floor assembly/driver seat electrical connector | 116H |
| X28/29 | Frame floor assembly/driver seat electrical connector | 118H |
| X28/30 | Frame floor assembly/front passenger seat electrical connector | 46H |
| X28/30 | Frame floor assembly/front passenger seat electrical connector | 56H |
| X28/30 | Frame floor assembly/front passenger seat electrical connector | 84H |
| X28/30 | Frame floor assembly/front passenger seat electrical connector | 93H |
| X28/30 | Frame floor assembly/front passenger seat electrical connector | 127H |
| X28/30 | Frame floor assembly/front passenger seat electrical connector | 124H |
| X28/8 | Left emergency tensioning retractor electrical connector | 99G |
| X28/8 | Left emergency tensioning retractor electrical connector | 102G |
| X28/9 | Right emergency tensioning retractor electrical connector | 109G |
| X28/9 | Right emergency tensioning retractor electrical connector | 105G |
| X30/20 | User interface CAN (CAN HMI) potential distributor electrical connector | 22L |
| X35/1 | Driver door electrical connector | 65H |
| X35/1 | Driver door electrical connector | 67H |
| X35/2 | Front passenger door electrical connector | 67H |
| X35/2 | Front passenger door electrical connector | 65H |
| X35/3 | Left rear door electrical connector | 132H |
| X35/4 | Right rear door electrical connector | 134H |
| X55/15 | Driver seat electrical connector | 120H |
| X55/16 | Front passenger seat electrical connector | 122H |
| Z137z1 | Left door LIN connector sleeve | 42F |
| Z53/9z1 | Circuit 31 vehicle interior airbag connector sleeve | 120F |
| Z53/9z2 | Circuit 31 vehicle interior airbag connector sleeve | 124F |
