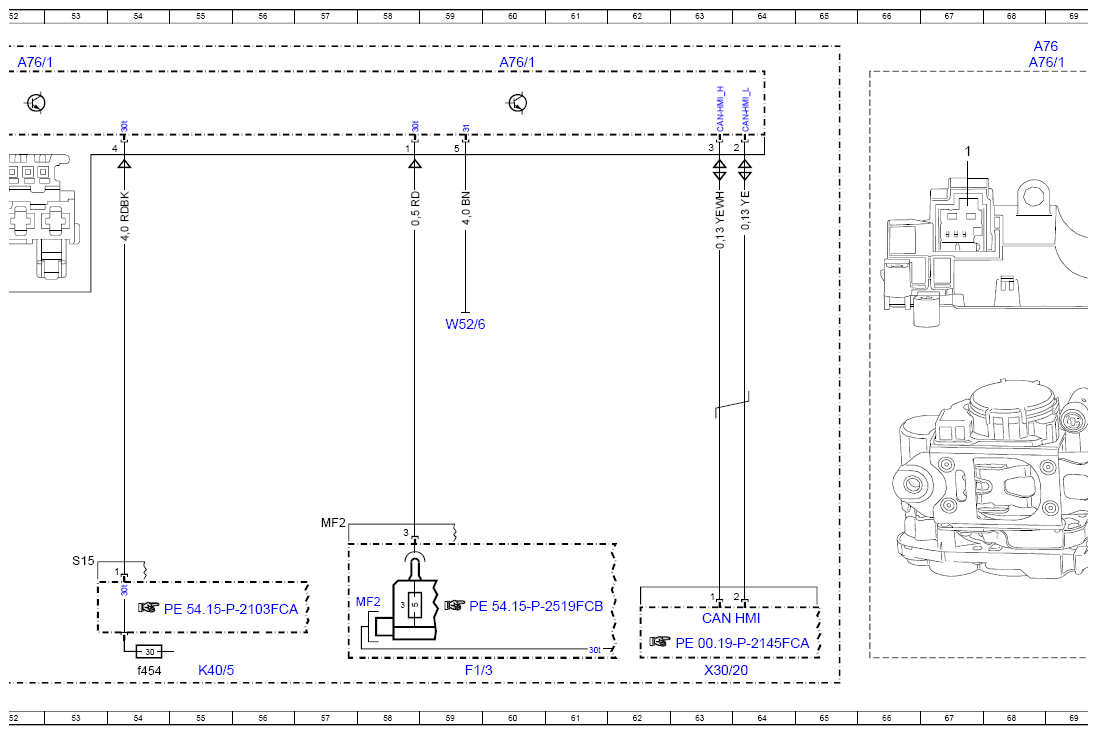

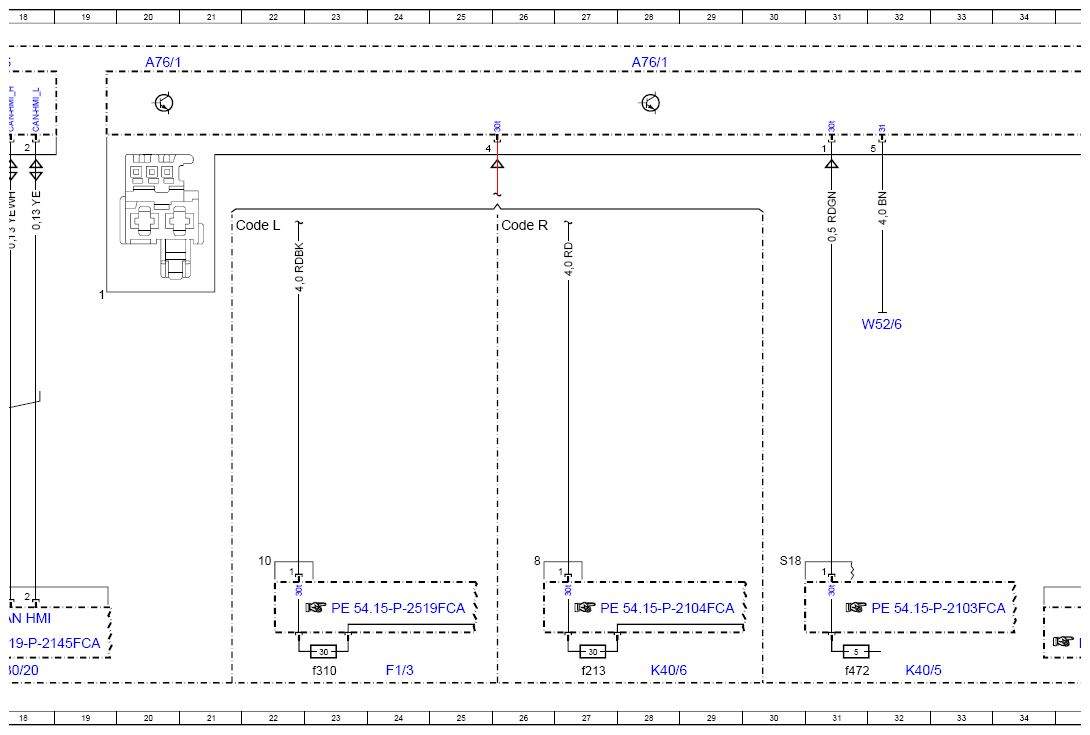

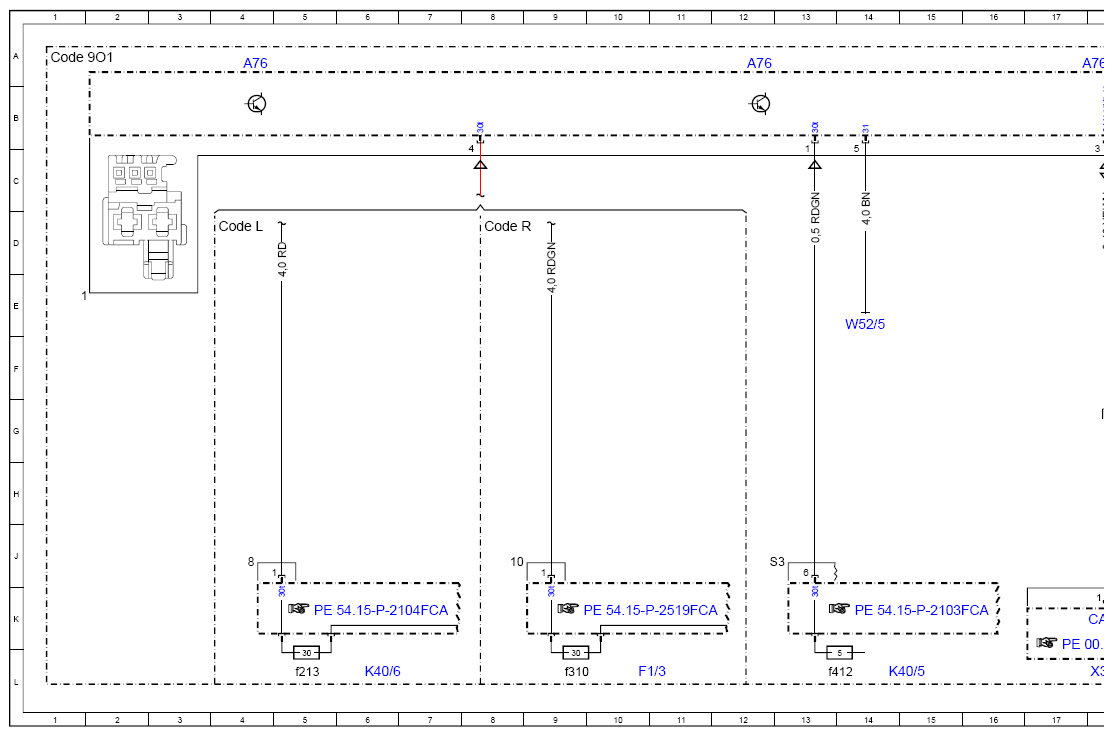

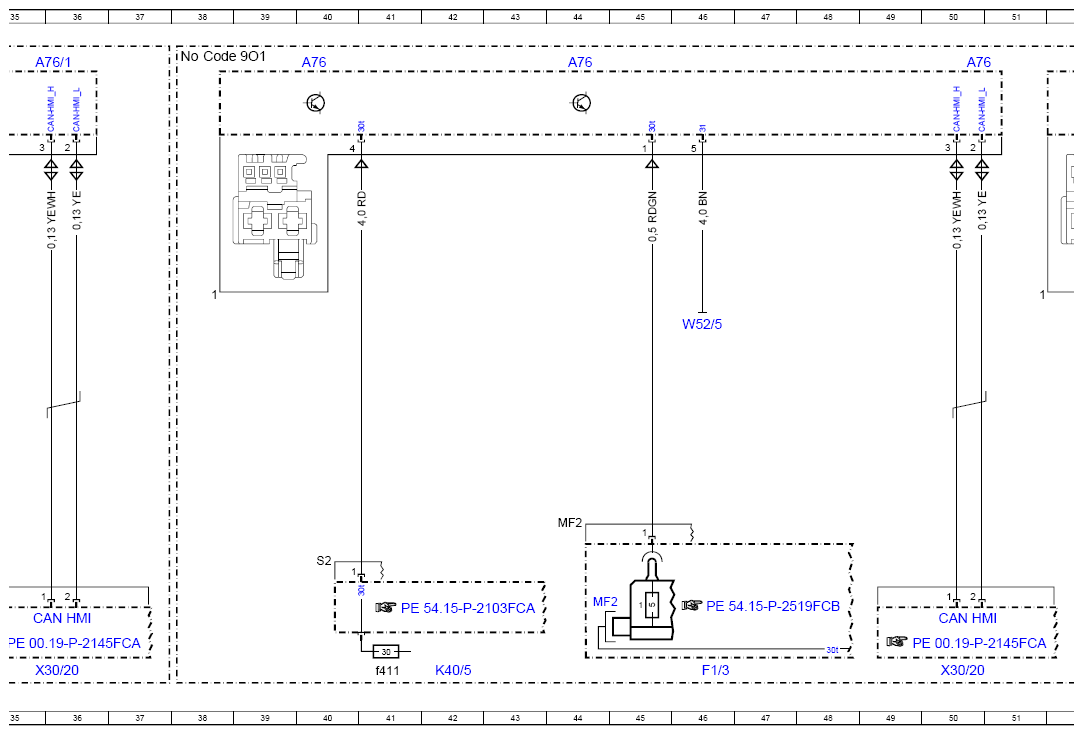

Wiring Diagram For Reversible Emergency Tensioning Retractor - PE91.40-P-2200-97FCA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 253 (except 253.99)
as of model year 2020
with code 299 (PRE-SAFE®)
Control unit A76, A76/1
MODEL 253.99
as of model year 2019
with code 299 (PRE-SAFE®)
with code 9O1 (Fuel cell pre-installation)
Control unit A76, A76/1
| Code: | Designation: | Position: |
|---|---|---|

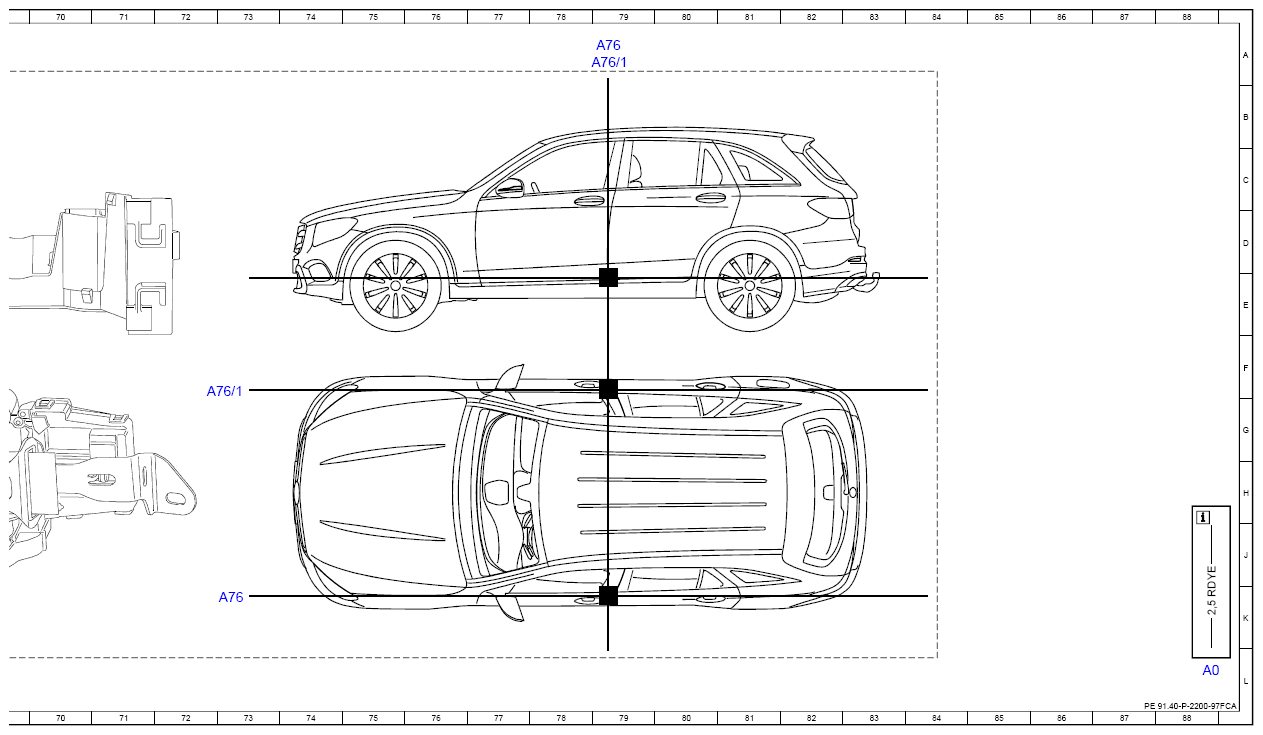

| A0 | Use of wiring diagrams | 88L |
| A76 | Left front reversible emergency tensioning retractor | 4A |
| A76 | Left front reversible emergency tensioning retractor | 12A |
| A76 | Left front reversible emergency tensioning retractor | 18A |
| A76 | Left front reversible emergency tensioning retractor | 40A |
| A76 | Left front reversible emergency tensioning retractor | 44A |
| A76 | Left front reversible emergency tensioning retractor | 73K |
| A76 | Left front reversible emergency tensioning retractor | 50A |
| A76 | Left front reversible emergency tensioning retractor | 68A |
| A76 | Left front reversible emergency tensioning retractor | 79A |
| A76/1 | Right front reversible emergency tensioning retractor | 20A |
| A76/1 | Right front reversible emergency tensioning retractor | 28A |
| A76/1 | Right front reversible emergency tensioning retractor | 35A |
| A76/1 | Right front reversible emergency tensioning retractor | 72F |
| A76/1 | Right front reversible emergency tensioning retractor | 52A |
| A76/1 | Right front reversible emergency tensioning retractor | 60A |
| A76/1 | Right front reversible emergency tensioning retractor | 68A |
| A76/1 | Right front reversible emergency tensioning retractor | 79A |
| CAN | HMI User interface CAN | 18K |
| CAN | HMI User interface CAN | 36K |
| CAN | HMI User interface CAN | 50K |
| CAN | HMI User interface CAN | 63K |
| Code | 9O1 Fuel cell retrofitting | 1A |
| Code | 9O1 Fuel cell retrofitting | 38A |
| Code | L LEFT-HAND DRIVE | 4D |
| Code | L LEFT-HAND DRIVE | 21D |
| Code | R RIGHT-HAND DRIVE | 8D |
| Code | R RIGHT-HAND DRIVE | 26D |
| F1/3 | Passenger-side A-pillar fuse box | 10L |
| F1/3 | Passenger-side A-pillar fuse box | 24L |
| F1/3 | Passenger-side A-pillar fuse box | 46L |
| F1/3 | Passenger-side A-pillar fuse box | 59L |
| F1/3MF2 | Multiple fuse 2 | 44K |
| F1/3MF2 | Multiple fuse 2 | 58K |
| F1/3f310 | Fuse 310 | 9L |
| F1/3f310 | Fuse 310 | 23L |
| K40/5 | Rear fuse and relay module | 14L |
| K40/5 | Rear fuse and relay module | 32L |
| K40/5 | Rear fuse and relay module | 42L |
| K40/5 | Rear fuse and relay module | 55L |
| K40/5f411 | Fuse 411 | 41L |
| K40/5f412 | Fuse 412 | 13L |
| K40/5f454 | Fuse 454 | 54L |
| K40/5f472 | Fuse 472 | 31L |
| K40/6 | Driver-side fuse and relay module | 6L |
| K40/6 | Driver-side fuse and relay module | 28L |
| K40/6f213 | Fuse 213 | 5L |
| K40/6f213 | Fuse 213 | 27L |
| W52/5 | Left center longitudinal member ground point | 14E |
| W52/5 | Left center longitudinal member ground point | 46E |
| W52/6 | Right center longitudinal member ground point | 32E |
| W52/6 | Right center longitudinal member ground point | 59E |
| X30/20 | User interface CAN (CAN HMD potential distributor electrical connector | 18L |
| X30/20 | User interface CAN (CAN HMD potential distributor electrical connector | 36L |
| X30/20 | User interface CAN (CAN HMD potential distributor electrical connector | 50L |
| X30/20 | User interface CAN (CAN HMD potential distributor electrical connector | 63L |
