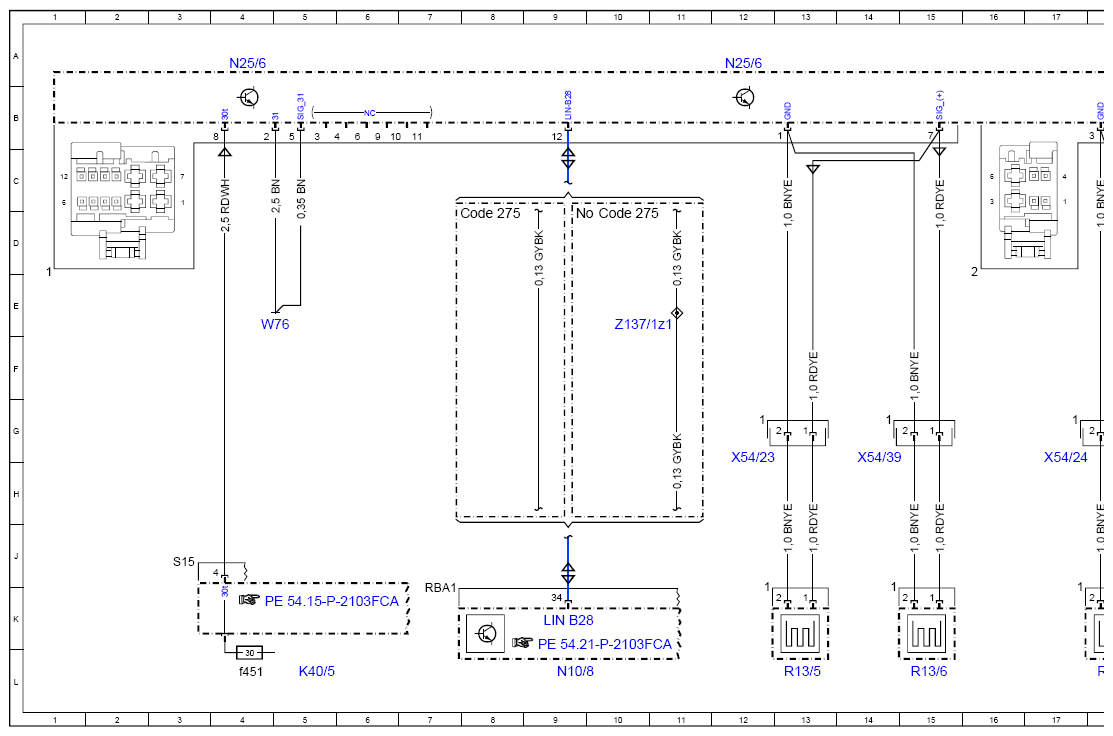

Wiring Diagram For Rear Heated Seats Control Unit - PE91.30-P-2101-97FCA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 253 (except 253.99)
as of model year 2020
with code 872 (Heated rear seats)

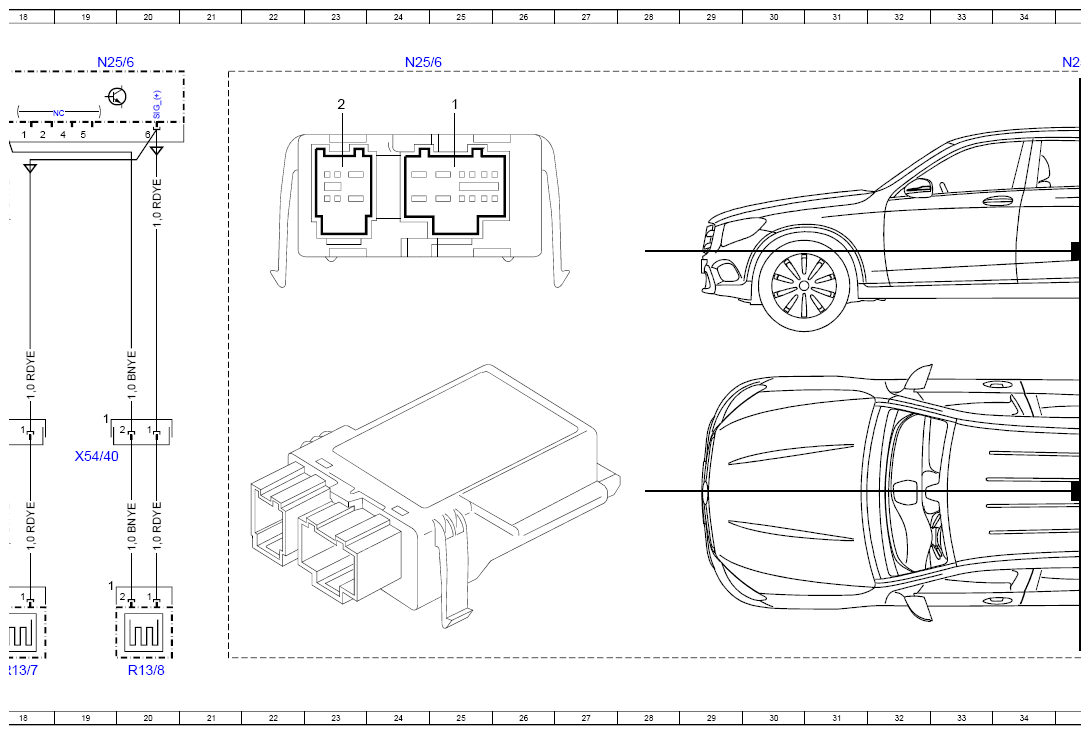

Control unit N25/6
| Code: | Designation: | Position: |
|---|---|---|

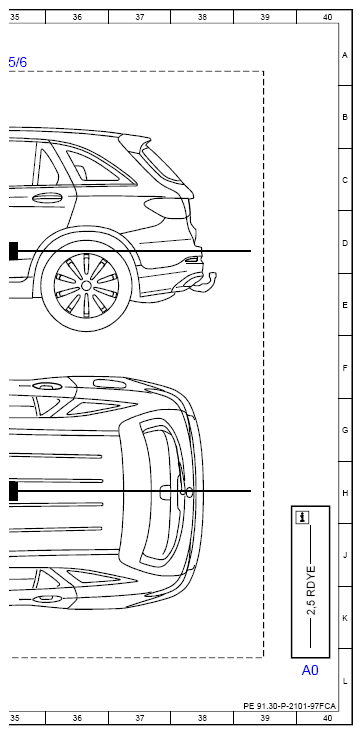

| A0 | Use of wiring diagrams | 40L |
| Code 275 | Memory package | 7D |
| Code 275 | Memory package | 10D |
| K40/5 | Rear fuse and relay module | 5L |
| K40/5f451 | Fuse 451 | 4L |
| LIN | B28 Heater LIN | 9K |
| N10/8 | Rear SAM control unit | 9L |
| N25/6 | Rear seat heaters control unit | 4A |
| N25/6 | Rear seat heaters control unit | 12A |
| N25/6 | Rear seat heaters control unit | 19A |
| N25/6 | Rear seat heaters control unit | 24A |
| N25/6 | Rear seat heaters control unit | 35A |
| R13/5 | Left rear seat sitting surface heated cushion | 13L |
| R13/6 | Left rear backrest heated cushion | 15L |
| R13/7 | Right rear seat sitting surface heated cushion | 18L |
| R13/8 | Right rear backrest heater pad | 20L |
| W76 | Fuel pump ground point | 4E |
| X54/23 | Left rear seat sitting surface heater pad electrical connector | 12H |
| X54/24 | Right rear seat sitting surface heater pad electrical connector | 17H |
| X54/39 | Left rear backrest heater pad electrical connector | 14H |
| X54/40 | Right rear backrest heater pad electrical connector | 19H |
| Z137/1z1 | Connector sleeve, heater LIN | 10E |
