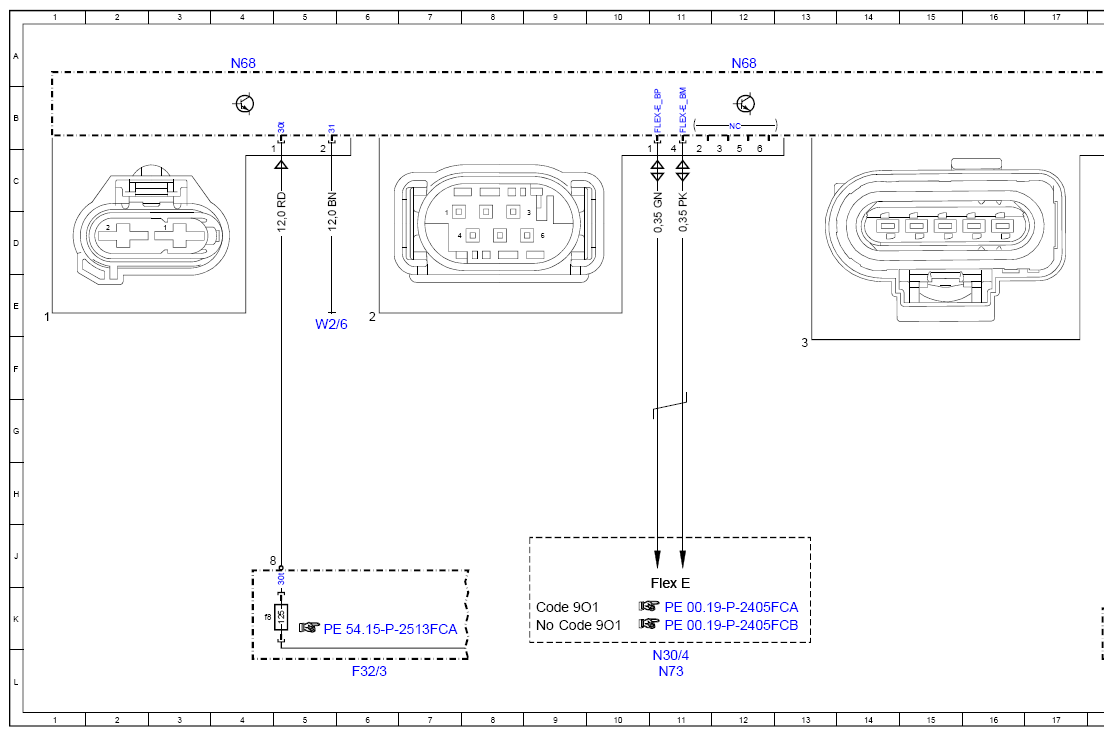

Wiring Diagram For Electric Power Steering Control Unit - PE46.35-P-2101-97FCA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.99) as of model year 2020
Control unit N68
Model 253.99 as of model year 2019
with code 9O1 (Fuel cell pre-installation)
Control unit N68
| Code: | Designation: | Position: |
|---|---|---|

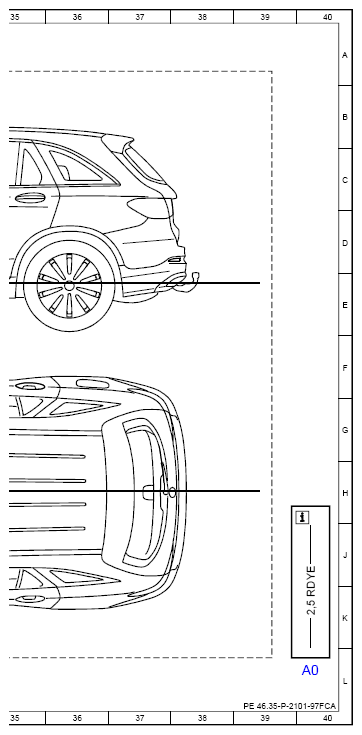

| AO | Use of wiring diagrams | 40L |

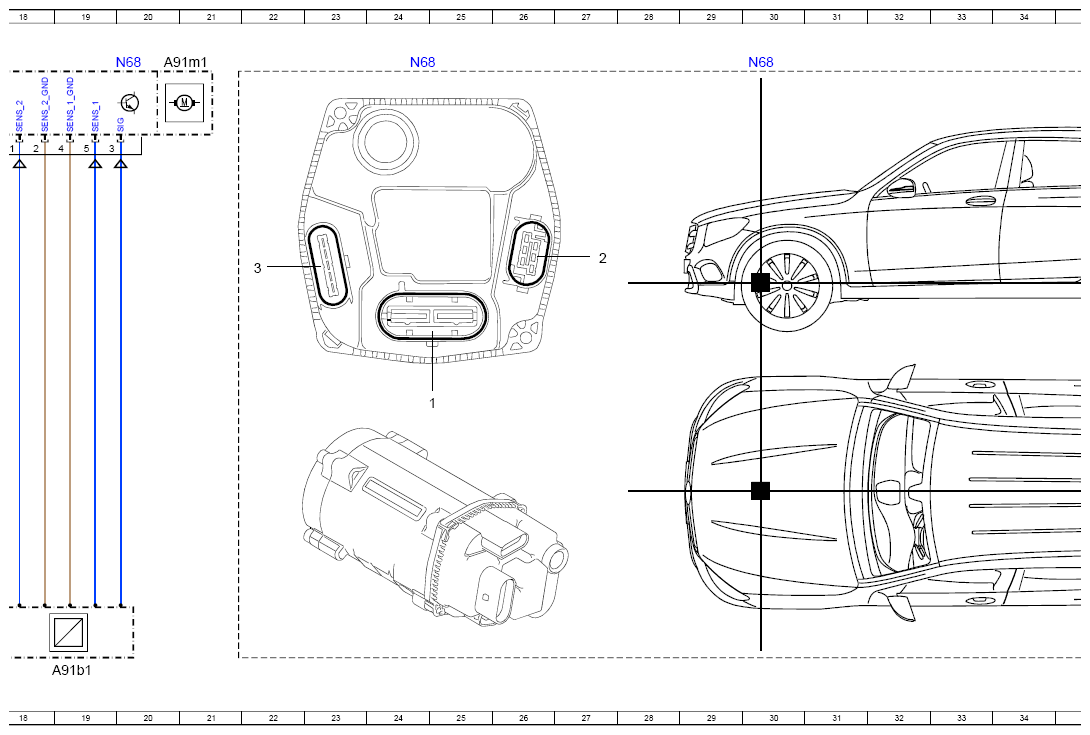

| A91b1 | Electric power steering torque sensor | 19L |
| A91m1 | Electric power steering actuator motor | 20A |
| Code 901 | Fuel cell retrofitting | 9K |
| Code 901 | Fuel cell retrofitting | 9K |
| F32/3 | Engine compartment prefuse box | 6L |
| F32/3f8 | Fuse 8 | 4K |
| Flex E | Chassis FlexRay | 11K |
| N30/4 | Electronic Stability Program control unit | 11L |
| N68 | Electrical power steering control unit | 4A |
| N68 | Electrical power steering control unit | 12A |
| N68 | Electrical power steering control unit | 20A |
| N68 | Electrical power steering control unit | 24A |
| N68 | Electrical power steering control unit | 30A |
| N73 | Electronic ignition switch control unit | 11L |
| W2/6 | Electric power steering ground point | 5E |
