Replacing Steering Shaft Boot - AR46.10-P-0621LW

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 205

Model 213

Model 238

Model 253

Model 293

MODIFICATION NOTES

20.11.2018 Exact positioning and engagement of boot, added. Step 6

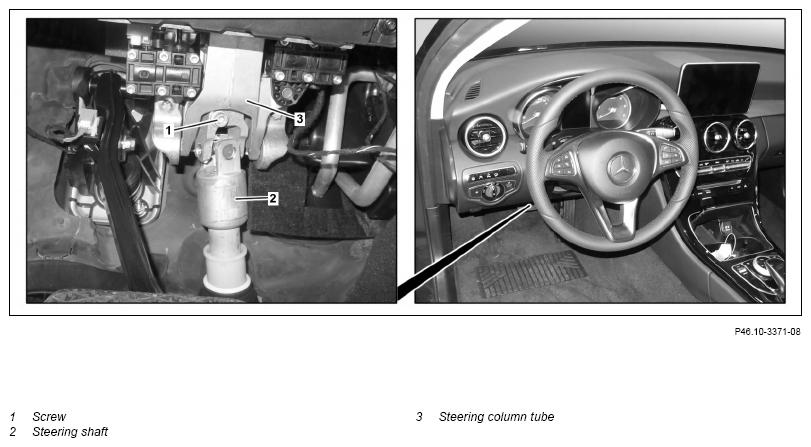

G14547600Courtesy of MERCEDES-BENZ USA

Shown on model 205

Shown on MODEL 205 except CODE 700 (China local content technology)

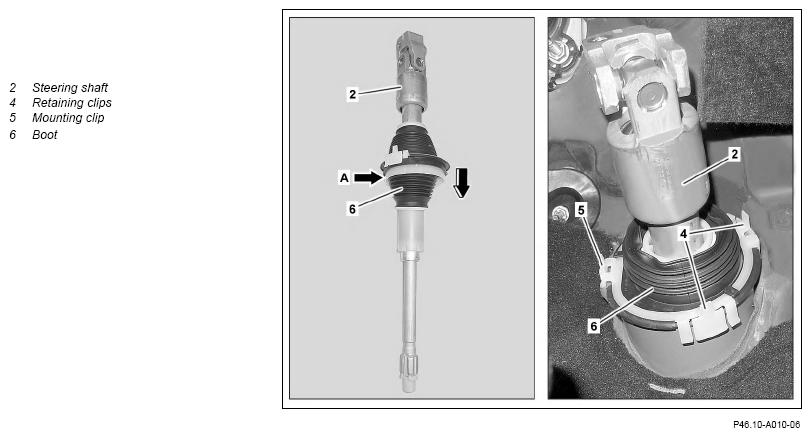

G14547601Courtesy of MERCEDES-BENZ USA

Shown on model 205

Fig 1: Steering Shaft Boot Components Location - Model 253 (Shown On Model 205)

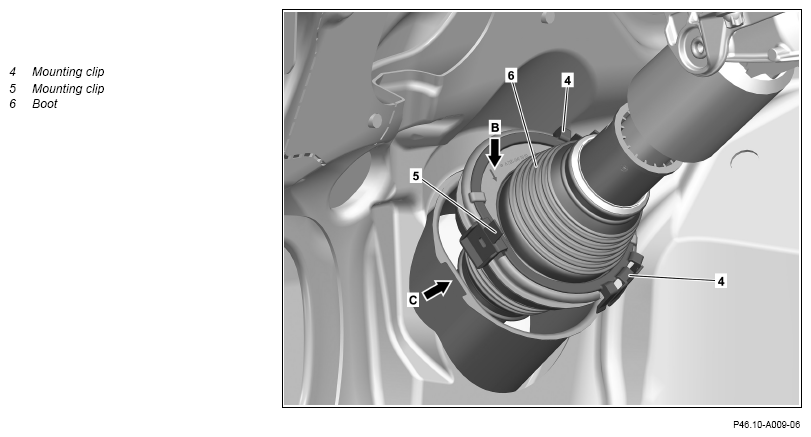

G14547602Courtesy of MERCEDES-BENZ USA
Notice Notes on self-locking nuts and bolts   AH00.00-P-0001-01KOA
REMOVINGINSTALLING Remove/install
1 Adjust steering wheel all the way forward and up.
2 Deactivate easy entry and exit feature for steering wheel. Model 205, 253, 293 with code 275 (Driver's seat, electrically adjustable with memory function)
Model 213, 238
with code 275 (Memory Package (driver's seat, steering column and mirror))

3 Remove cover below instrument panel on driver's side. Model 293 AR68.10-P-1501EQ
    Model 213, 238 AR68.10-P-1501LWE
    Model 205, 253 AR68.10-P-1500LW
4 Separate steering coupling from steering shaft (2). Model 238 AR46.10-P-8000LWO
    Model 205, 213, 253, 293 AR46.10-P-8000LW
5 Remove screw (1) and detach steering shaft (2) from steering column tube (3). INSTALLATION IMPORTANT Replace bolt (1).
    TORQUE SPECIFICATION Self-locking bolt, lower steering shaft to upper steering shaft *BA46.10-P-1001-01N
6 Unclip retaining clip (4, 5) and remove steering shaft (2) with boot (6) upwards. INSTALLATION NOTES
Make sure that the retaining clip (4, 5) are correctly engaged.
Otherwise, driver assistance systems may malfunction.
INSTALLATION NOTES The arrow (arrow B) must point towards the vehicle floor.
The retaining clip (5) must be positioned above the cutout (arrow C) and be clipped in.

7 Remove boot (6) from steering shaft (2) in direction of arrow. INSTALLATION NOTES
Model 205.### 2#, 213.### 2#, 238.### 2#, 253.### 2#, 293.### 2#
Mount seal all way round in area (arrow A).
Otherwise, engine noise may be heard in the vehicle interior.
IMPORTANT Pay attention to installation position.

    Sealing profile for maintenance access cover *BR00.45-Z-1051-01A
8 Install in the reverse order.
STEERING SHAFT

Number Designation Model 205 Model 213
BA46.10-P-1001-01N Self-locking bolt, lower steering shaft to upper steering shaft Nm 23 23
STEERING SHAFT

Number Designation Model 238 Model 253
BA46.10-P-1001-01N Self-locking bolt, lower steering shaft to upper steering shaft Nm 23 23
STEERING SHAFT

Number Designation Model 293
BA46.10-P-1001-01N Self-locking bolt, lower steering shaft to upper steering shaft Nm 23
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1051-01A Sealing profile for maintenance access cover A 001 987 70 46
