Remove/Install Track Rod - AR46.40-P-0200LW
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205
Model 213
Model 238
Model 253
Model 293
Shown on model 205
| Remove/install | |||
| 1 | Remove front wheel. | AR40.10-P-1102A | |

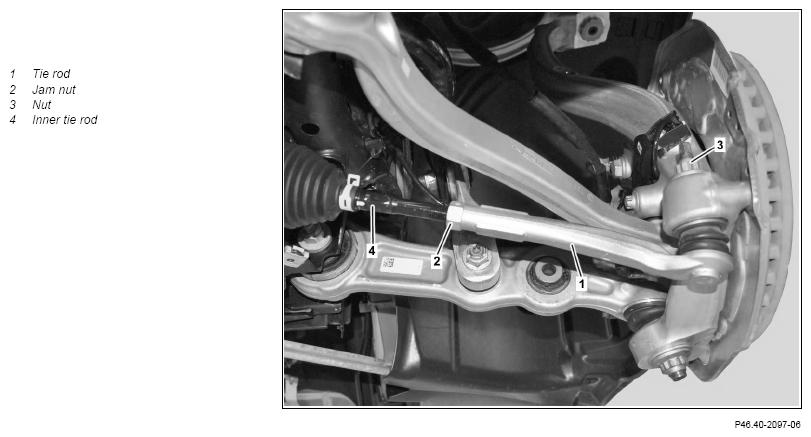

| 2 | Counterhold tie rod (1) and loosen counternut (2). | It is essential to counterhold the tie rod (1). The tie rod (1) will otherwise be damaged. |
|
| *BA46.40-P-1002-01P | |||
| 3 | Unscrew nut (3) and remove tie rod (1) from steering knuckle. | ||
| Notice | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| Notice | Notes on self-locking nuts and bolts | The ball head must be counterheld and an impact wrench/driver must not be used. Otherwise the ball head or steering knuckle may be damaged. |
AH00.00-P-0001-01KOA |
| *BA46.40-P-1001-01P | |||
| 4 | Unscrew tie rod (1) from inner tie rod (4). | ||
| 5 | Install in the reverse order. | ||
| 6 | Perform chassis alignment. | Model 238 | AR40.20-P-0200LWO |
| Model 205 Model 213 Model 253 Model 293 |
AR40.20-P-0200LW |
TIE ROD
| Number | Designation | Model 205 | Model 213 | ||
|---|---|---|---|---|---|
| BA46.40-P-1001-01P | Self-locking nut, tie rod to steering knuckle | Stage 1 | Nm | 90 | 90 |
| Stage 2 | ∠° | 60 | 60 | ||
TIE ROD
| Number | Designation | Model 238 | Model 253 | ||
|---|---|---|---|---|---|
| BA46.40-P-1001-01P | Self-locking nut, tie rod to steering knuckle | Stage 1 | Nm | 90 | 90 |
| Stage 2 | ∠° | 60 | 60 | ||
TIE ROD
| Number | Designation | Model 293 | ||
|---|---|---|---|---|
| BA46.40-P-1001-01P | Self-locking nut, tie rod to steering knuckle | Stage 1 | Nm | 90 |
| Stage 2 | ∠° | 60 | ||
TIE ROD
| Number | Designation | Model 205 | Model 213 | |
|---|---|---|---|---|
| BA46.40-P-1002-01P | Jam nut, tie rod to inner tie rod | Nm | 65 | 65 |
TIE ROD
| Number | Designation | Model 238 | Model 253 | |
|---|---|---|---|---|
| BA46.40-P-1002-01P | Jam nut, tie rod to inner tie rod | Nm | 65 | 65 |
TIE ROD
| Number | Designation | Model 293 | |
|---|---|---|---|
| BA46.40-P-1002-01P | Jam nut, tie rod to inner tie rod | Nm | 65 |
