Remove/Install Inner Tie Rod With Axial Joint - AR46.40-P-0201LW

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 205

Model 213

Model 238

Model 253

Model 293

Shown on model 205

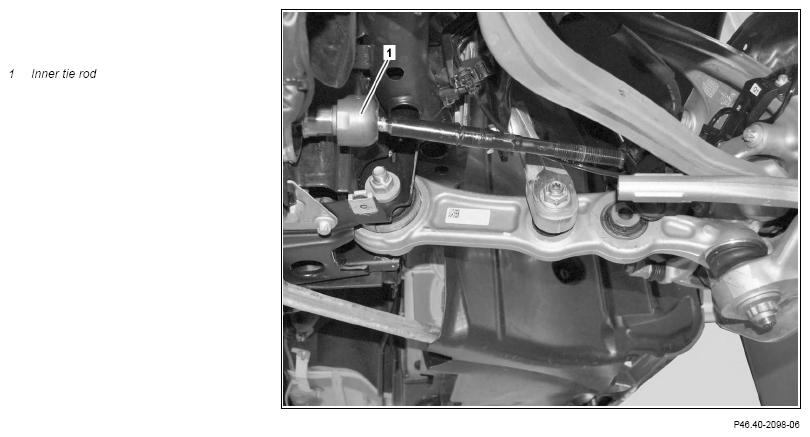

Fig 1: Inner Tie Rod With Axial Joint Components Location - Model 253 (Shown On Model 205.0)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove bellows		AR46.40-P-9998LW
2	Unscrew inner tie rod (1)	Inner tie rod to rack-and-pinion steering	*BA46.40-P-1003-01P
		Open end wrench	Fig 2
3	Install in the reverse order

TIE ROD

Number	Designation		Model 205	Model 213
BA46.40-P-1003-01P	Inner tie rod to rack-and-pinion steering	Nm	110	105

TIE ROD

Number	Designation		Model 238	Model 253
BA46.40-P-1003-01P	Inner tie rod to rack-and-pinion steering	Nm	105	105

TIE ROD

Number	Designation		Model 293
BA46.40-P-1003-01P	Inner tie rod to rack-and-pinion steering	Nm	105

Fig 2: Identifying Open End Wrench (201 589 00 01 00)

Courtesy of MERCEDES-BENZ USA
