Remove/Install Electronic Ignition/Starter Switch (EZS) - AR46.10-P-0810LW

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 205

up to model year 2019

Model 253 (except 253.992/993)

up to model year 2020

Shown on MODEL 205 with CODE 275 (Electrically adjustable driver's seat with memory function)

Fig 1: Electronic Ignition/Starter Switch Components Location - Model 253 Up To Model Year 2020 (Shown On Model 205)

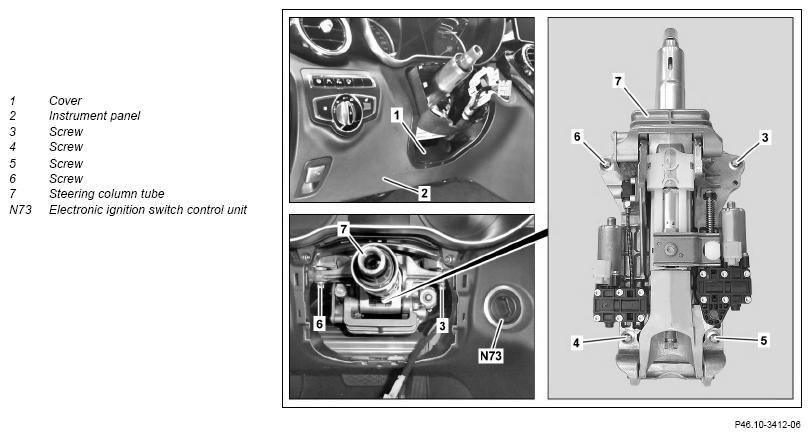

G14185917Courtesy of MERCEDES-BENZ USA

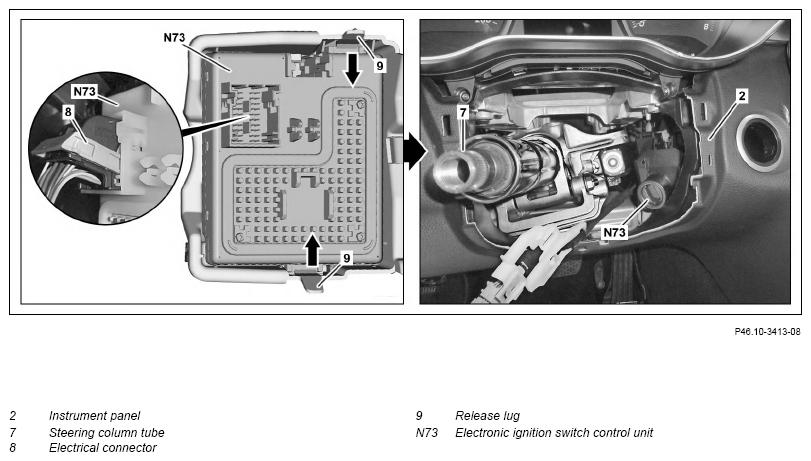

G14185918Courtesy of MERCEDES-BENZ USA

Shown on MODEL 205 with CODE 275 (Electrically adjustable driver's seat with memory function)

Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
REMOVINGINSTALLING Remove/install
1 Carry out commissioning of electronic ignition lock control unit (N73). When replacing the electronic ignition lock control unit (N73).
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04B
2 Switch off ignition and store transmitter key outside of transmission range (min. 2 m).
3 Remove steering column module.   AR54.25-P-2802LW
4 Unclip trim (1) from instrument panel (2). SPECIAL TOOL Long wedge Fig 2
5 Remove bolts (3, 4, 5, 6) and push steering column tube (7) all the way to the left.
Notes on threaded connections fastened using a tightening angle-based tightening process   AH00.00-P-0020-01A
Notes on threaded connections with aluminum screws/bolts INSTALLATION IMPORTANT Replace bolts (3, 4, 5, 6). Position bolts (3, 4, 5, 6) lightly by hand and then tighten them in the given sequence. AH00.00-P-0006-01RM
    TORQUE SPECIFICATION Bolt, steering column tube to crossmember under instrument panel *BA46.10-P-1001-03S
6 Disconnect electrical connector (8).
7 Press release tabs (9) together in direction of arrow and push out electronic ignition lock control unit (N73) towards the engine compartment.
8 Remove electronic ignition lock control unit (N73) between the steering column tube (7) and the instrument panel (2).
9 Install in the reverse order.
JACKET TUBE

Number Designation Model 205 Model 253
BA46.10-P-1001-03S Bolt, steering column tube to crossmember under instrument panel Stage 1 Nm 12 12
Stage 2 ∠° 90 90
Fig 2: Identifying Long Wedge (115 589 03 59 00)
G11129259Courtesy of MERCEDES-BENZ USA
