Remove/Install Contact Plate In Steering Wheel - AR46.10-P-0020GQA

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 117, 166, 172, 204, 205, 207, 212, 213, 217, 218, 222, 231, 238, 242, 246, 253, 257, 292

Model 463

as of model year 2019

MODIFICATION NOTES

08.02.2022 Screw, mounting plate/contact plate to steering wheel Model 213 BA46.10-P-1002-02J
08.02.2022 Screw, mounting plate/contact plate to steering wheel Model 238 BA46.10-P-1002-02J
08.02.2022 Screw, mounting plate/contact plate to steering wheel Model 257 BA46.10-P-1002-02J

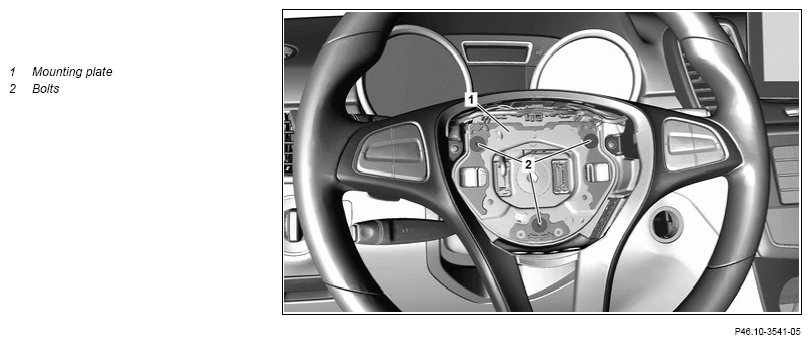

Shown on MODEL 292

G14547593Courtesy of MERCEDES-BENZ USA

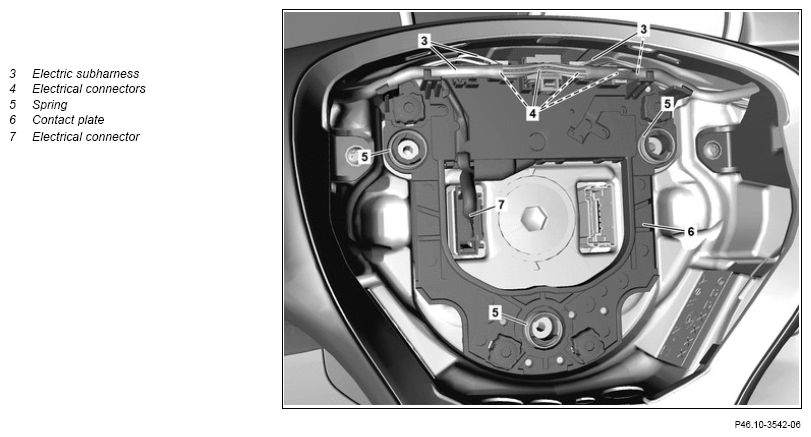

Shown on MODEL 292

Fig 1: Contact Plate In Steering Wheel Components Location - Model 253 (Shown On Model 292)
G14547594REMOVINGINSTALLINGTORQUE SPECIFICATIONTORQUE SPECIFICATIONTORQUE SPECIFICATIONTORQUE SPECIFICATIONTORQUE SPECIFICATIONIMPORTANTIMPORTANTCourtesy of MERCEDES-BENZ USA
Notice Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
  Notes on safety-relevant components   AH00.00-Z-0019-01A
REMOVINGINSTALLING Remove/install
1 Remove airbag from steering wheel. Model 257 AR91.60-P-0660FR
    Model 204.0/2 up to model year 2012/AEJ11 Model 204.9
up to model year 2013/AEJ12		 AR91.60-P-0660CW
    Model 205, 213, 238, 253 AR91.60-P-0660LW
    Model 217, 222 AR91.60-P-0660LF
    Model 207, 212
up to model year 2012		 AR91.60-P-0660EW
    Model 117, 172, 204.3, 218, 231, 242, 246
Model 204.0/2, 207, 212 as of model year 2012
Model 204.9
as of model year 2013		 AR91.60-P-0660EL
    Model 166, 292 AR91.60-P-0660GQ
    Model 463
as of model year 2019		 AR91.60-P-0663XG
2 Remove bolts (2). TORQUE SPECIFICATION Model 117, 242, 246Screw, mounting plate/contact plate to steering wheel *BA46.10-P-1002-02F
    TORQUE SPECIFICATION Model 172, 231Screw, mounting plate/contact plate to steering wheel *BA46.10-P-1006-02A
    TORQUE SPECIFICATION Model 204, 205, 207, 212, 213, 217, 218, 222, 238, 253, 257Screw, mounting plate/contact plate to steering wheel *BA46.10-P-1002-02J
    TORQUE SPECIFICATION Model 166, 292Screw, mounting plate/contact plate to steering wheel *BA46.10-P-1003-02G
    TORQUE SPECIFICATION Model 463
as of model year 2019Screw, mounting plate/contact plate to steering wheel		 *BA46.10-P-1006-02A
3 Detach electrical connector from mounting plate (1). If installed.
4 Remove mounting plate (1). IMPORTANT Note the springs below (5).
5 Remove springs (5).
6 Release and disconnect electrical connectors (4, 7). IMPORTANT The number can vary according to the equipment.
7 Guide contact plate (6) past electrical subharnesses (3) then remove.
8 Install in reverse order.
STEERING WHEEL

Number Designation Model 117, 118 Model 242
BA46.10-P-1002-02F Screw, mounting plate/contact plate to steering wheel Nm 7 7
STEERING WHEEL

Number Designation Model 176, 246
BA46.10-P-1002-02F Screw, mounting plate/contact plate to steering wheel Nm 7
STEERING WHEEL

Number Designation Model 204 Model 205
BA46.10-P-1002-02J Screw, mounting plate/contact plate to steering wheel Nm 7 7
STEERING WHEEL

Number Designation Model 207 Model 212
BA46.10-P-1002-02J Screw, mounting plate/contact plate to steering wheel Nm 7 7
STEERING WHEEL

Number Designation Model 213 Model 217
BA46.10-P-1002-02J Screw, mounting plate/contact plate to steering wheel Nm 8 7
STEERING WHEEL

Number Designation Model 218 Model 222
BA46.10-P-1002-02J Screw, mounting plate/contact plate to steering wheel Nm 7 7
STEERING WHEEL

Number Designation Model 238 Model 253
BA46.10-P-1002-02J Screw, mounting plate/contact plate to steering wheel Nm 8 7
STEERING WHEEL

Number Designation Model 257
BA46.10-P-1002-02J Screw, mounting plate/contact plate to steering wheel Nm 8
STEERING WHEEL

Number Designation Model 166 Model 292
BA46.10-P-1003-02G Screw, mounting plate/contact plate to steering wheel Nm 7 7
STEERING WHEEL

Number Designation Model 172 Model 231
BA46.10-P-1006-02A Screw, mounting plate/contact plate to steering wheel Nm 7 7
STEERING WHEEL

Number Designation Model 463 as of model year 2019 Model 463 up to model year 2019
BA46.10-P-1006-02A Screw, mounting plate/contact plate to steering wheel Nm 7
