Check And Replace Steering Rack Bellows/Rubber Boot - AR46.40-P-0400LW
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205
Model 213
Model 238
Model 253
Model 293

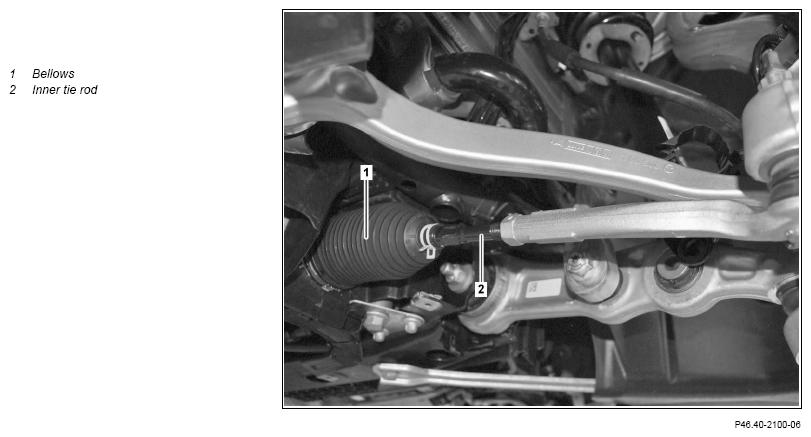

Shown on model 205, left side of vehicle
| Check | |||
| 1 | Raise vehicle. | AR00.60-P-1006A | |
| 2 | Stretch boot (1) by turning steering to maximum steering angle and check for damage (cracks, holes, chafe marks and indentations). | Do not check the boot (1) by pressing in or around the raised bead. Otherwise damage and leakages may occur. If damage is present ↓ Replace boot (1). |
AR46.40-P-9998LW |
| 3 | Lower vehicle. | AR00.60-P-1006A |
