Adjust Play Between Thrust Piece And Toothed Rack - AR46.20-P-0601-03LWE

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 166, 218, 253, 292

Model 204, 212

with code 211 (Direct-Steer system)

Model 205, 213, 217, 222, 238

with code M005 (Vehicles with 4MATIC/all-wheel drive)

Model 290

  Notes on safety-relevant components   AH00.00-Z-0019-01A
MODIFICATION NOTES

12.07.2018 Clearance between thrust block and rack   BE46.20-P-1001-01E
12.07.2018 Clearance between thrust block and rack Model 212 with code 211 (Direct-Steer system) BE46.20-P-1001-01C
20.08.2018 Rack and pinion Model 212 (except 212.067/08/090/091/093/094/097/099/267/28/291/293/294/297/299) with Code 211 (Direct steering) BA46.20-P-1008-01N
20.08.2018 Rack and pinion Model 218 (except 218.367/368/391/393/394/967/968/991/993/994) BA46.20-P-1008-01N
20.08.2018 Rack and pinion Model 218.367/368/391/393/394/967/968/991/993/994 BA46.20-P-1008-01N
20.08.2018 Rack and pinion Model 204 (except 204.08/09/28/29/38/904/937/98/99) with Code 211 (Direct steering) BA46.20-P-1008-01N
TEST VALUES FOR STEERING GEAR

Number Designation Model 212 with code 211 (Direct-Steer system)
BE46.20-P-1001-01C Play between thrust piece and steering rack mm 0, 02...0, 03
TEST VALUES FOR STEERING GEAR

Number Designation Model 204 with code 211 (Direct-Steer system)
BE46.20-P-1001-01E Play between thrust piece and steering rack mm 0, 02...0, 03
TEST VALUES FOR STEERING GEAR

Number Designation Model 166, 218, 253, 292, 293 Model 205, 213, 217, 222, 238 with code M005 (Vehicles with 4MATIC/all-wheel drive) Model 257, 290
BE46.20-P-1001-01F Play between thrust piece and steering rack mm 0, 02...0, 03 0, 005...0, 01
STEERING GEAR

Number Designation Model 166 Model 292
BA46.20-P-1004-01O Toothed rack Test torque Nm 12 12
STEERING GEAR

Number Designation Model 205, 213, 238, 257 with code M005 (Vehicles with 4MATIC/all-wheel drive) Model 253
BA46.20-P-1004-01Q Toothed rack Test torque Nm 12 12
STEERING GEAR

Number Designation Model 290
BA46.20-P-1004-01Q Toothed rack Test torque Nm 20
STEERING GEAR

Number Designation Model 217, 222 (except 222.150) with code M005 (Vehicles with 4MATIC/all-wheel drive)
BA46.20-P-1007-01P Toothed rack Test torque Nm 12
STEERING GEAR

Number Designation Model 204 (except 204.08/09/28/29/38/904/937/98/99) with code 211 (Direct-Steer system) Model 212 (except 212.067/08/090/091/093/094/097/099/267/28/291/293/294/297/299) with code 211 (Direct-Steer system)
BA46.20-P-1008-01N Toothed rack Test torque Nm 20 20
STEERING GEAR

Number Designation Model 218 (except 218.367/368/391/393/394/967/968/991/993/994) Model 218.367/368/391/393/394/967/968/991/9 93/994
BA46.20-P-1008-01N Toothed rack Test torque Nm 12 12
Fig 1: Identifying Open End Wrench (201 589 00 01 00)
G14138947Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Dial Gauge (001 589 53 21 00)
G14138948Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Bracket (212 589 01 31 00)
G14138949Courtesy of MERCEDES-BENZ USA
G12819855Courtesy of MERCEDES-BENZ USA

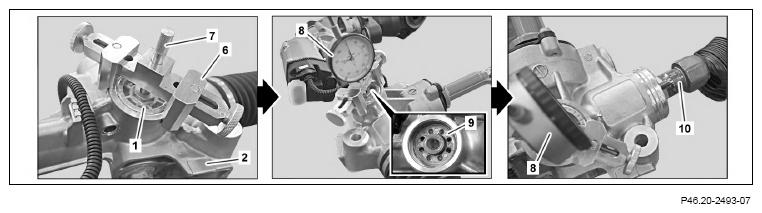

  1. Attach SPECIAL TOOL holder (6) to steering gear housing (2) with centering pin (7).
  2. Remove centering pin (7) from holder (6).
  3. SPECIAL TOOL Insert dial indicator (8) into SPECIAL TOOL holder (6) over adjustment screw (1) and place measuring tip on thrust piece (9).
  4. Measure play between thrust piece (9) and toothed rack (10) by moving toothed rack (10) back and forth with SPECIAL TOOL open-end wrench and note down. Model 205, 213, 238 with code M005 (Vehicles with 4MATIC/all-wheel drive)

    Model 253

    Model 290

    TORQUE SPECIFICATION Model 217, 222 (except 222.150)

    with code M005 (Vehicles with 4MATIC/all-wheel drive)

    TORQUE SPECIFICATION Model 166

    Model 292

    TORQUE SPECIFICATION Model 204 (except 204.08/09/28/29/38/904/937/98/99)

    with code 211 (Direct-Steer system)

    Model 212 (except 212.067/08/090/091/093/094/097/099/267/28/291/293/294/297/299)

    with code 211 (Direct-Steer system)

    Model 218 (except 218.367/368/391/393/394/967/968/991/993/994)

    Model 218.367/368/391/393/394/967/968/991/993/994

    TORQUE SPECIFICATION Model 166, 218, 253, 290, 292

    Model 205, 213, 217, 222, 238

    with code M005 (Vehicles with 4MATIC/all-wheel drive)

    Model 212

    with code 211 (Direct-Steer system)

    Model 204

    with code 211 (Direct-Steer system)

    NOTES The specified test torque of the toothed rack (10) must not be exceeded.

    Otherwise it is not possible to check the play correctly.

  5. SPECIAL TOOL Detach holder (6) and SPECIAL TOOL dial indicator (8) from steering gear housing (2).
