Overview Of System Components Of Electric Power Steering (ES) - GF46.35-P-9997RF
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205, 253

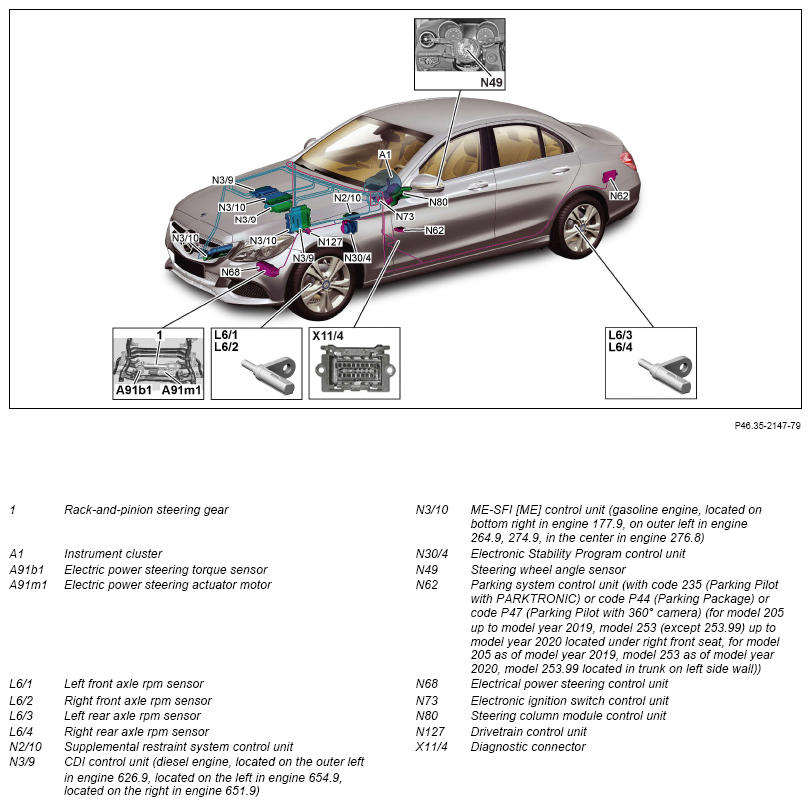

Shown on model 205.0
| Component description for instrument cluster | A1 | GF54.30-P-6000RF | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080RF | |
| Component description for CDI control unit | Model 205 with engine 626 N3/9 | GF07.16-P-6000ORB | |
| Model 205 012/212 with engine 651 9 N3/9 | GF07.16-P-6000OLC | ||
| Model 205 (except 205 012/212) 253 with engine 651 9 with code 494 (US version) N3/9 | GF07.16-P-6000OLD | ||
| Model 205 (except 205 012/212) with engine 651 except code 494 (US version) N3/9 | GF07.16-P-6000OLE | ||
| Model 253 with engine 642 8 N3/9 | GF07.16-P-6000OGY | ||
| Model 205 (except 205.013/213), 253 (except 253.311/911) with engine 654.9 Model 253 with engine 656.9 N3/9 |
GF07.16-P-6000ORF | ||
| Model 205.013/213, 253.311/911 with engine 654.9 N3/9 |
GF07.16-P-6000ORH | ||
| Component description for ME-SFI (ME) control unit | Model 205 with engine 177.9 N3/10 | GF07.61-P-6000MNA | |
| Model 205 (except 205.047/053/054/147/247/253), 253 (except 253.353/354/953/954) with engine 274.9 N3/10 | GF07.61-P-6000MRA | ||
| Model 205 with engine 276.8 N3/10 | GF07.61-P-6000MMV | ||
| Model 205.047/053/054/147/247/253 with engine 274.9 Model 253.353/354/953/954 with engine 274.9 N3/10 |
GF07.61-P-6000MRH | ||
| Model 205, 253 with engine 264.9 N3/10 | GF07.61-P-6000MRS | ||
| Component description for Electronic Stability Program control unit | Model 205 (except 205.012/013/047/053/054/147/212/213/247/253), 253 (except 253.353/354/953/954/99) N30/4 |
GF42.45-P-5119RF | |
| Model 205.012/013/047/053/054/147/212/213/247/253, 253.353/354/953/954/99 N30/4 |
GF42.45-P-5119RFH | ||
| Parking system control unit component description | Model 205 up to model year 2019 with code 235 (Active Parking Assist) Model 253 (except 253.99) up to model year 2020 with code 235 (Active Parking Assist) N62 |
GF54.65-P-5002RF | |
| Parking system control unit, component description | Model 205 as of model year 2019 with code P44 (Parking package) Model 205 as of model year 2019 with code P47 (Parking Pilot with 360° camera) Model 253 (except 253.99) as of model year 2020 with code P44 (Parking package) Model 253 (except 253.99) as of model year 2020 with code P47 (Parking Pilot with 360° camera) Model 253.99 with code P47 (Parking Pilot with 360° camera) N62 |
GF54.65-P-5004RFM | |
| Electrical power steering control unit (ES), component description | N68 | GF46.35-P-7010RF | |
| Component description for the electronic ignition lock control unit | Model 205 up to model year 2019 Model 253 (except 253.99) up to model year 2020 N73 |
GF80.57-P-6001RF | |
| Model 205 as of model year 2019 Model 253 (except 253.99) as of model year 2020 Model 253.99 N73 |
GF80.57-P-6001RFM | ||
| Component description for steering column tube module control unit | Model 205 up to model year 2019 Model 253 (except 253.99) up to model year 2020 N80 |
GF54.21-P-6051RF | |
| Model 205 as of model year 2019 Model 253 (except 253.99) as of model year 2020 Model 253.99 N80 |
GF54.21-P-6051RFM | ||
| Drivetrain control unit, component description | Model 205, 253 with engine 177.9 N127 |
GF54.21-P-2141MNA | |
| Model 205 (except 205.047/053/054/147/247/253), 253 (except 253.353/354/953/954) with engine 274.9 N127 |
GF54.21-P-2141MRA | ||
| Model 205.047/053/054/147/247/253, 253.353/354/953/954 with engine 274.9 N127 | GF54.21-P-2141MRH | ||
| Model 205, 253 with engine 264.9 N127 | GF54.21-P-2141MRS | ||
| Model 205.012/212 with engine 651.9 N127 | GF54.21-P-2141OLC | ||
| Model 205 (except 205.012/212), 253 with engine 651.9 N127 |
GF54.21-P-2141OLD | ||
| Model 205 with engine 626 N127 | GF54.21-P-2141ORB | ||
| Model 205, 253 with engine 654.9 Model 253 with engine 656.9 N127 |
GF54.21-P-2141ORH | ||
| Model 205, 253 with engine 276.8 N127 | GF54.21-P-2141RF | ||
| Contents, function description of electric power steering (ES) | GF46.35-P-0999RF |
