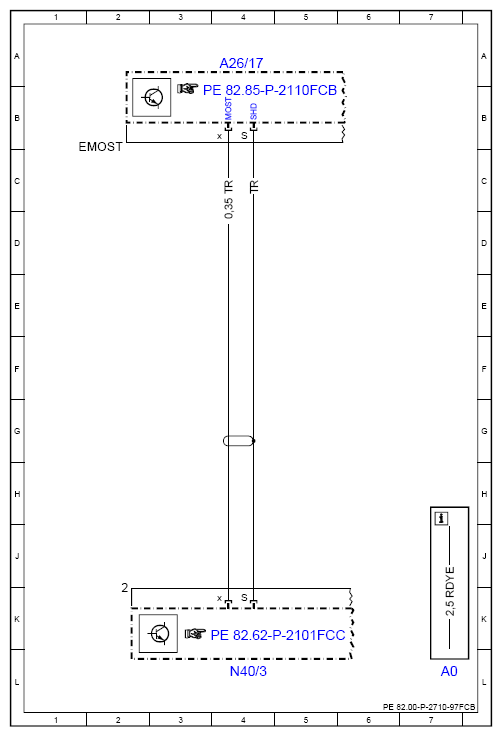

Wiring Diagram Of Most Bus - PE82.00-P-2710-97FCB

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 253 (except 253.99) as of model year 2020

Code: Designation: Position:
A0 Use of wiring diagrams 7L
A26/17 Head unit 4A
N40/3 Sound system amplifier control unit 4L
G14475029Courtesy of MERCEDES-BENZ USA
