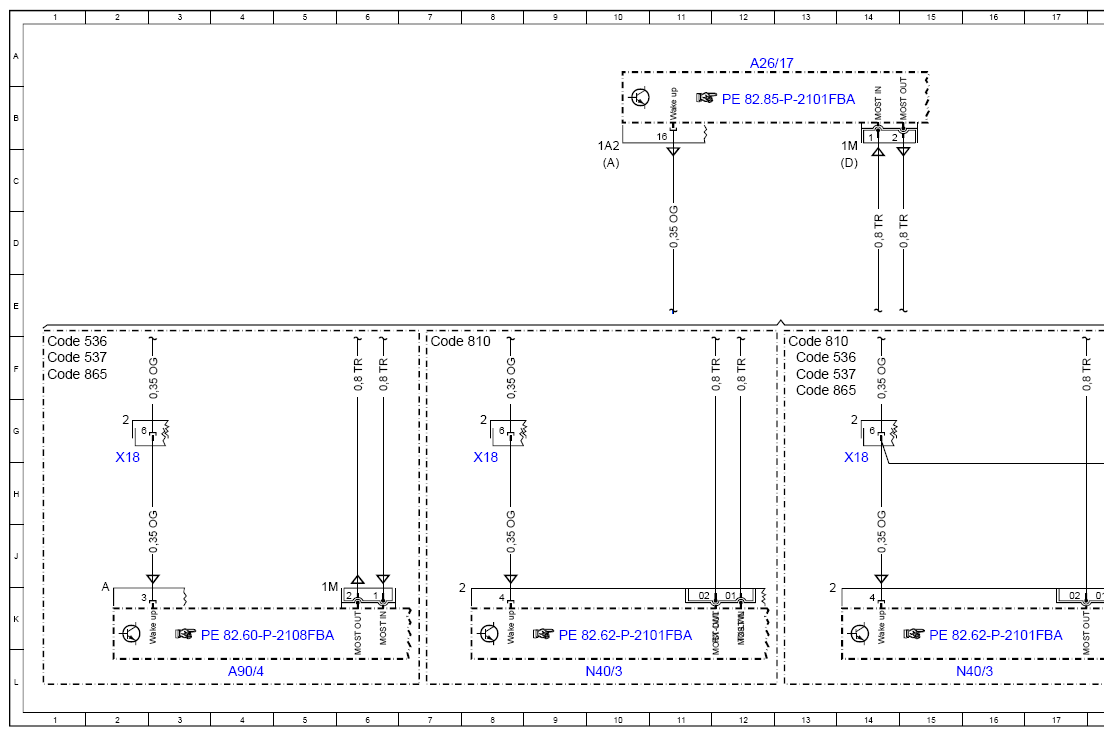

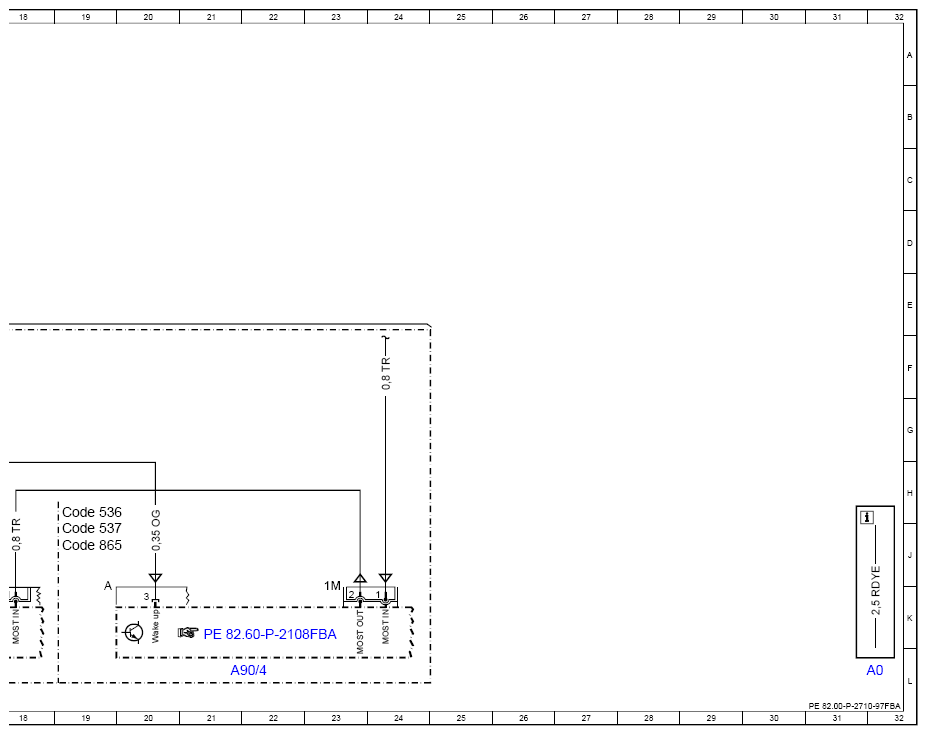

Wiring Diagram Of Most Bus - PE82.00-P-2710-97FBA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205 up to model year 2019
Model 253 (except 253.99) up to model year 2020
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| A26/17 | Head unit | 12A |
| A90/4 | Tuner unit | 4L |
| A90/4 | Tuner unit | 21L |
| Code 536 | SIRIUS satellite radio | 1F |
| Code 536 | SIRIUS satellite radio | 13F |
| Code 536 | SIRIUS satellite radio | 19H |
| Code 537 | Digital radio (DAB) | 13F |
| Code 537 | Digital radio (DAB) | 1F |
| Code 537 | Digital radio (DAB) | 19J |
| Code 810 | Sound system | 7F |
| Code 810 | Sound system | 13F |
| Code 865 | TV tuner | 1F |
| Code 865 | TV tuner | 13F |
| Code 865 | TV tuner | 19J |
| N40/3 | Sound system amplifier control unit | 10L |
| N40/3 | Sound system amplifier control unit | 16L |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 2H |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 8H |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 14H |
