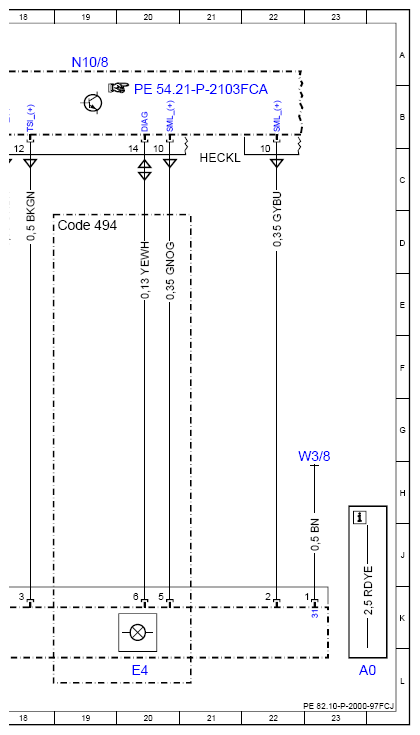

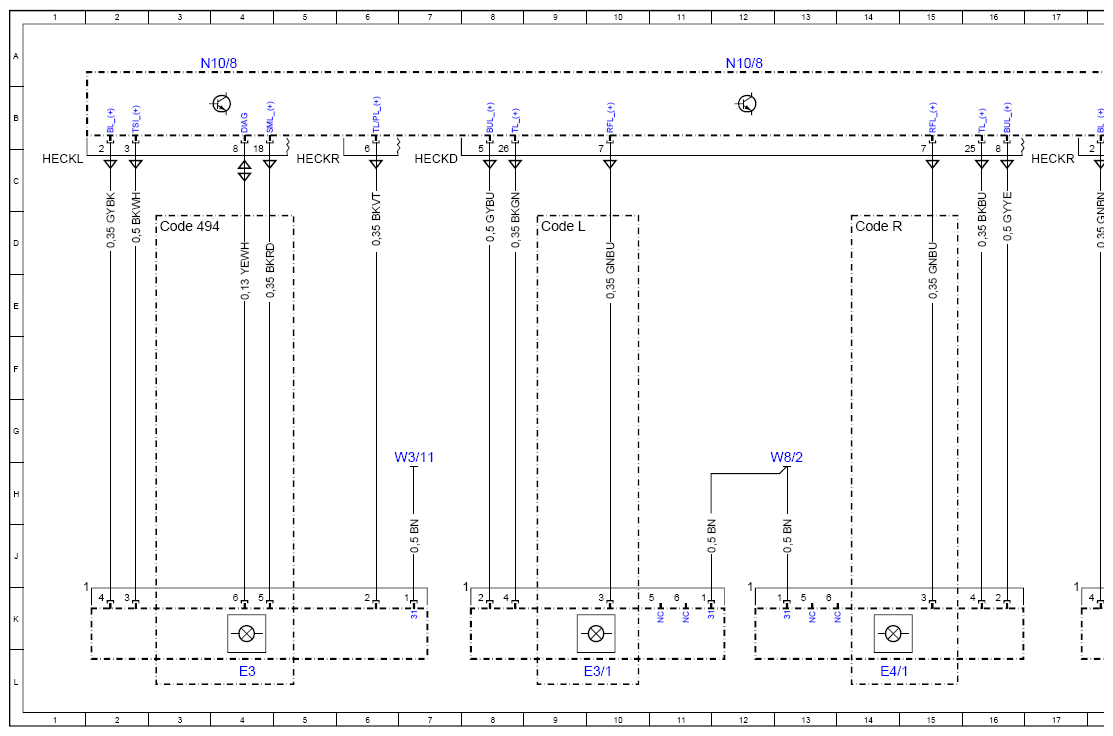

Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97FCJ
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.99) as of model year 2020
except code 631 (Static LED headlamps, left-hand traffic)
except code 632 (Headlamps, LED, static, right-side traffic)
except code 640 (High-performance LED)
except code 641 (Dynamic LED headlamps,
except code 642 (LED Intelligent Light System)
E3, E3/1, E4, E4/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |
| Code 494 | USA version | 3D |
| Code 494 | USA version | 19D |
| Code L | LEFT-HAND DRIVE | 9D |
| Code R | RIGHT-HAND DRIVE | 14D |
| E3 | Left rear lamp unit | 4L |
| E3/1 | Inner left rear lamp unit | 10L |
| E4 | Right rear lamp unit | 20L |
| E4/1 | Inner right rear lamp unit | 14L |
| N10/8 | Rear SAM control unit | 3A |
| N10/8 | Rear SAM control unit | 12A |
| N10/8 | Rear SAM control unit | 19A |
| W3/11 | Left rear wheel well ground point | 7H |
| W3/8 | Right rear wheel well ground point | 23H |
| W8/2 | Right tailgate ground point | 13H |
