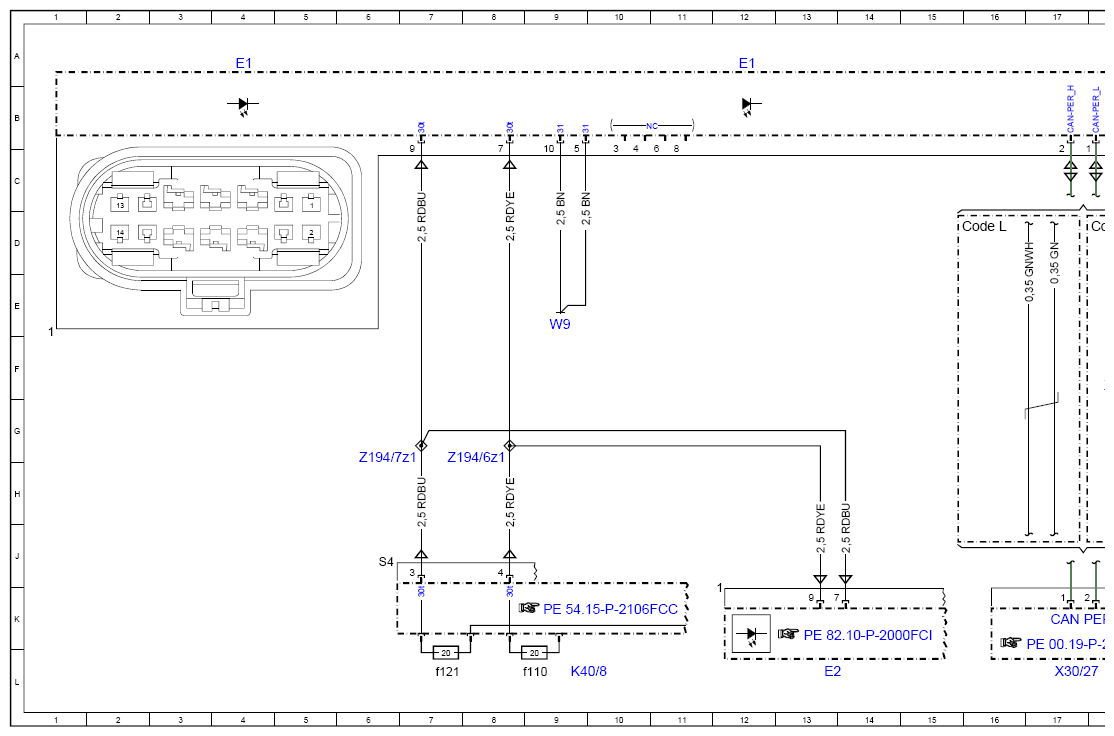

Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97FCG
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.99) as of model year 2020
with code 640 (High-performance LED)
with code 641 (Dynamic LED headlamps, left-hand traffic)
with code 642 (LED Intelligent Light System)
except code 631 (Static LED headlamps, left-hand traffic)
except code 632 (Headlamps, LED, static, right-side traffic)
E1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 48L |

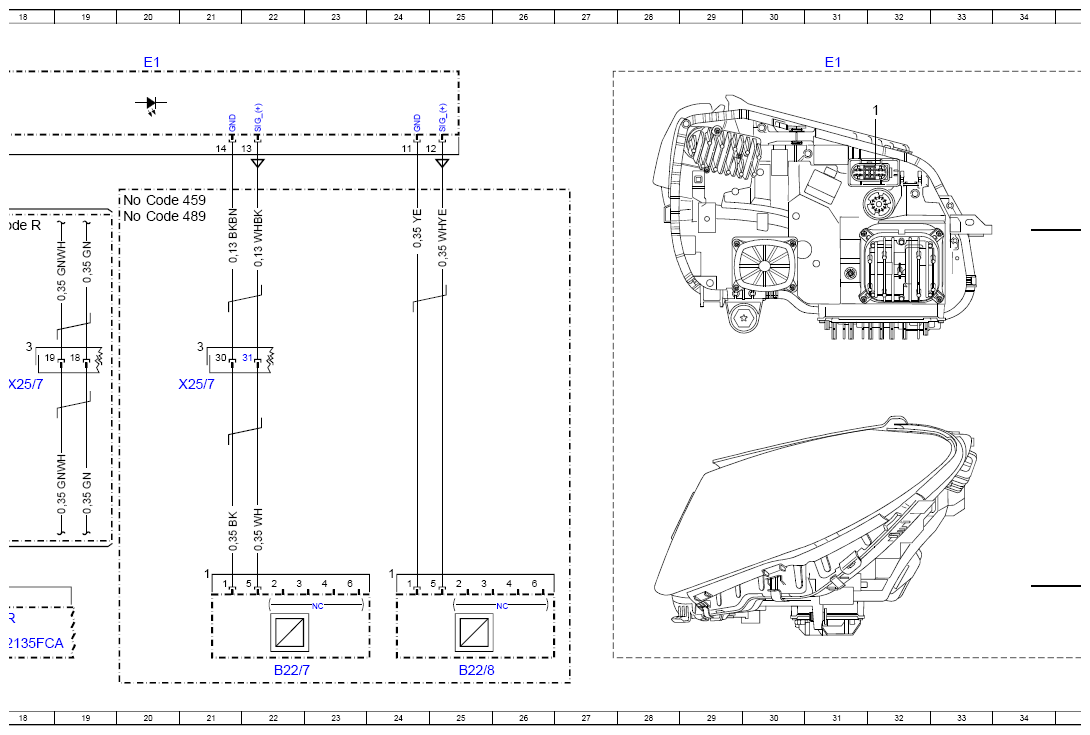

| B22/7 | Left rear level sensor | 22L |
| B22/8 | Left front level sensor | 25L |
| CAN PER | Peripherals CAN | 17K |
| Code 459 | Steel suspension with adjustable damping | 20C |
| Code 489 | AIR BODY CONTROL | 20D |
| Code L | LEFT-HAND DRIVE | 15D |
| Code R | RIGHT-HAND DRIVE | 18D |

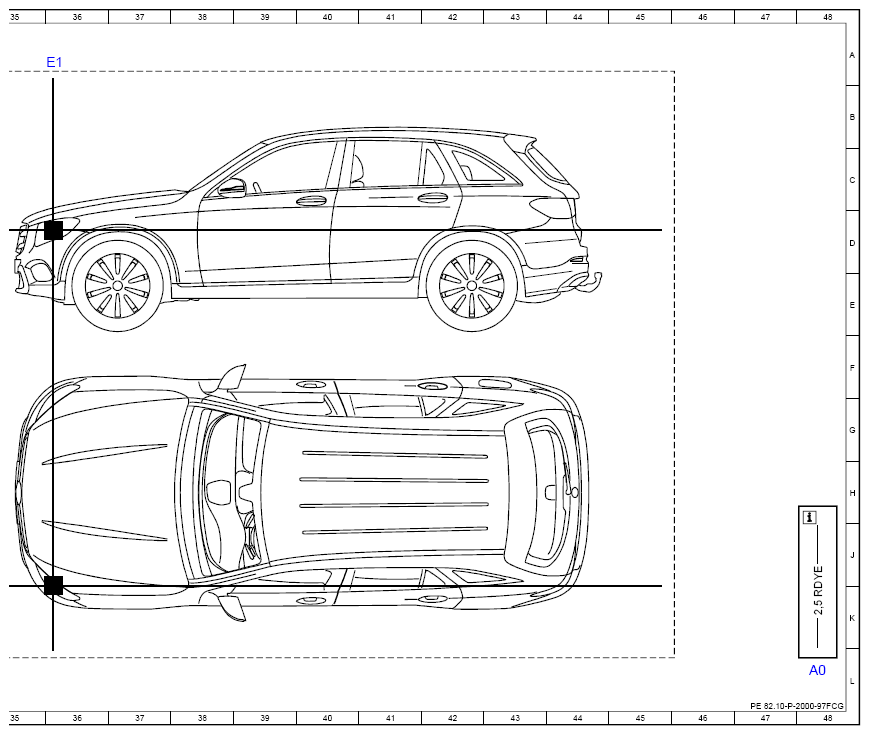

| E1 | Left front lamp unit | 4A |
| E1 | Left front lamp unit | 12A |
| E1 | Left front lamp unit | 20A |
| E1 | Left front lamp unit | 31A |
| E1 | Left front lamp unit | 36A |
| E2 | Right front lamp unit | 13L |
| K40/8 | Engine fuse and relay module | 9L |
| K40/8f110 | Fuse 110 | 9L |
| K40/8f111 | Fuse 111 | 7L |
| W9 | Left front ground point (at lamp unit) | 9E |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 18F |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 21F |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 17L |
| Z194/6z1 | Left position lamp connector sleeve | 8G |
| Z194/7z1 | Right position lamp connector sleeve | 6G |
